Product features
1 / 2

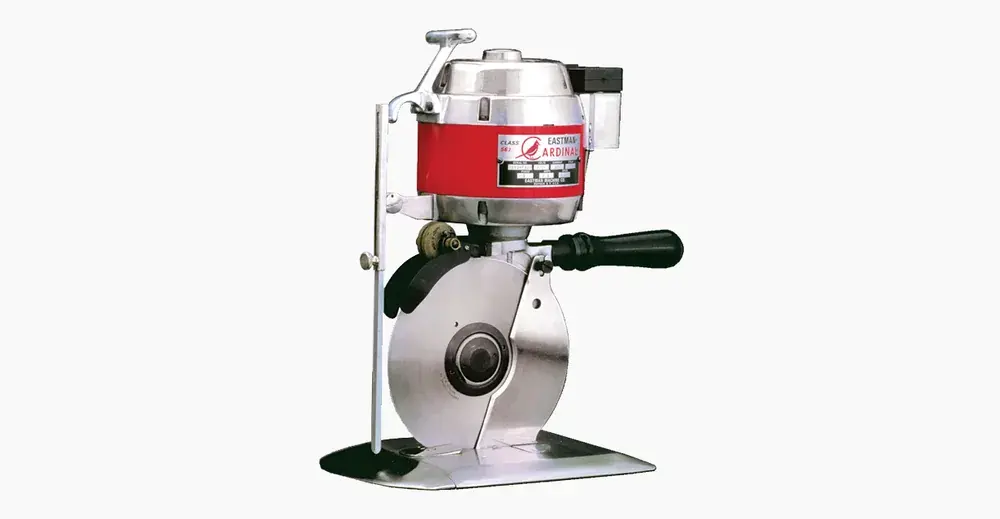

MODEL 562 – The Heavy Duty Cardinal offers a heavy-duty motor to provide increased torque and blade speed making it ideal for most general-purpose cutting of canvas, burlap, cotton, cotton batting, woolens, and knits.
The Heavy Duty Cardinal® offers a heavy duty motor to provide increased torque and blade speed making it ideal for most general purpose cutting of canvas, burlap, cotton, cotton backing, woolens, and knits.
All Eastman machines are made with the highest quality materials available.
Heavy-duty motor with increased torque and cutting capacity

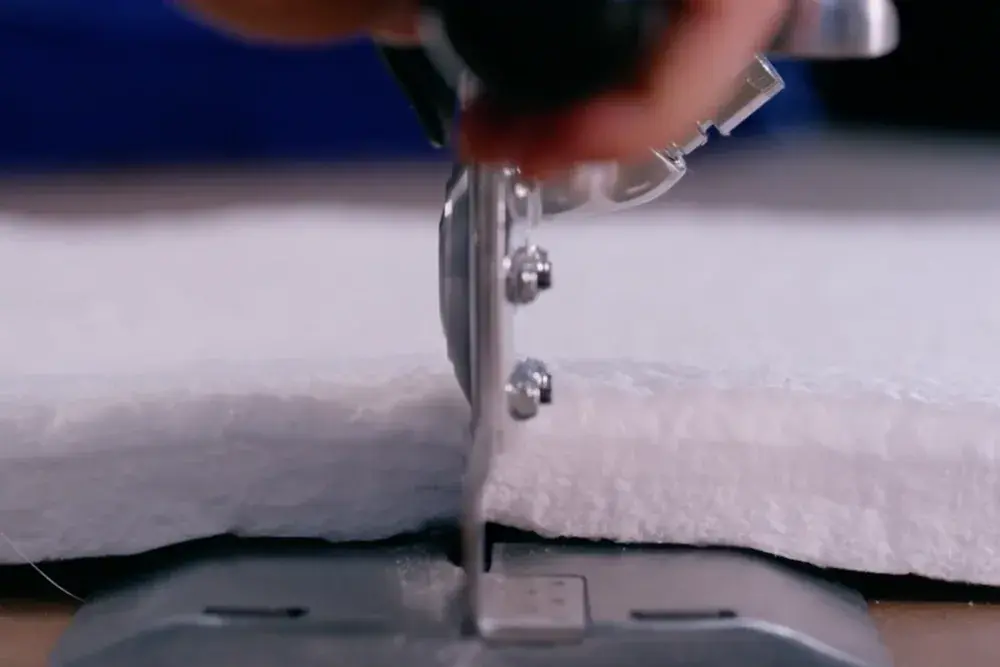

Ideal for general purpose cutting of flexible goods such as industrial-grade materials and composites
Blades are available in carbon steel, high speed steel, slotted, grooved and PTFE coated
Specifications
| Motors | 110V, 1ph, 50/60Hz 220V, 1ph, 50/60Hz 380v, 3ph, 50/60Hz High speed (3600/3000 RPM) Low speed (1800/1500 RPM) |
|---|---|
| Horsepower | 0.65hp, 1ph 0.93hp, 3ph |
| Weight | 30 lbs. (13.6kg) |
| Blades | Standard: Carbon Steel Optional: High Speed Steel, Slotted, Grooved, PTFE Coated |
| Sharpener Stones | Standard: 120 Heavy Optional: 150 Medium, 220 Fine |
| Options | Knife lubricator, stationary base plate |
| Blade Size | 6 in. (15.2 cm) 7.5 in. (19.1 cm) |
| Cutting Capacity | 3.25 in. (8.26cm) 4.75 in. (12.07cm) |
Catalogue
The Heavy-Duty Cardinal® documents Eastman Machine publishes, on their own site. They open in a new tab.
Open the catalogue · Manual Cutting Brochure (PDF)Open the catalogue · Cardinal Instruction Manual & Parts List (PDF)
The file is published and updated by the manufacturer; it is not copied here, so nobody downloads an outdated version.
