Eastman Machine
Standard Slitting Machine
Round knife
Product features
1 / 2

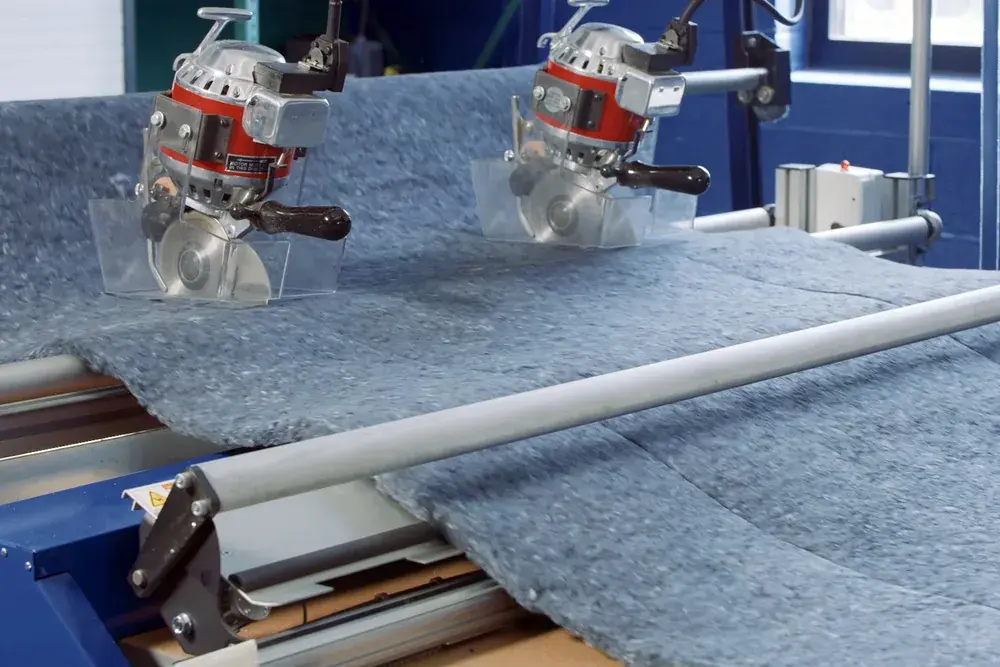

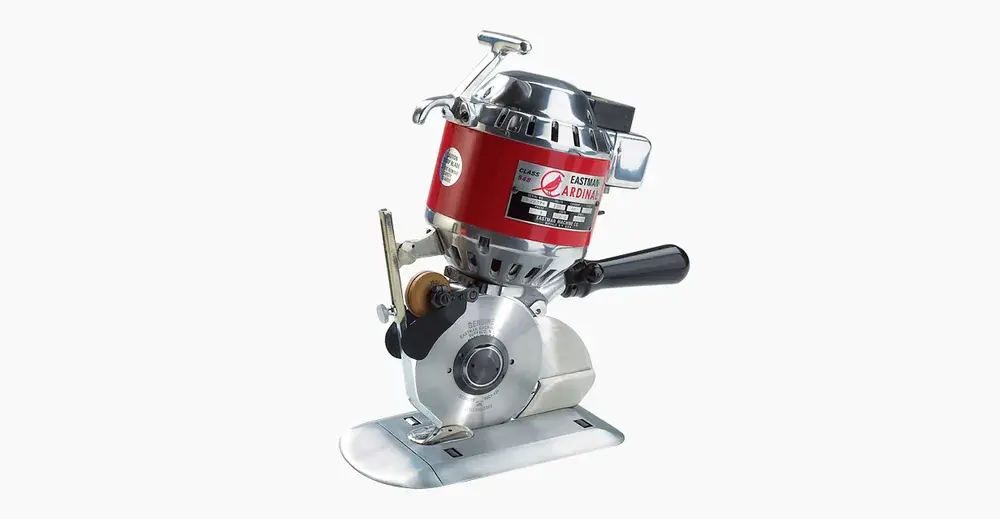

MODEL 548BK – Suitable for most slitting applications, the 548BK Cardinal® is mounted in a stationary position where the fabric moves past the blade. The standard narrow profile allows for clean slitting and snag-free material flow.
Suitable for most slitting applications, the 548BK Cardinal is mounted in a stationary position where the fabric moves past the blade.
The BK machines can be equipped with a standard roller base plate or with mounting brackets that allow the machine to be mounted for overhead support.
All Eastman machines are built with the highest quality materials available.
May be mounted in a stationary position, on a frame or with a standard baseplate for slitting
Narrow profile allows for clean slitting and snag-free material flow
Specifications
| Motors | 110V, 1ph, 50/60Hz 220V, 1ph or 3ph, 50/60Hz |
|---|---|
| Horsepower | 0.34hp, 1ph 0.48hp, 3ph |
| Weight | 22 lbs. (9.98kg) |
| Blades | Standard: Carbon Steel Optional: High Speed Steel, Grooved, PTFE Coated, Slotted |
| Options | Knife lubricator, long handle, stationary base plate |
| Blade Size | 5 in. (12.7 cm) |
| Cutting Capacity | 1 in. (2.54cm) |
Catalogue
The Standard Slitting Machine documents Eastman Machine publishes, on their own site. They open in a new tab.
Open the catalogue · Standard Slitting Machine Brochure (PDF)Open the catalogue · Cardinal Instruction Manual & Parts List (PDF)
The file is published and updated by the manufacturer; it is not copied here, so nobody downloads an outdated version.
Product information, photographs and specifications: Eastman Machine. No prices or stock here: ask us and we will get back to you.
Tell us the operation you need to solve and we will reply with the right configuration and the lead time.
