Product features
1 / 2

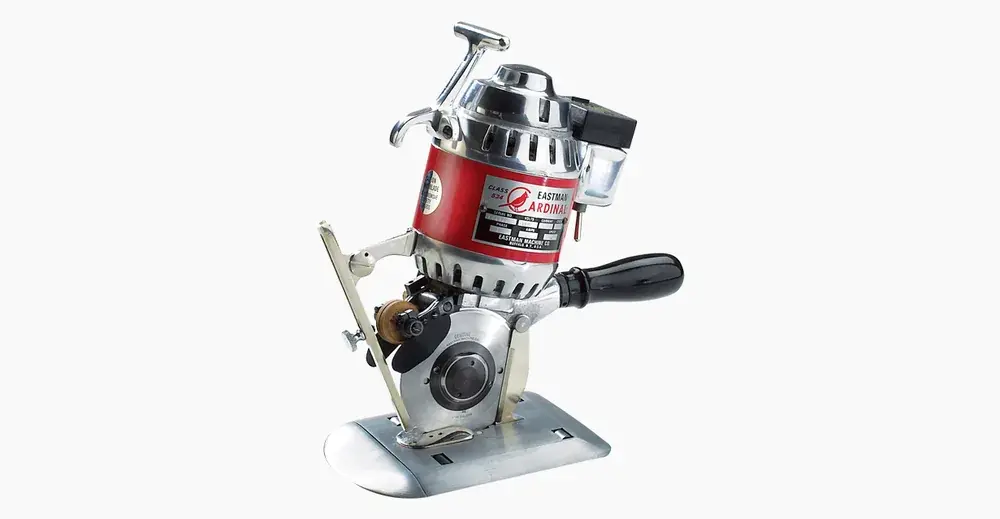

MODEL 534 – Eastman’s lightweight model 534 Cardinal provides lightweight maneuverability with more than enough power to cut low lays of wool, cotton, silk, and synthetics.
Eastman’s lightweight model 534 Cardinal® provides lightweight maneuverability with more than enough power to cut low lays of wool, cotton, silk and synthetics.
Like all Eastman round knives, the Lighweight Cardinal® is perfect for cutting large radius curves and straight lines.
All Eastman machines are built with the highest grade materials.
The smallest round knife machine
Lightweight maneuverability with power for cutting low plies
Great for wool, cotton, silk, synthetics and various technical textiles
Specifications
| Motors | 110V, 1ph, 50/60Hz 220V, 1ph, 50/60Hz |
|---|---|
| Horsepower | 0.20hp, 1ph 0.34hp, 3ph High speed (3600/3000 RPM) |
| Weight | 16 lbs. (7.26kg) |
| Blades | Standard: Carbon Steel Optional: High Speed Steel, Grooved, PTFE Coated |
| Sharpener Stones | Standard: 120 Heavy Optional: 150 Medium, 220 Fine |
| Options | Knife lubricator, stationary base plate |
| Blade Size | 4 in. (10.2cm) |
| Cutting Capacity | 2.125 in. (5.4cm) |
