Product features
1 / 2

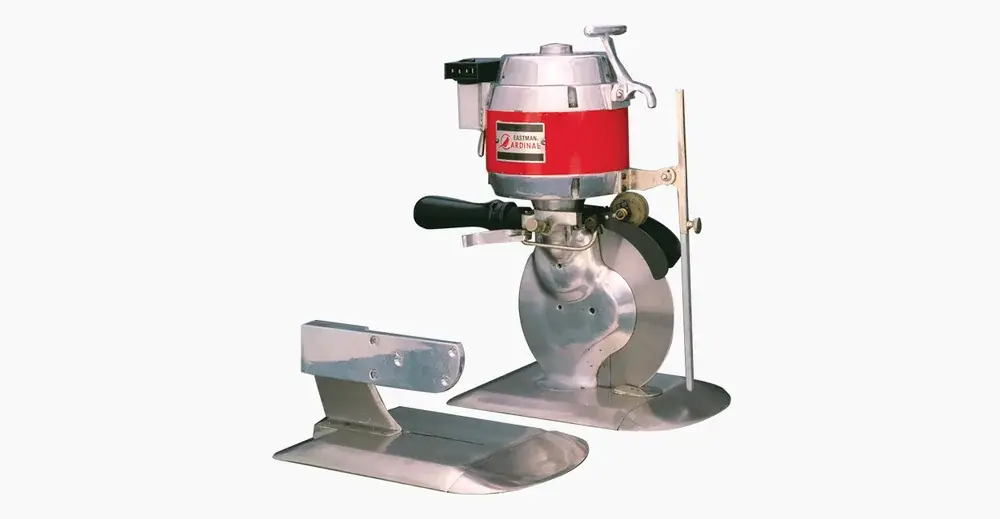

MODEL / 567BK – Easily cut through high durometer rubber as well as plastic sheeting and dense fabrics that require a more powerful motor and greater height capacity. This machine may be supplied with a high speed, low speed, or dual-speed motor for the broadest range of applications.
The Heavy Duty and Super Duty round knife machines can easily cut through up to eighty durometer rubber as well as plastic sheeting and dense fabrics that require a stronger motor and greater height capacity.
Each of these special Cardinal® round knife machines may be supplied with a high speed, low speed, or dual speed motor for the broadest range of applications. Both models may be fitted with an optional Plastic Master lubricator.
All Eastman machines are manufactured with the highest grade materials.
Designed to easily cut through high durometer rubber, plastic sheeting and dense, flexible materials
Has a powerful motor and additional cutting capacity
Specifications
| Motors | 110V, 1ph, 50/60Hz 220V, 1ph or 3ph, 50/60Hz 380v, 3ph, 50Hz |
|---|---|
| Horsepower | 562: 0.65hp, 1ph, 0.93hp, 3ph 567: 1.25hp, 1ph, 2.2hp, 3ph |
| Weight | 562: 30lbs. (13.6kg) 567: 36lbs. (16.3kg) |
| Weight with Strip Gauge | 562: 40 lbs. (18.24 kg) 567: 46 lbs. (20.98 kg) |
| Blades | Standard: Carbon Steel Optional: High Speed Steel, Grooved, PTFE Coated, Slotted |
| Options | Knife lubricator, strip gauge, long handle, stationary base plate |
| Blade Size | 7.5 in. (19.1 cm) |
| Cutting Capacity | 2 in. (5.08cm) |
Catalogue
The Super Duty Slitting Machine documents Eastman Machine publishes, on their own site. They open in a new tab.
Open the catalogue · Super Duty Slitting Machine Brochure (PDF)Open the catalogue · Cardinal Instruction Manual & Parts List (PDF)
The file is published and updated by the manufacturer; it is not copied here, so nobody downloads an outdated version.
Product information, photographs and specifications: Eastman Machine. No prices or stock here: ask us and we will get back to you.
Tell us the operation you need to solve and we will reply with the right configuration and the lead time.
