Eastman Machine
Round Knife Plastic Master
Round knife
Product features
1 / 2

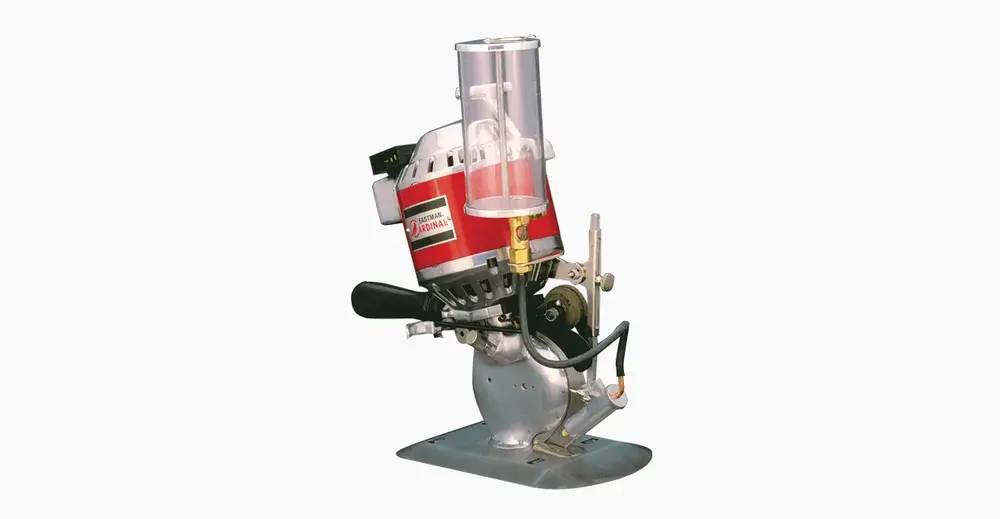

MODEL 548PM – Cut plastic and other fusible materials, such as PVC, vinyl, and reinforced plastics in intricate patterns or straight lines without fusing.
Attachment available for all Cardinal Round Knives
Plastic Master Cooling/Moistening device plus a special notched blade reduce friction and heat to eliminate fusing of temperature sensitive materials
Specifications
| Motors | 110V, 1ph, 50/60Hz 220V, 1ph or 3ph, 50/60Hz |
|---|---|
| Horsepower | .34hp, 1ph .48hp, 3ph |
| Weight | 21 lbs. (9.52kg) |
| Blades | Notched |

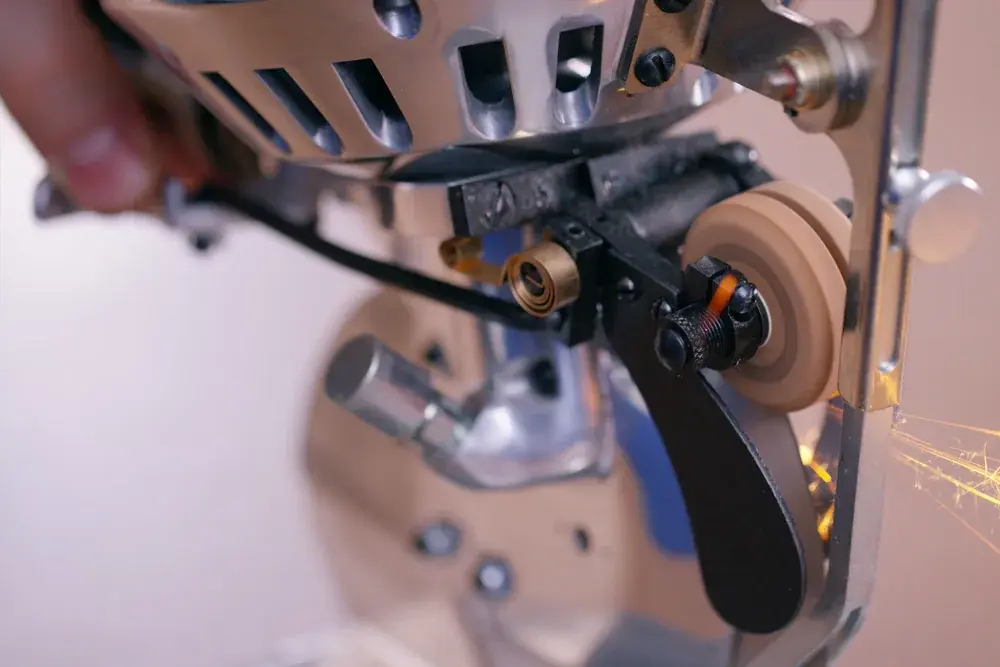

| Sharpener Stones | Standard: 120 Heavy Optional: 150 Medium, 220 Fine |
| Options | Knife lubricator, stationary base plate |
Catalogue
The Round Knife Plastic Master documents Eastman Machine publishes, on their own site. They open in a new tab.
Open the catalogue · Manual Cutting Brochure (PDF)Open the catalogue · Cardinal Round Knife Instruction Manual & Parts List (PDF)
The file is published and updated by the manufacturer; it is not copied here, so nobody downloads an outdated version.
Product information, photographs and specifications: Eastman Machine. No prices or stock here: ask us and we will get back to you.
Tell us the operation you need to solve and we will reply with the right configuration and the lead time.
