Product features
1 / 2

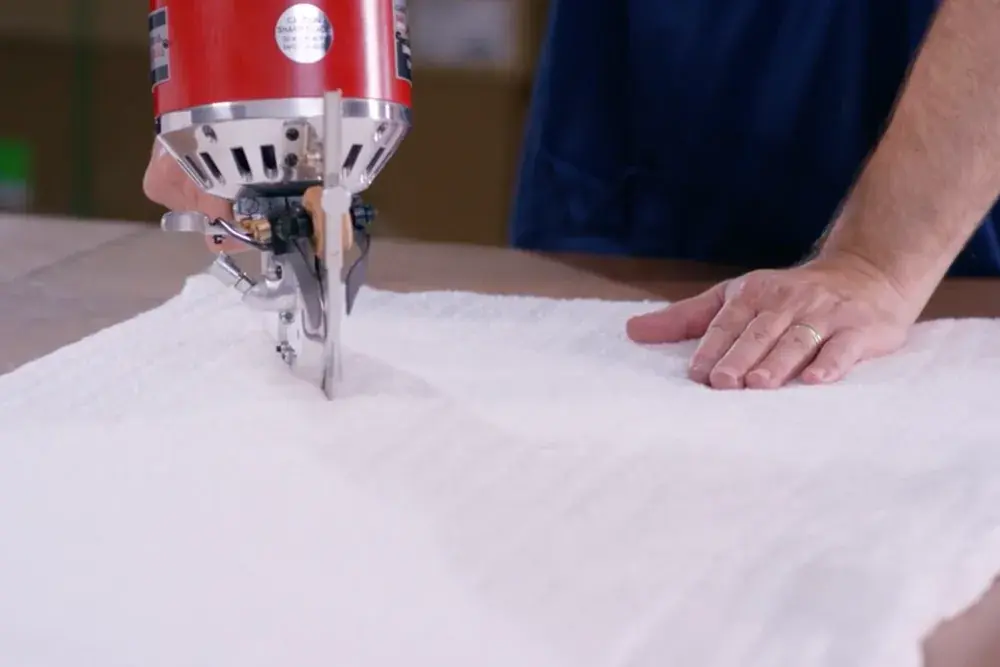

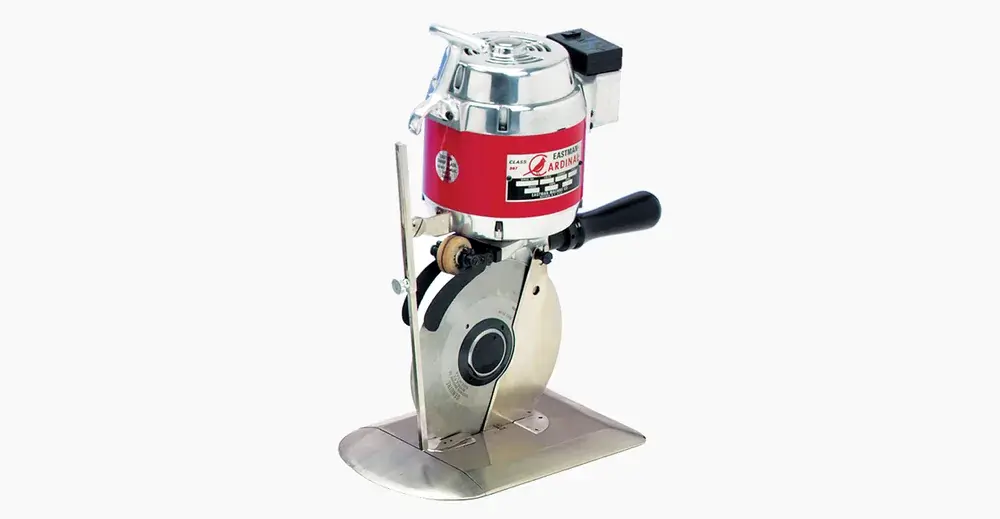

MODEL 567 – The Cardinal model 567, Eastman’s most powerful round knife, is equipped with the same 1.25 horsepower high-torque motor and utility as the Brute straight knife. A dual-speed option brings versatility to this powerhouse.
The Cardinal® model 567, Eastman’s most powerful round knife, is equipped with a 1.25 horsepower high-torque motor and utility as the Brute straight knife.
A dual speed option brings versatility to this powerhouse.
All Eastman cutting machines are built with the highest grade materials available.
Most powerful Eastman round knife
Optional dual speed offers added versatility by allowing the operator to cut long straight areas and gentle curves in high speed, switch to low speed for cutting tight turns and then switch back, without stopping
Specifications
| Motors | 110V, 1ph, 50/60Hz 220V, 1ph, 50/60Hz 380v, 3ph, 50/60Hz High speed (3600/3000 RPM) Low speed (1800/1500 RPM) |
|---|---|
| Horsepower | 1.25hp, 1ph 2.2hp, 3ph |
| Weight | 36 lbs. (16.3kg) |
| Blades | Standard: Carbon Steel Optional: High Speed Steel, Slotted, Grooved, PTFE Coated |
| Sharpener Stones | Standard: 120 Heavy Optional: 150 Medium, 220 Fine |
| Options | Knife lubricator, stationary base plate |
| Blade Size | 6 in. (15.2 cm) 7.5 in. (19.1 cm) |
| Cutting Capacity | 3.25 in. (8.26cm) 4.75 in. (12.07cm) |
