Product features
Customary needle designations: DPX5, 135X5, 135X7, 797, SY 1955, 245 SC, 20:05. Recommended for: Woven fabrics, Thin leather.
Customary needle designations
DPX5, 135X5, 135X7, 797, SY 1955, 245 SC, 20:05
Further point designations
SET, RD
Needle form description

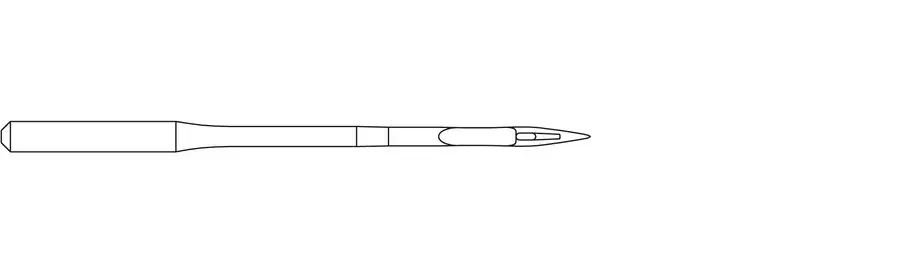

Straight needle with single groove and scarf
Technical sewing application
Double lock stitch
Recommended for
Woven fabrics, Thin leather
Specifications
| Needle system | 134, 134 FR, 134 K, 134 MR, 134 SAN 11, 134 SAN 5, 134 SAN 6 |
|---|---|
| Point style | FFG, FG, LR, R, RG, S |
| Needle size | 55 – 160 Nm |
| Coating | GEBEDUR™ |
| Technical sewing application | Double lock stitch |
| Stitch type class | 300 |
| Overall length | 36.9 – 39.3 mm |
| Shank length | 11 – 14 mm |
| Length butt to eye | 33.9 – 38.1 mm |
| Shank diameter | 2.0 mm |
Catalogue
Groz-Beckert does not publish a separate leaflet for the 134. Their catalogues cover the whole range and open in a new tab.
The file is published and updated by the manufacturer; it is not copied here, so nobody downloads an outdated version.
Data sheets, photos, videos and specifications: Groz-Beckert.
Tell us the operation you need to solve and we will reply with the right configuration and the lead time.
