Product features
Customary needle designations: 81X1, DCX27, DCX1, DMX1, RMX27, MY 1023, 82X1, UY 191 GS, SY 6120, 03:36. Recommended for: Fine knitwear, Woven fabrics, Thin leather.
Customary needle designations
81X1, DCX27, DCX1, DMX1, RMX27, MY 1023, 82X1, UY 191 GS, SY 6120, 03:36
Further point designations
STU, STUB, S BALL, SET RT, EH, H SET, NEW RD, R STU
Needle form description

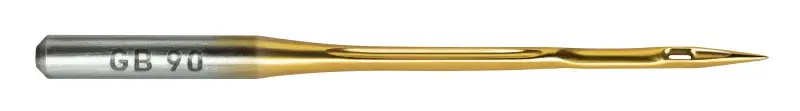

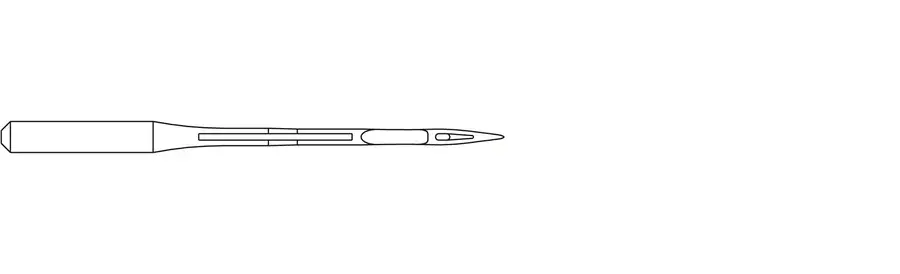

Straight needle with double groove and scarf
Technical sewing application
Overlock stitch
Recommended for
Fine knitwear, Woven fabrics, Thin leather
Specifications
| Needle system | B 27 |
|---|---|
| Point style | FFG, FG, RG |
| Needle size | 60 – 140 Nm |
| Coating | GEBEDUR™ |
| Technical sewing application | Overlock stitch |
| Stitch type class | 500 |
| Overall length | 33.1 mm |
| Shank length | 10 mm |
| Length butt to eye | 28.6 mm |
| Shank diameter | 2.0 mm |
Catalogue
Groz-Beckert does not publish a separate leaflet for the B 27. Their catalogues cover the whole range and open in a new tab.
The file is published and updated by the manufacturer; it is not copied here, so nobody downloads an outdated version.
Data sheets, photos, videos and specifications: Groz-Beckert.
Tell us the operation you need to solve and we will reply with the right configuration and the lead time.
