Product features
Customary needle designations: PFX34, 16X1, 16X73, 690, 287, TFX73. Recommended for: Medium-weight woven fabrics, Leather for clothing, Artificial leather.
Customary needle designations
PFX34, 16X1, 16X73, 690, 287, TFX73
Further point designations
SET, RD

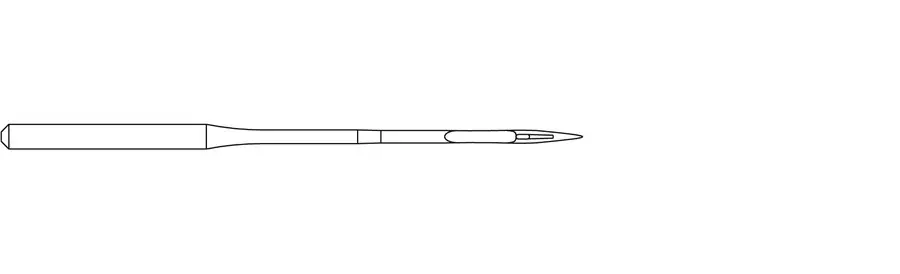

Needle form description
Straight needle with single groove and scarf
Technical sewing application
Double lock stitch
Recommended for
Medium-weight woven fabrics, Leather for clothing, Artificial leather
Specifications
| Needle system | 34 |
|---|---|
| Point style | R |
| Needle size | 100 Nm |
| Coating | GEBEDUR™ |
| Technical sewing application | Double lock stitch |
| Stitch type class | 300 |
| Length butt to eye | 33.9 mm |
| Shank diameter | 1.6 mm |
Catalogue
Groz-Beckert does not publish a separate leaflet for the 34. Their catalogues cover the whole range and open in a new tab.
The file is published and updated by the manufacturer; it is not copied here, so nobody downloads an outdated version.
Data sheets, photos, videos and specifications: Groz-Beckert.
Tell us the operation you need to solve and we will reply with the right configuration and the lead time.
