Product features
Customary needle designations: DBX287 WKH, 287 WK, 287 WKK, SY 6633, SY 6634, 13:22. Recommended for: Fine woven fabrics, Leather, Artificial leather.
Customary needle designations
DBX287 WKH, 287 WK, 287 WKK, SY 6633, SY 6634, 13:22
Further point designations
SET, RD

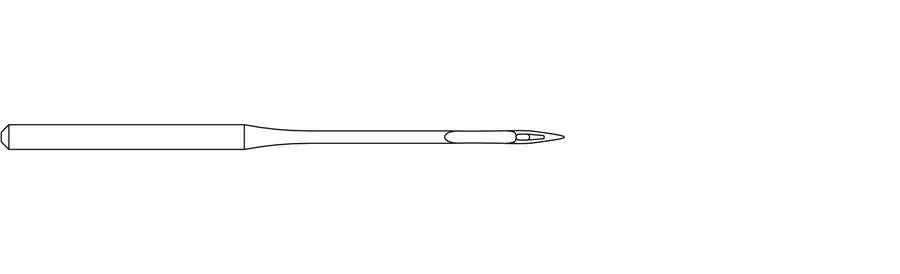

Needle form description
Straight needle with single groove and scarf
Technical sewing application
Single and multihead embroidery
Recommended for
Fine woven fabrics, Leather, Artificial leather
Specifications
| Needle system | 287 WKH |
|---|---|
| Point style | R |
| Needle size | 70 Nm |
| Coating | GEBEDUR™ |
| Technical sewing application | Single and multihead embroidery |
| Stitch type class | 300 |
| Length butt to eye | 33.9 mm |
| Shank diameter | 1.6 mm |
Catalogue
Groz-Beckert does not publish a separate leaflet for the 287. Their catalogues cover the whole range and open in a new tab.
The file is published and updated by the manufacturer; it is not copied here, so nobody downloads an outdated version.
Product information, photographs and specifications: Groz-Beckert. No prices or stock here: ask us and we will get back to you.
Tell us the operation you need to solve and we will reply with the right configuration and the lead time.
