Product features
Customary needle designations: DBX1 SAN 6, 14:25. Recommended for: Medium-weight to heavy woven fabrics, Technical textiles.
Customary needle designations
DBX1 SAN 6, 14:25
Further point designations
STU, STUB, S BALL, SET RT, EH, H SET, NEW RD, R STU

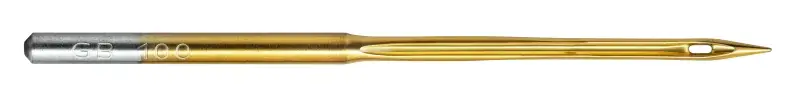

Needle form description
Straight needle with single groove and scarf
Technical sewing application
Double lock stitch
Recommended for
Medium-weight to heavy woven fabrics, Technical textiles
Specifications
| Needle system | 1738 SAN 6 |
|---|---|
| Point style | RG |
| Needle size | 90 – 110 Nm |
| Coating | GEBEDUR™ |
| Technical sewing application | Double lock stitch |
| Stitch type class | 300 |
| Overall length | 38.1 – 38.5 mm |
| Shank length | 16.5 mm |
| Length butt to eye | 33.9 mm |
| Shank diameter | 1.6 mm |
Catalogue
Groz-Beckert does not publish a separate leaflet for the 1738. Their catalogues cover the whole range and open in a new tab.
The file is published and updated by the manufacturer; it is not copied here, so nobody downloads an outdated version.
