Product features
Customary needle designations: TIX2, 128X2, 128X2 TRI, 128X6 TRI, 128X22 TRI, 128X40 TRI, 135 D, SY 1742, 16:05. Recommended for: Thick leather, Cardboard.
Customary needle designations
TIX2, 128X2, 128X2 TRI, 128X6 TRI, 128X22 TRI, 128X40 TRI, 135 D, SY 1742, 16:05
Further point designations
TRI

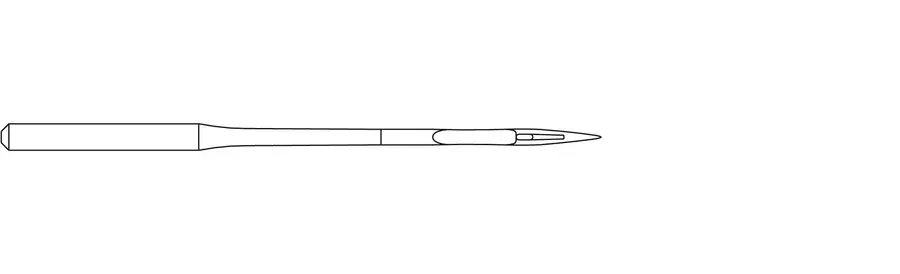

Needle form description
Straight needle with single groove and scarf
Technical sewing application
Double lock stitch
Recommended for
Thick leather, Cardboard
Specifications
| Needle system | 128X20 |
|---|---|

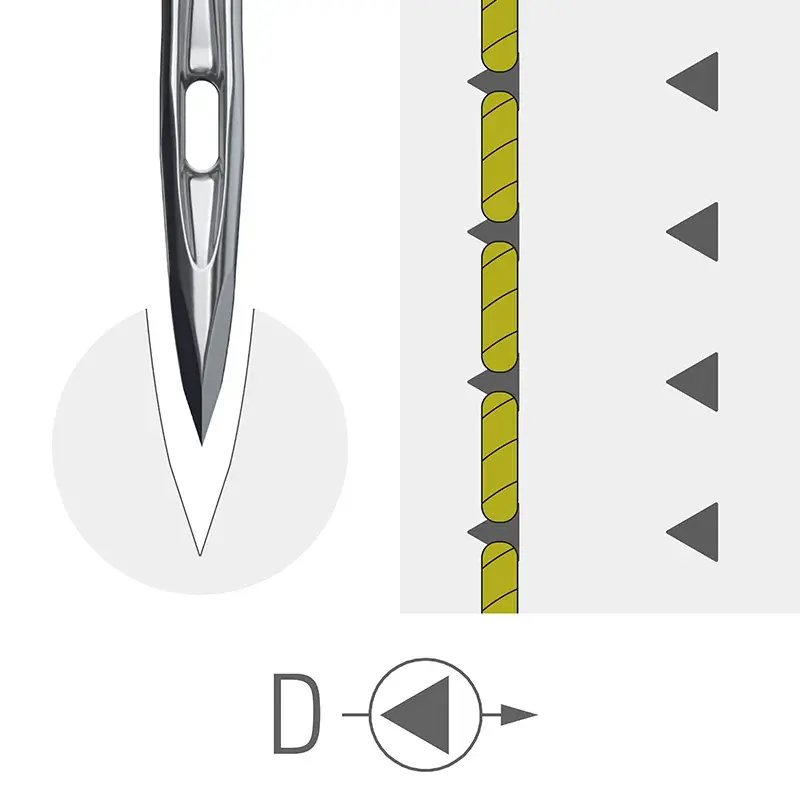

| Point style | D |
| Needle size | 110 Nm |
| Coating | GEBEDUR™ |
| Technical sewing application | Double lock stitch |
| Stitch type class | 300 |
| Length butt to eye | 33.9 mm |
| Shank diameter | 1.7 mm |
Catalogue
Groz-Beckert does not publish a separate leaflet for the 182X20. Their catalogues cover the whole range and open in a new tab.
The file is published and updated by the manufacturer; it is not copied here, so nobody downloads an outdated version.
Product information, photographs and specifications: Groz-Beckert. No prices or stock here: ask us and we will get back to you.
Tell us the operation you need to solve and we will reply with the right configuration and the lead time.
