Groz-Beckert
B 63
Cover chain stitch, Double chain stitch
Product features
Customary needle designations: DVX63, 1280 KSP, UY 121 GAS, RMX63, SY 7270, 35:40. Recommended for: Fine knitwear, Woven fabrics, Thin leather.
Customary needle designations
DVX63, 1280 KSP, UY 121 GAS, RMX63, SY 7270, 35:40
Further point designations
STU, STUB, S BALL, SET RT, EH, H SET, NEW RD, R STU

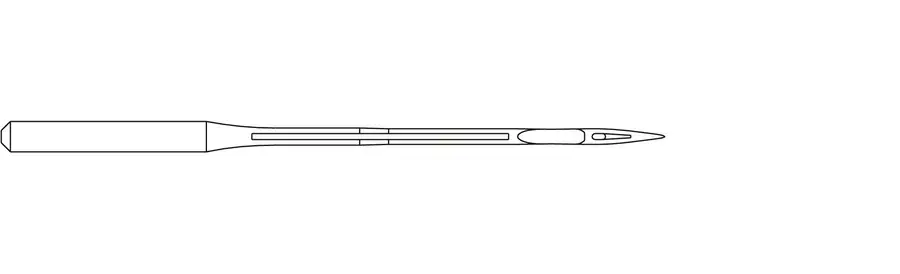

Needle form description
Straight needle with double groove and scarf
Technical sewing application
Double chain stitch, Cover chain stitch
Recommended for
Fine knitwear, Woven fabrics, Thin leather
Specifications
| Needle system | B 63 |
|---|---|
| Point style | FFG, RG |
| Needle size | 60 – 90 Nm |
| Coating | GEBEDUR™ |
| Technical sewing application | Cover chain stitch, Double chain stitch |
| Stitch type class | 400, 600 |
| Overall length | 43.7 mm |
| Shank length | 13.5 mm |
| Length butt to eye | 38.9 mm |
| Shank diameter | 2.0 mm |
Catalogue
Groz-Beckert does not publish a separate leaflet for the B 63. Their catalogues cover the whole range and open in a new tab.
The file is published and updated by the manufacturer; it is not copied here, so nobody downloads an outdated version.
Data sheets, photos, videos and specifications: Groz-Beckert.
