LD70/NT50

LD70 Labelling machine for garments / NT50 Stacking machine with conveyor belt for folded garments.

The LD70/NT50 machine combination is a solution offered by Thermotron for labelling and stacking readymade garments. It is ideal for companies seeking a solution for attaching pre-printed labels on the garments they produce, that would only require one operator. This production line can label quickly, quietly and accurately 6,000 garments in 8 hours or more, depending on the speed of the operator who is feeding the folded garments. It is ideal for companies seeking a solution for attaching pre-printed labels on the garments they produce, that would only require one operator. This production line can label quickly, quietly and accurately 6,000 garments in 8 hours or more, depending on the speed of the operator who is feeding the folded garments. The production line is capable of handling a wide variety of different garments.

Machines that make up the production line

• LD70

  Attaching printed labels on folded garments

• NT50

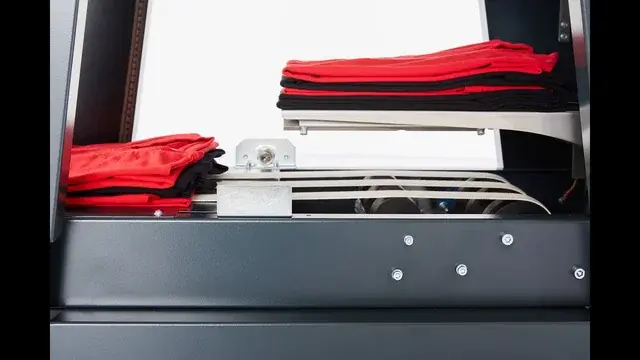

  Stacking folded garments and transporting the stack to the sorting area via a conveyor belt.

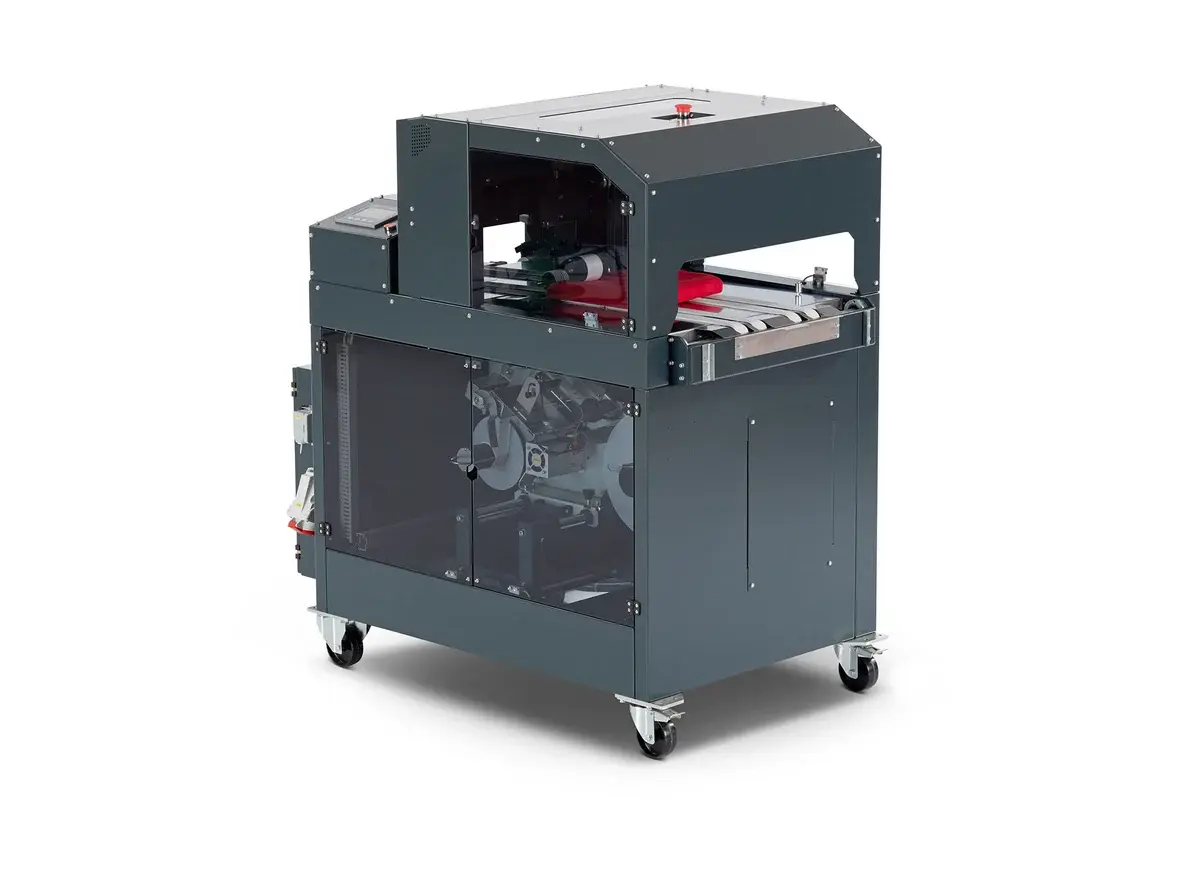

LD70

• Maximum garment thickness: 10cm

• Yes CE Certification approved

Label Material Characteristics (LD70)

• Label lifespan: Labels preserve their characteristics for 12 months if the necessary storage conditions are met.

• Conditions for material usage: Storage conditions: 10⁰C – 25⁰C, 40-60% humidity and avoid exposure to sunlight or infrared radiation.

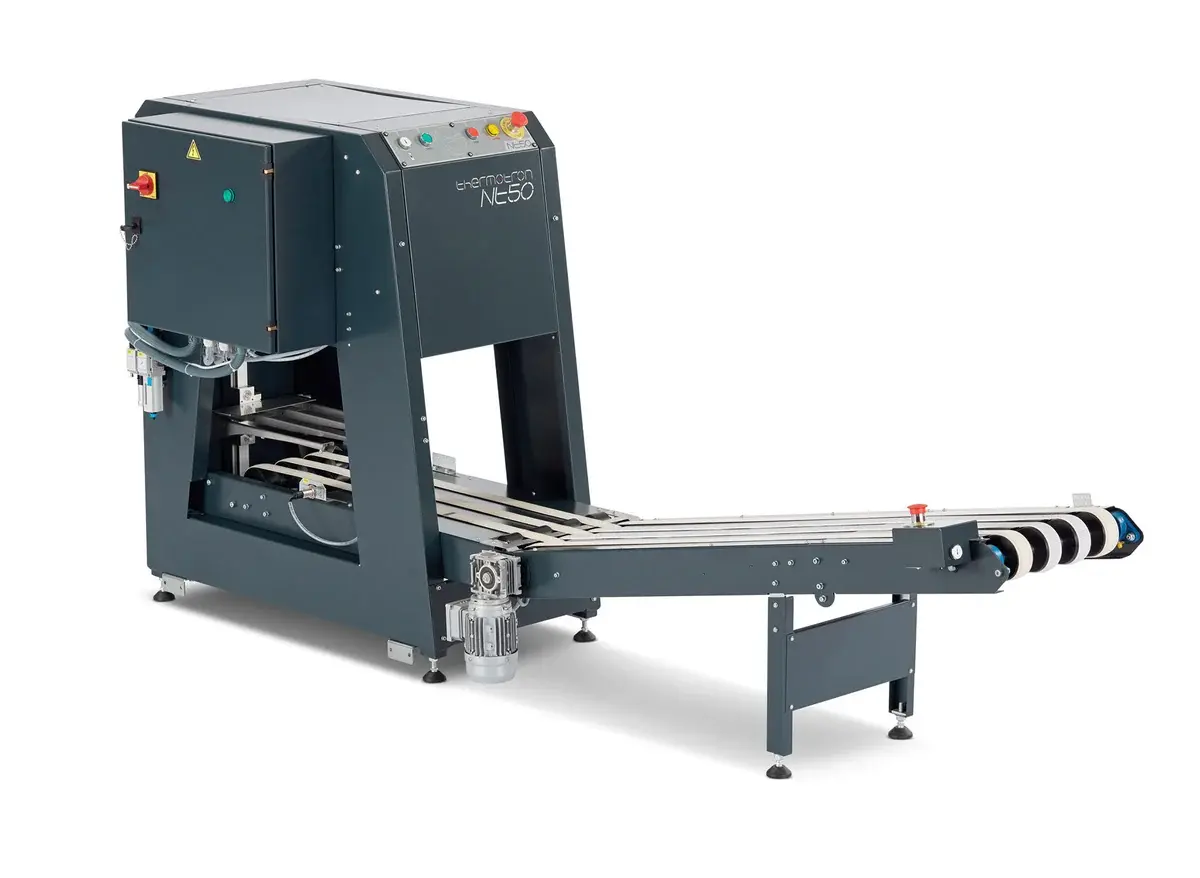

NT50

• Maximum height of garment stack: 35cm

• Yes CE Certification approved

Packing and transport

Dimensions of wooden crate per machine (L*W*H cm).

• LD70: 178*110*154cm

• NT50: 92*144*142cm

Gross weight per machine & total.

• LD70: 335Kg

• NT50: 210Kg

• Total gross weight: 545Kg

Disinfection Certificate GR-0074: We confirm that the wooden crates used for the packaging of the machines meet the requirements of the International Standards for Phytosanitary Measures No. 15 (ISPM 15, 2009) of FAO (Heat treatment at a minimum temperature of 56 ο C for a minimum of 30 minutes, on the entire mass of the wood.)
