STP1000/NT50

STP1000 Automatic folding machine for garments / NT50 Stacking machine with a conveyor belt for folded garments

The STP1000/NT50 machine combination is a solution offered by Thermotron for folding and stacking readymade garments. It is ideal for companies seeking a folding and stacking solution for the garments they produce, that would only require one operator. This production line can stack quickly, quietly and accurately 5,500 garments in 8 hours and is capable of handling a wide variety of different garments. Production line functions

Machines that make up the production line

• STP1000

  Folding garments

• NT50

  Stacking folded garments and transporting the stack to the sorting area via a conveyor belt.

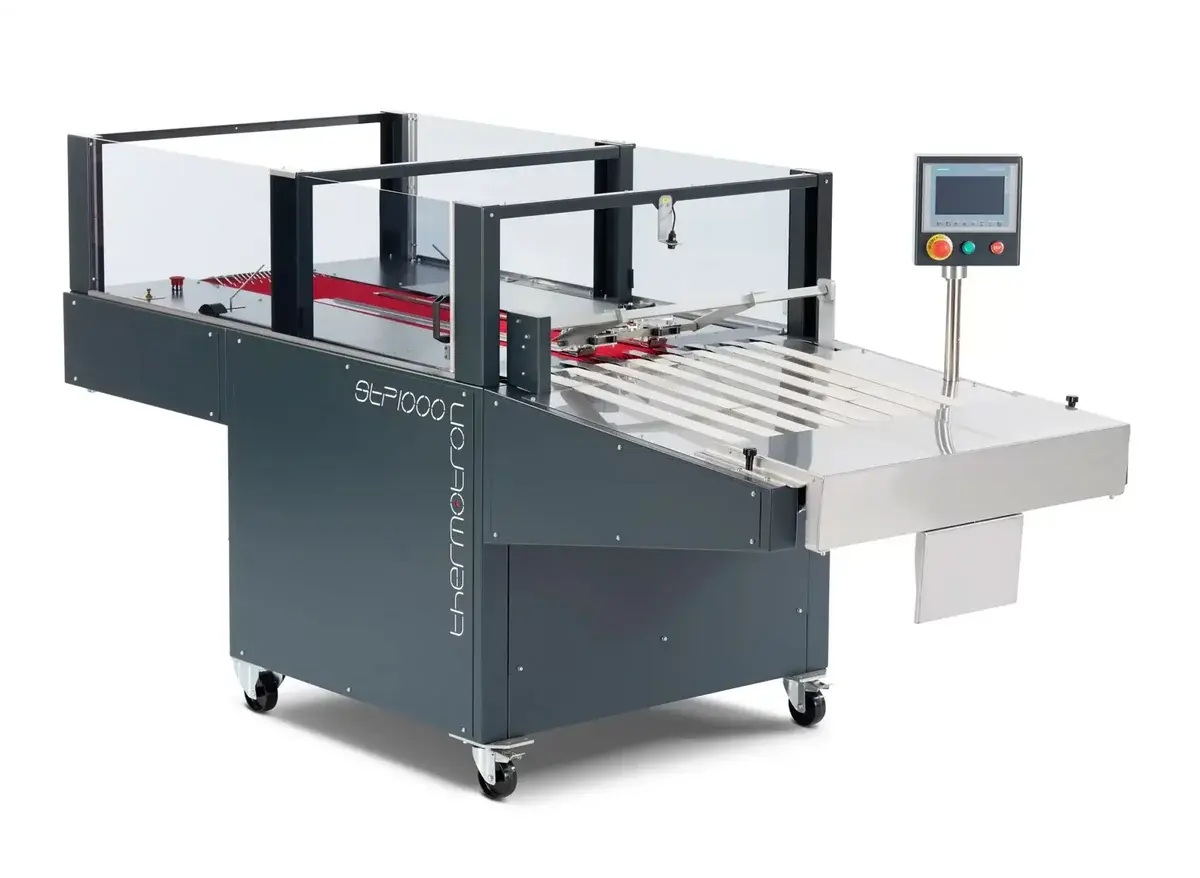

STP1000

• Maximum clothes dimensions (L&W): 100cm & 80cm (Pants L = 120m)

• Width of final folding: Minimum 16cm & Maximum 32cm

• Yes CE Certification approved

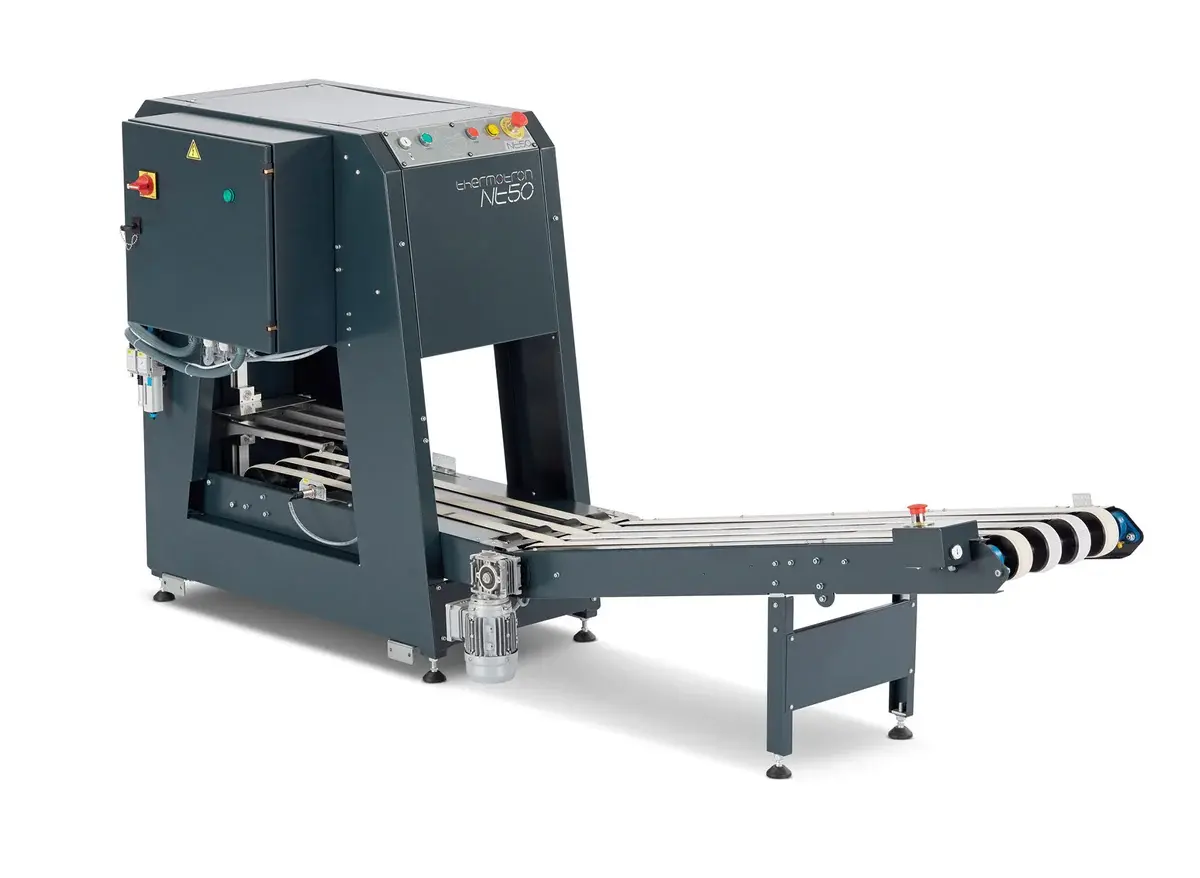

NT50

• Maximum height of garment stack: 35cm

• Yes CE Certification approved

Packing and transport

Dimensions of wooden crate per machine (L*W*H cm).

• STP1000: 293*140*157cm

• NT50: 92*144*142cm

Gross weight per machine & total.

• STP1000: 550Kg

• NT50: 210Kg

• Total gross weight: 460Kg

Disinfection Certificate GR-0074: We confirm that the wooden crates used for the packaging of the machines meet the requirements of the International Standards for Phytosanitary Measures No. 15 (ISPM 15, 2009) of FAO (Heat treatment at a minimum temperature of 56 ο C for a minimum of 30 minutes, on the entire mass of the wood.)
