LD70/PV40/KL60M

LD70 Labelling machine for garments / PV40 Bagging machine / KL60M Adhesive tape sealing machine and conveyor belt for bagged garments.

The LD70/PV40/KL60M machine combination is a solution offered by Thermotron for packing readymade garments. It is ideal for companies seeking a packing solution for the garments they produce, that would only require one operator. This production line can pack quickly, quietly and accurately 5,500 garments in 8 hours or more, depending on the speed of the operator who is feeding the folded garments. The production line is capable of handling a wide variety of different garments.

Machines that make up the production line

• LD70

  Attaching printed labels on folded garments

• PV40

  Packing folded garments into plastic bags

• KL60M

  Sealing of the plastic bags containing the garments with adhesive tape and transporting the bagged product to the sorting area via a conveyor belt.

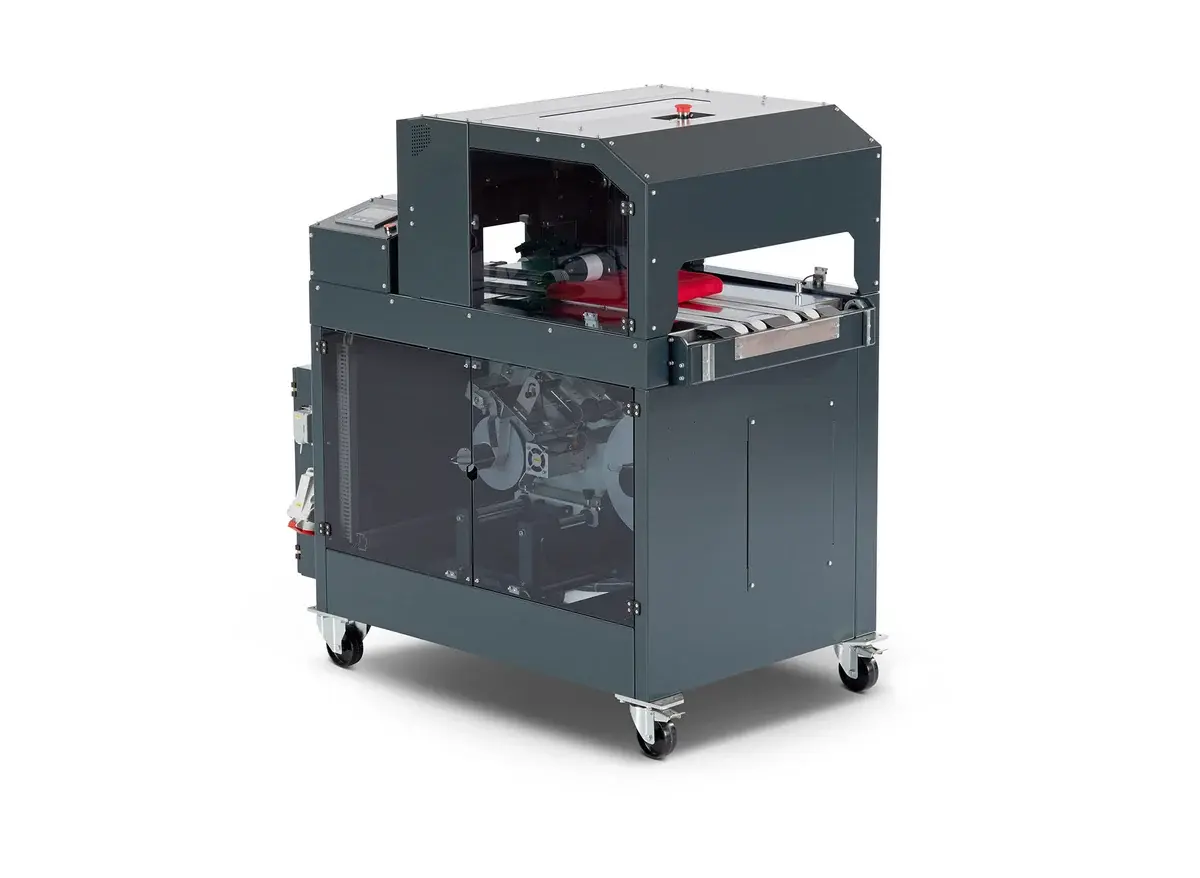

LD70

• Maximum garment thickness: 10cm

• Yes CE Certification approved

Label Material Characteristics (LD70)

• Label lifespan: Labels preserve their characteristics for 12 months if the necessary storage conditions are met.

• Conditions for material usage: Storage conditions: 10⁰C – 25⁰C, 40-60% humidity and avoid exposure to sunlight or infrared radiation.

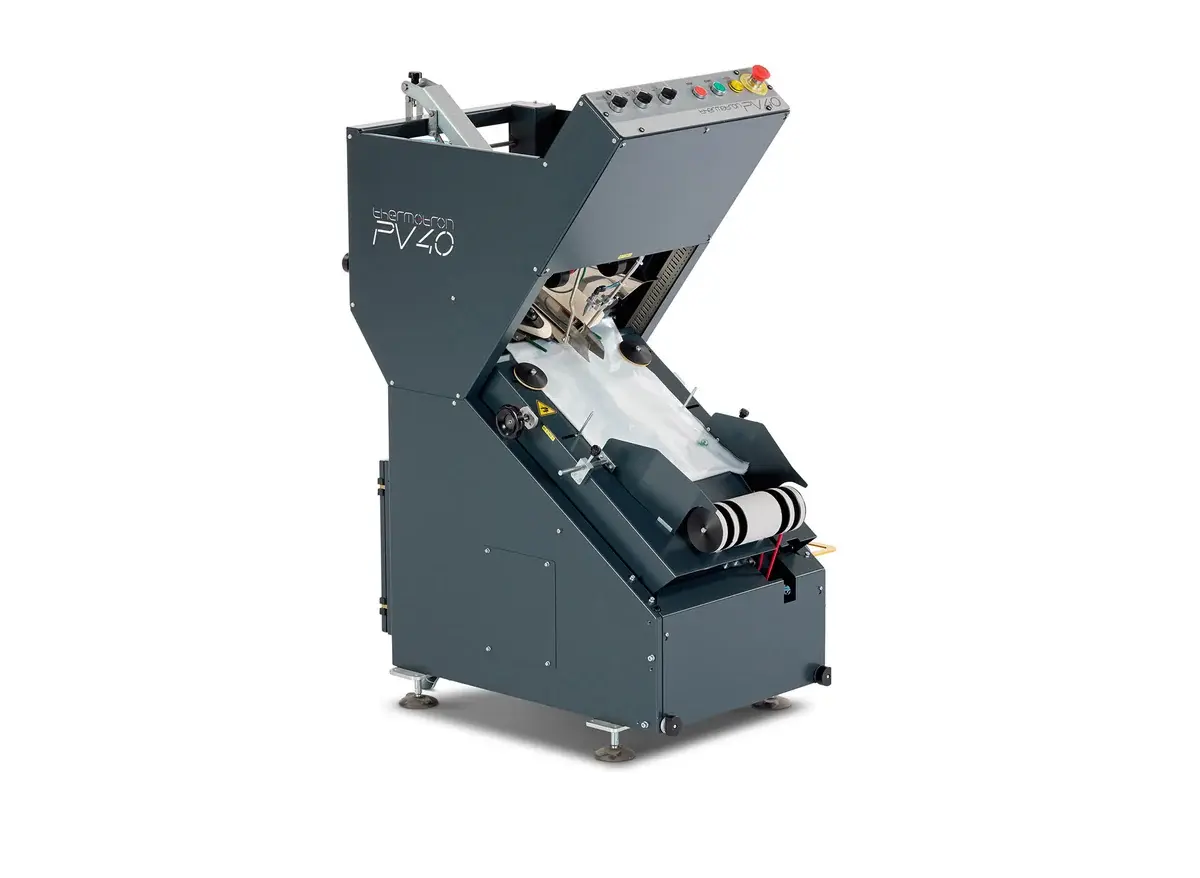

PV40

• Width of bag: 18-38cm

• Length of flap (L f): Minimum 5cm

• Maximum garment thickness: 6cm

• Capacity of bags: 80-100pcs

• Yes CE Certification approved

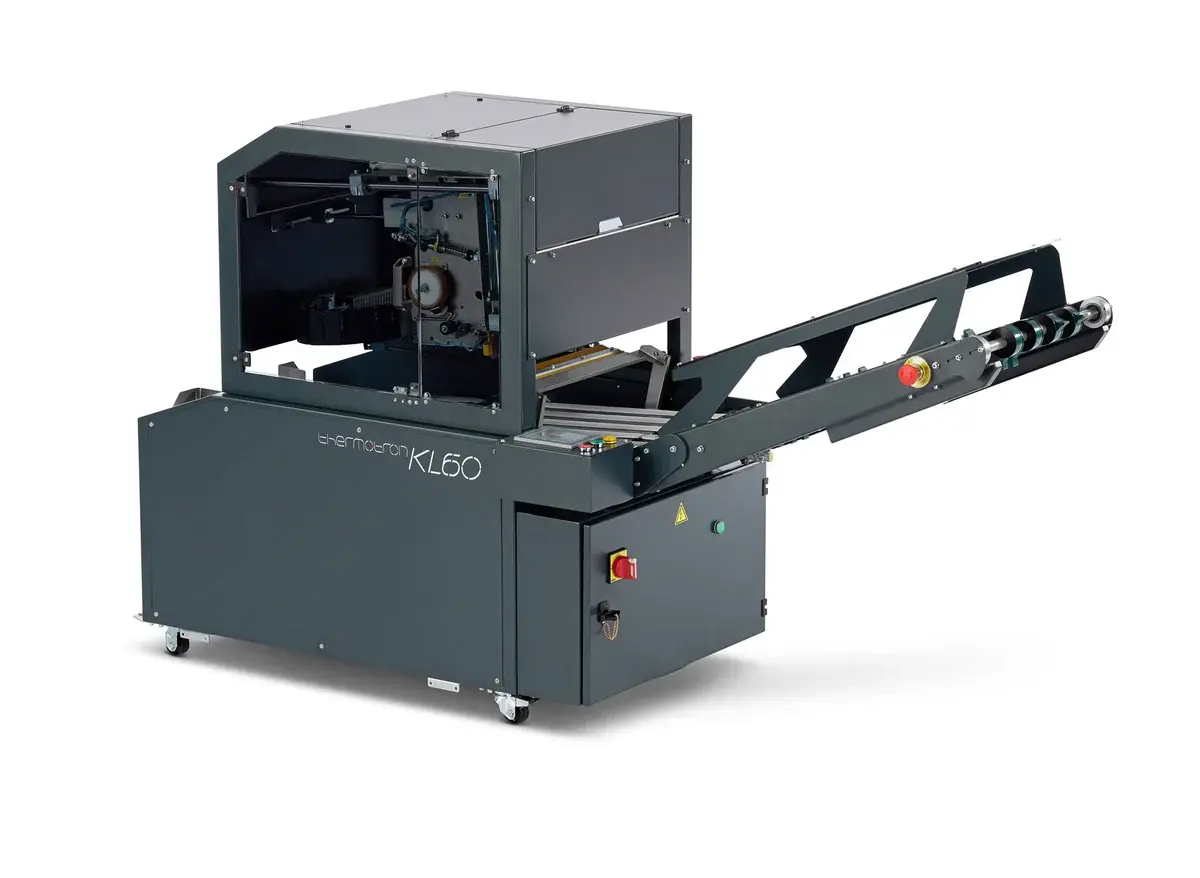

KL60M

• Width of bag: 16-38cm

• Maximum garment thickness: 8-9cm

• Yes CE Certification approved

Packing and transport

Dimensions of wooden crate per machine (L*W*H cm).

• LD70: 178*110*154cm

• PV40: 121*87*153cm

• KL60M: 153*105*155cm

Gross weight per machine & total.

• LD70 335Kg

• PV40 180Kg

• KL60M 275Kg

• Total gross weight 790Kg

Disinfection Certificate GR-0074: We confirm that the wooden crates used for the packaging of the machines meet the requirements of the International Standards for Phytosanitary Measures No. 15 (ISPM 15, 2009) of FAO (Heat treatment at a minimum temperature of 56 ο C for a minimum of 30 minutes, on the entire mass of the wood.)
