STP1000/PV40/TH44M

STP1000 Automatic folding machine for garments / PV40 Bagging machine / TH44M Heat sealing machine and conveyor belt for bagged garments.

The STP1000/PV40/TH44M machine combination is a solution offered by Thermotron for folding and packing readymade garments. It is ideal for companies seeking a folding and packing solution for the garments they produce, that would only require one operator. This production line can pack quickly, quietly and accurately 5,500 garments in 8 hours and is capable of handling a wide variety of different garments.

Machines that make up the production line

• STP1000

  Folding garments

• PV40

  Packing folded garments into plastic bags

• TH44M

  Heat sealing of the plastic bags containing the garments and transporting the bagged product to the sorting area via a conveyor belt.

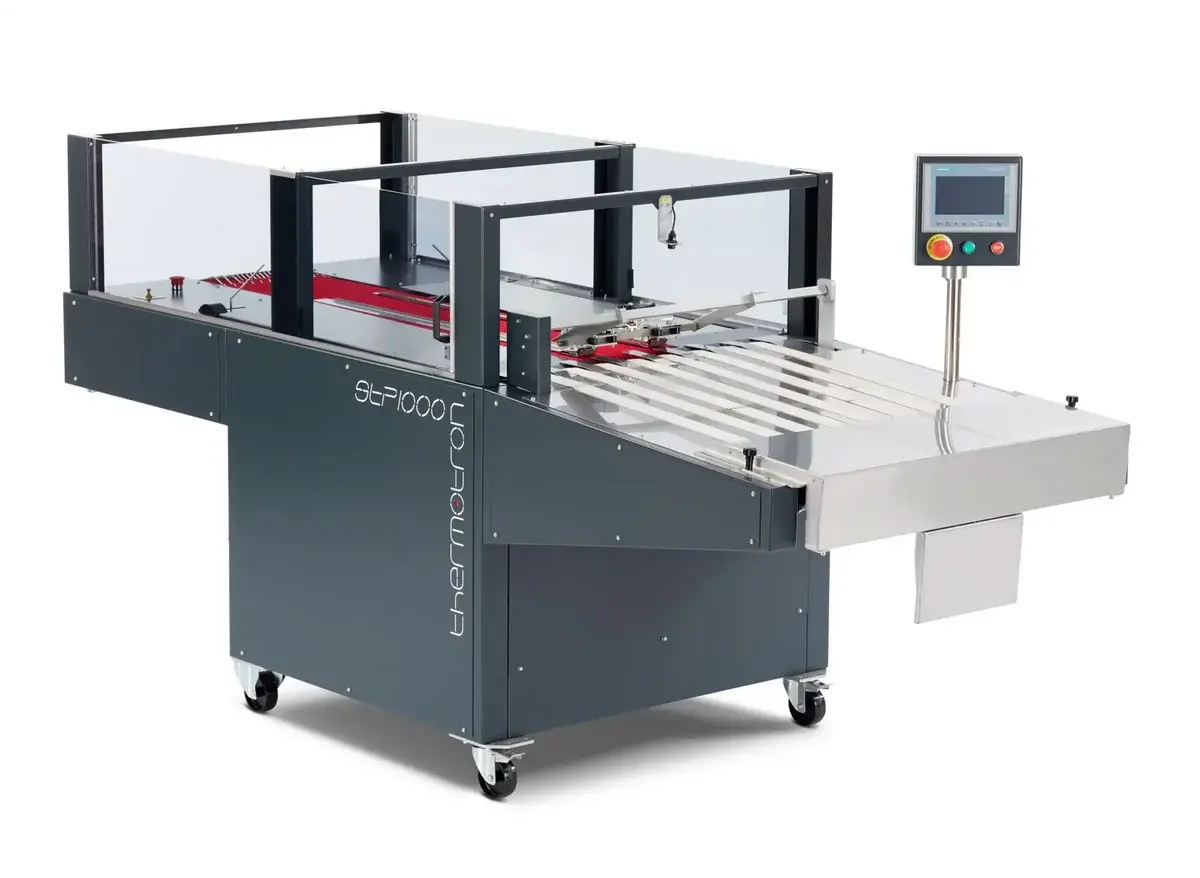

STP1000

• Maximum clothes dimensions (L&W): 100cm & 80cm (Pants L = 120m)

• Width of final folding: Minimum 16cm & Maximum 32cm

• Yes CE Certification approved

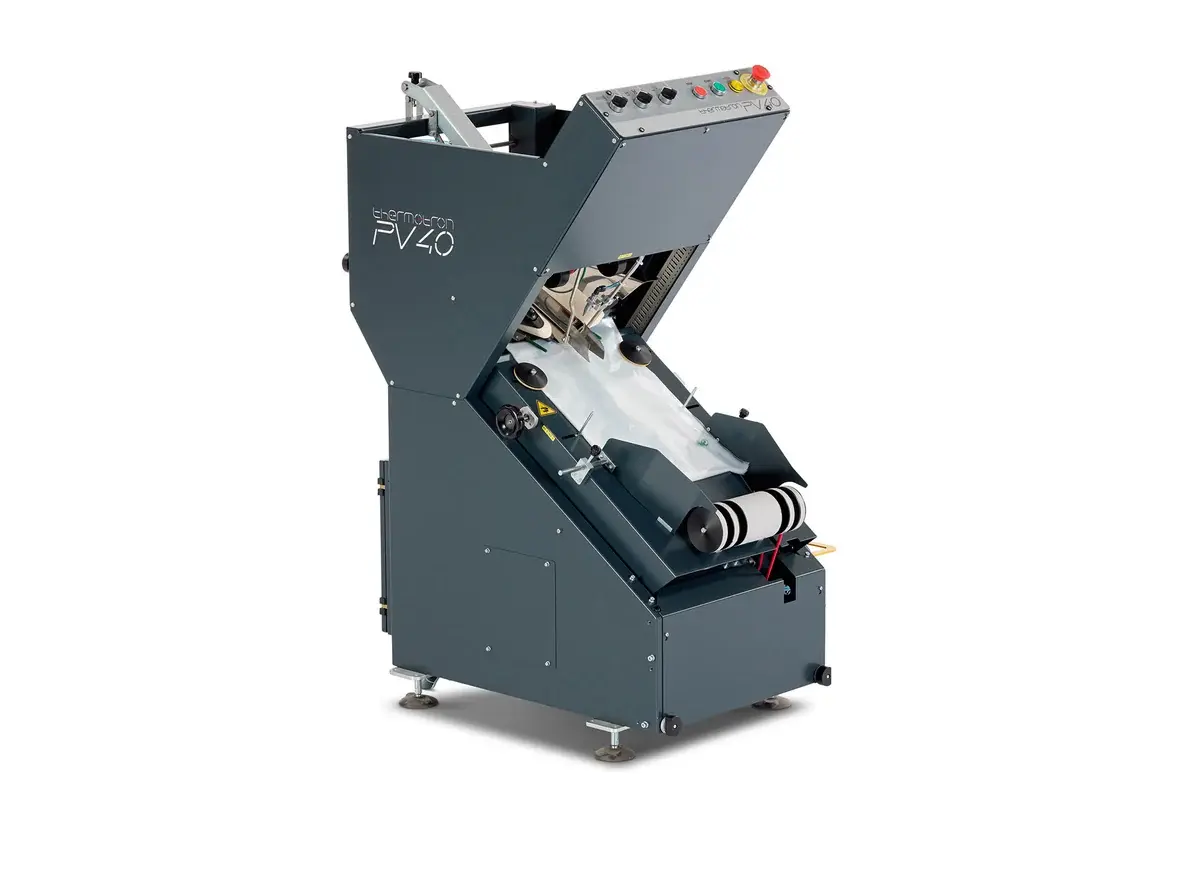

PV40

• Width of bag: 20-38cm

• Length of flap (L f): Minimum 5cm

• Maximum garment thickness: 6cm

• Capacity of bags: 80-100pcs

• Yes CE Certification approved

TH44M

• Width of bag: 16-38cm

• Maximum garment thickness: 10cm

• Yes CE Certification approved

Packing and transport

Dimensions of wooden crate per machine (L*W*H cm).

• STP1000: 293*140*157cm

• PV40: 121*87*153cm

• TH44M: 153*105*155cm

Gross weight per machine & total.

• STP1000 550Kg

• PV40 180Kg

• TH44M 325Kg

• Total gross weight 685Kg

Disinfection Certificate GR-0074: We confirm that the wooden crates used for the packaging of the machines meet the requirements of the International Standards for Phytosanitary Measures No. 15 (ISPM 15, 2009) of FAO (Heat treatment at a minimum temperature of 56 ο C for a minimum of 30 minutes, on the entire mass of the wood.)
