STP1000/LD70/PV40/KL60M

STP1000 Automatic folding machine for garments / LD70 Labelling machine / PV40 Bagging machine / KL60M Adhesive tape sealing machine and conveyor belt for bagged garments

The STP1000/LD70/PV40/KL60M machine combination is a solution offered by Thermotron for folding and packing readymade garments. It is ideal for companies seeking a folding and packing solution for the garments they produce, that would only require one operator. This production line can pack quickly, quietly and accurately 5,500 garments in 8 hours and is capable of handling a wide variety of different garments.

Machines that make up the production line

• STP1000

  Folding garments

• LD70

  Attaching printed labels on folded garments .

• PV40

  Packing folded garments into plastic bags

• KL60M

  Sealing the plastic bags containing the garments with adhesive tape and transporting the bagged product to the sorting area via a conveyor belt

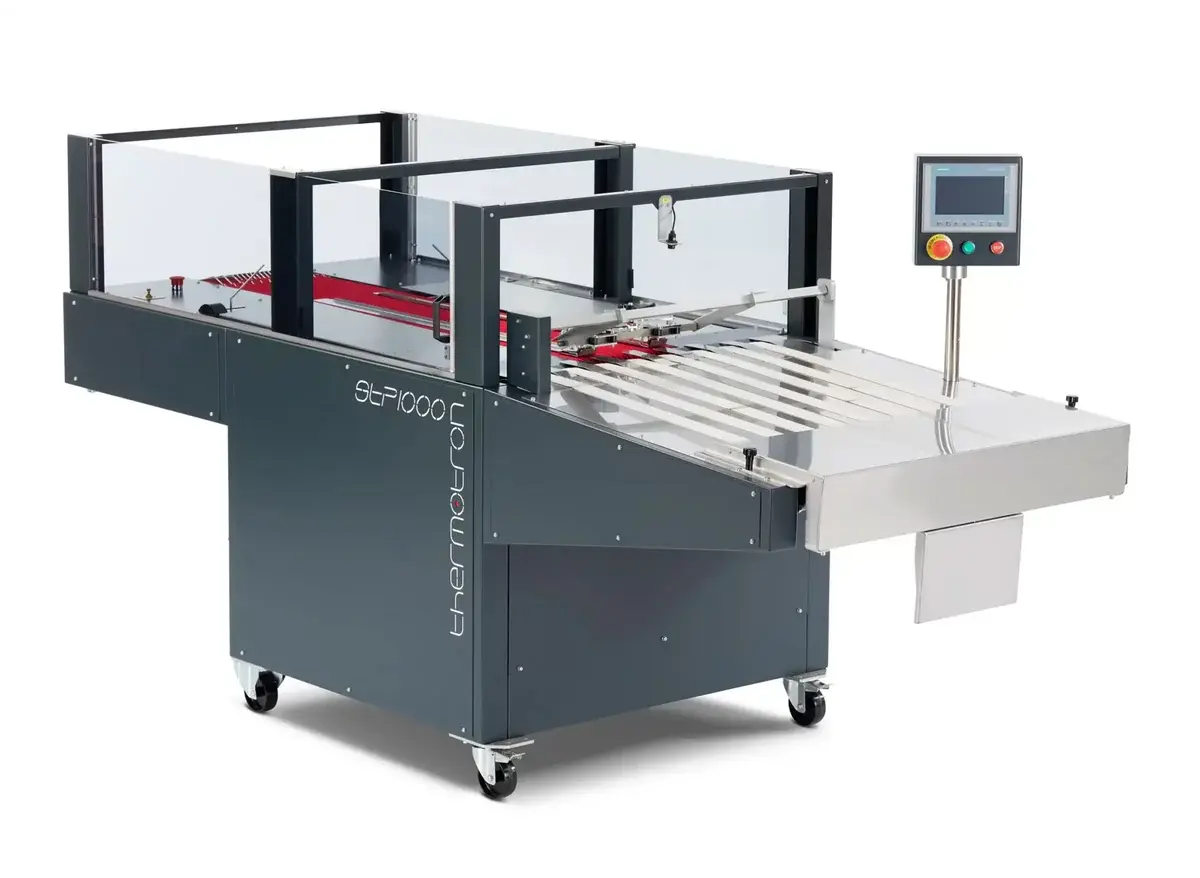

STP1000

• o Maximum clothes dimensions (L&W): 100cm & 80cm (Pants L = 120m)

• Width of final folding: Minimum 16cm & Maximum 32cm

• Yes CE Certification approved

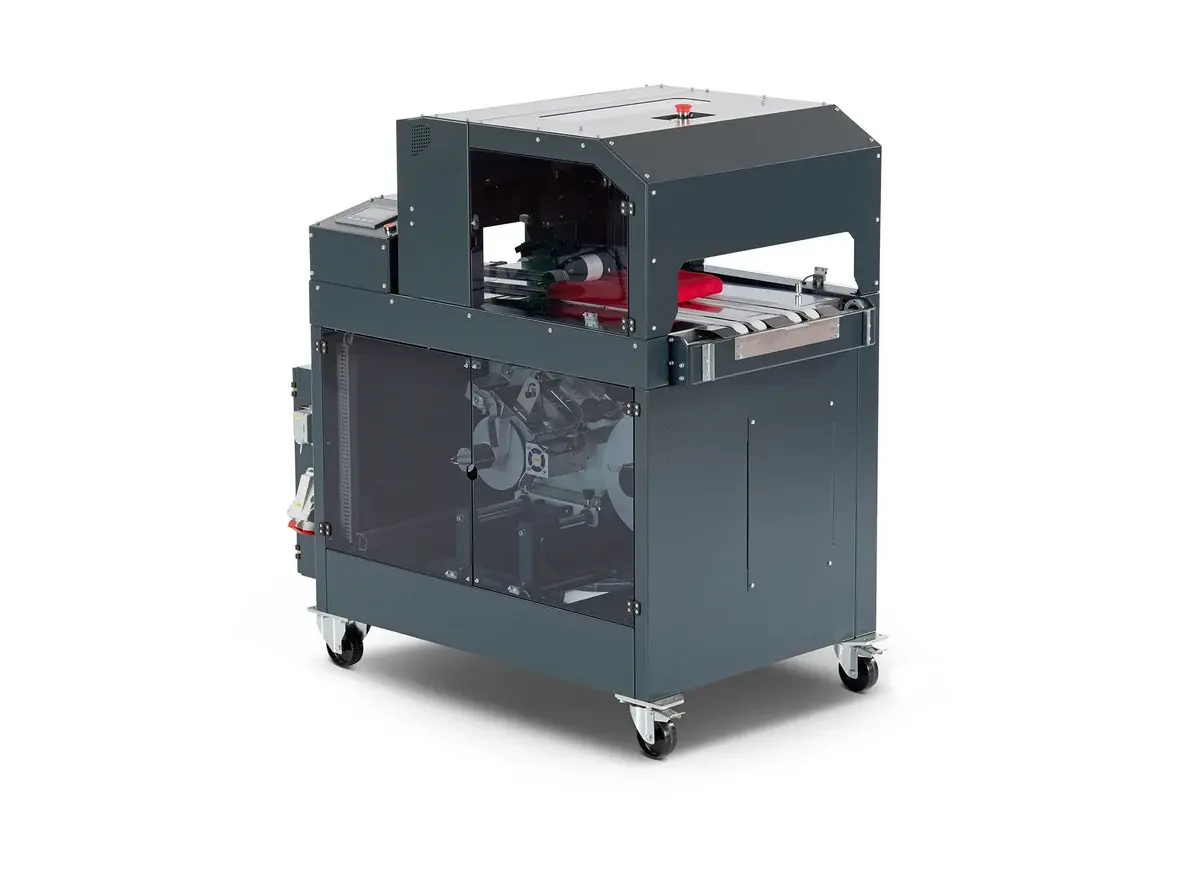

LD70

• Maximum garment thickness: 10cm

• Yes CE Certification approved

Label Material Characteristics (LD70)

• Label lifespan: Labels preserve their characteristics for 12 months if the necessary storage conditions are met.

• Conditions for material usage: Storage conditions: 10⁰C – 25⁰C, 40-60% humidity and avoid exposure to sunlight or infrared radiation.

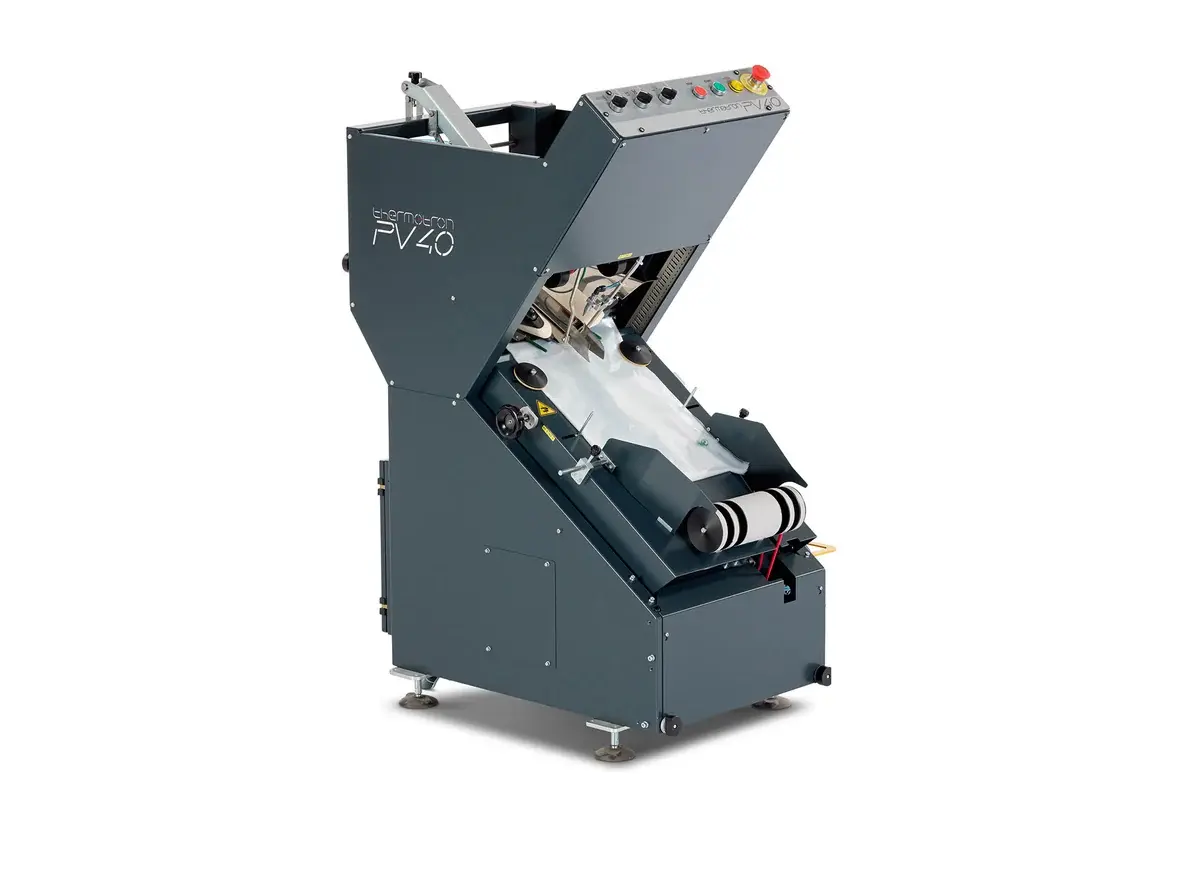

PV40

• Width of bag: 18-38cm

• Length of flap (L f): Minimum 5cm

• Maximum garment thickness: 6cm

• Capacity of bags: 80-100pcs

• Yes CE Certification approved

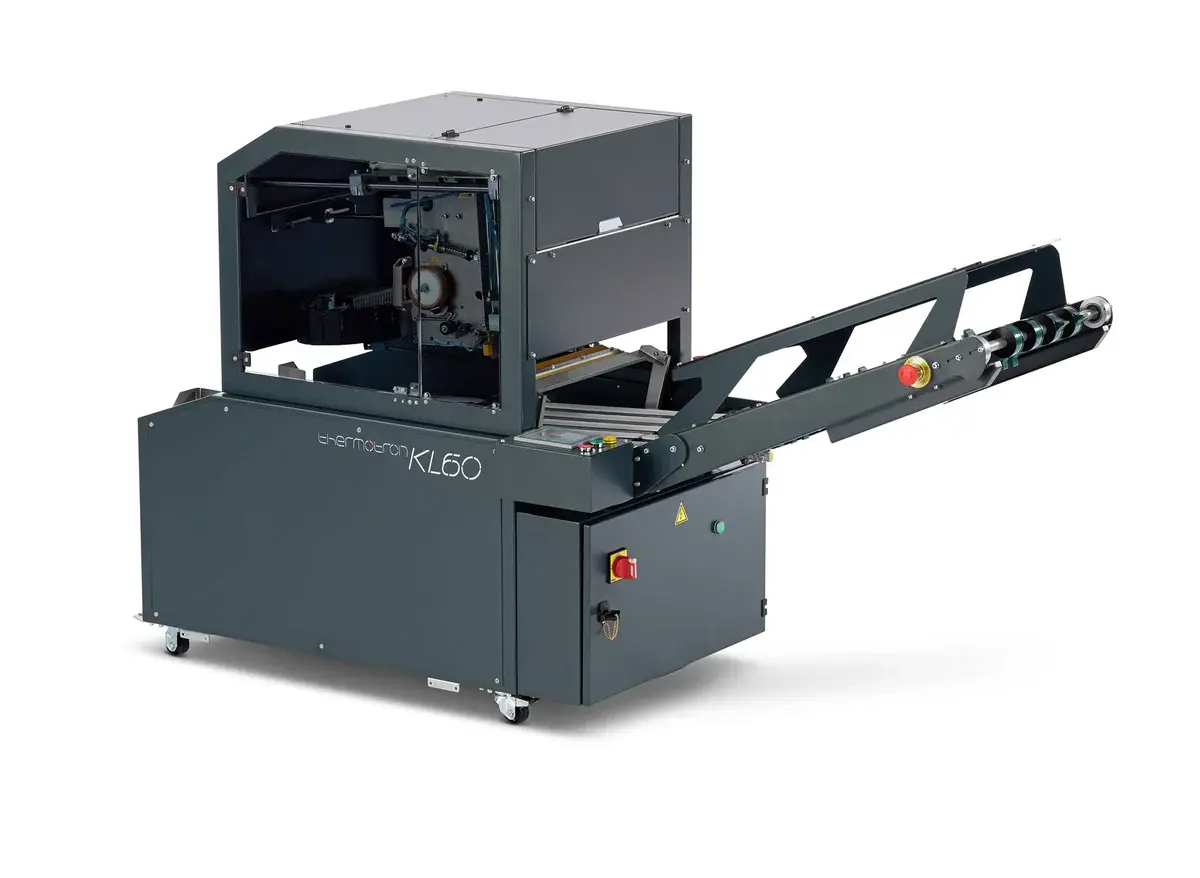

KL60M

• Width of bag: 16-38cm

• Maximum garment thickness: 8-9cm

• Yes CE Certification approved

Packing and transport

Dimensions of wooden crate per machine (L*W*H cm).

• STP1000: 293*140*157cm

• LD70: 178*110*154cm

• PV40: 121*87*153cm

• KL60M: 153*105*155cm

Gross weight per machine & total.

• STP1000 550Kg

• LD70 335Kg

• PV40 180Kg

• KL60M 275Kg

• Total gross weight 850Kg

Disinfection Certificate GR-0074: We confirm that the wooden crates used for the packaging of the machines meet the requirements of the International Standards for Phytosanitary Measures No. 15 (ISPM 15, 2009) of FAO (Heat treatment at a minimum temperature of 56 ο C for a minimum of 30 minutes, on the entire mass of the wood.)
