TH44/BC41M

TH44 Heat sealing machine / BC41M Barcode printing & labelling machine for bagged garments.

The TH44/BC41M machine combination is a solution offered by Thermotron for packing readymade garments. It is ideal for companies seeking a packing solution for the garments they produce, that would only require one operator. This production line can pack quickly, quietly and accurately 5,500 garments in 8 hours or more, depending on the speed of the operator who is feeding the folded garments. The production line is capable of handling a wide variety of different garments.

Machines that make up the production line

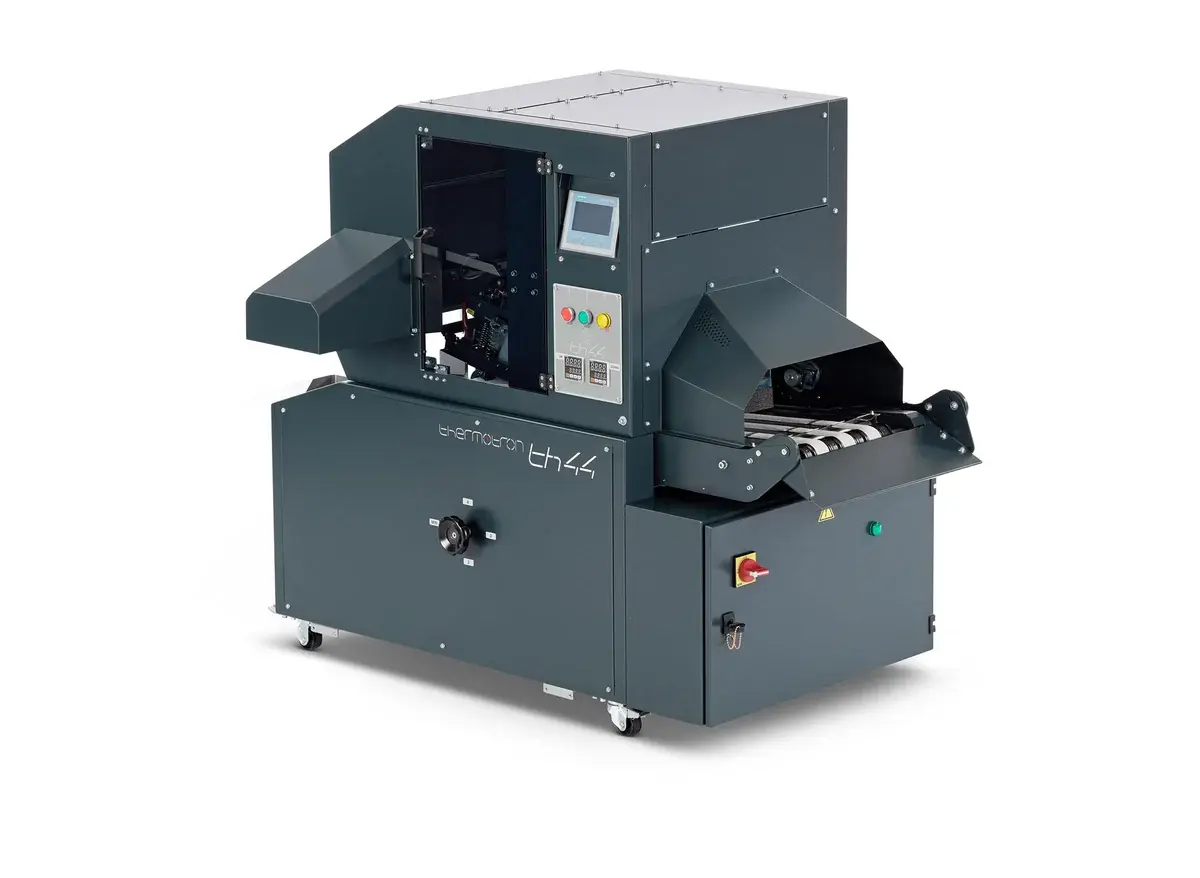

• TH44

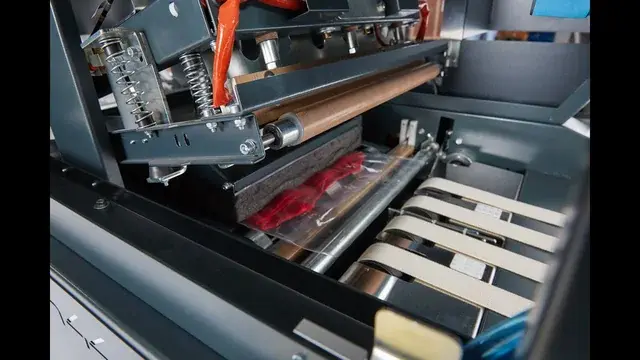

  Heat sealing the plastic bags containing the garments

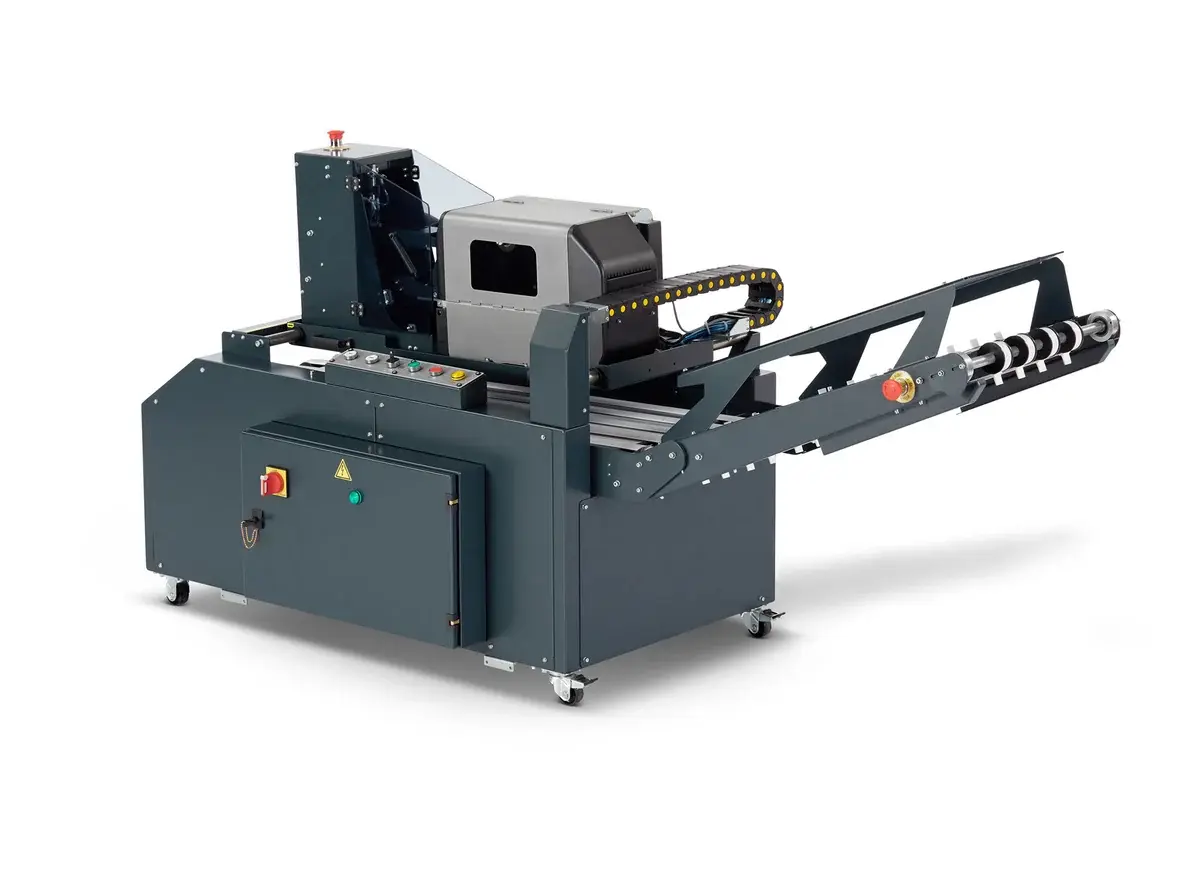

• BC41M

  Printing and attaching barcode stickers onto the sealed plastic bags and transporting the bagged products to the sorting area via a conveyor belt.

TH44

• Width of bag: 16-38cm

• Maximum garment thickness: 10cm

• Yes CE Certification approved

BC41M

• Print method: Thermic & Thermal transfer

• Label dimensions minimum W-H: 2.8*2cm

• Label dimensions maximum W-H: 10.4*10cm

• Yes CE Certification approved

Barcode Reading Test (BC41M)

• Supported Barcode types by default: 2/5 INTERLEAVED, Code 39, Codabar, Code 128, EAN 128, All EAN/UPC

• Supported codes: Code Full ascii, Code 93, Plessey, Pharmacode

Packing and transport

Dimensions of wooden crate per machine (L*W*H cm)

• TH44: 153*105*155cm

• BC41M: 108*166*152cm

Gross weight per machine

• TH44: 310Kg

• BC41M: 275Kg

• Total gross weight: 530Kg

Disinfection Certificate GR-0074: We confirm that the wooden crates used for the packaging of the machines meet the requirements of the International Standards for Phytosanitary Measures No. 15 (ISPM 15, 2009) of FAO (Heat treatment at a minimum temperature of 56 ο C for a minimum of 30 minutes, on the entire mass of the wood.)
