STP1000/LD70/NT50

STP1000 Automatic folding machine for garments / LD70 Labelling machine / NT50 Stacking machine with a conveyor belt for folded garments.

The STP1000/LD70/NT50 machine combination is a solution offered by Thermotron for folding and stacking readymade garments. It is ideal for companies seeking a folding and stacking solution for the garments they produce, that would only require one operator. This production line can stack quickly, quietly and accurately 5,500 garments in 8 hours and is capable of handling a wide variety of different garments.

Machines that make up the production line

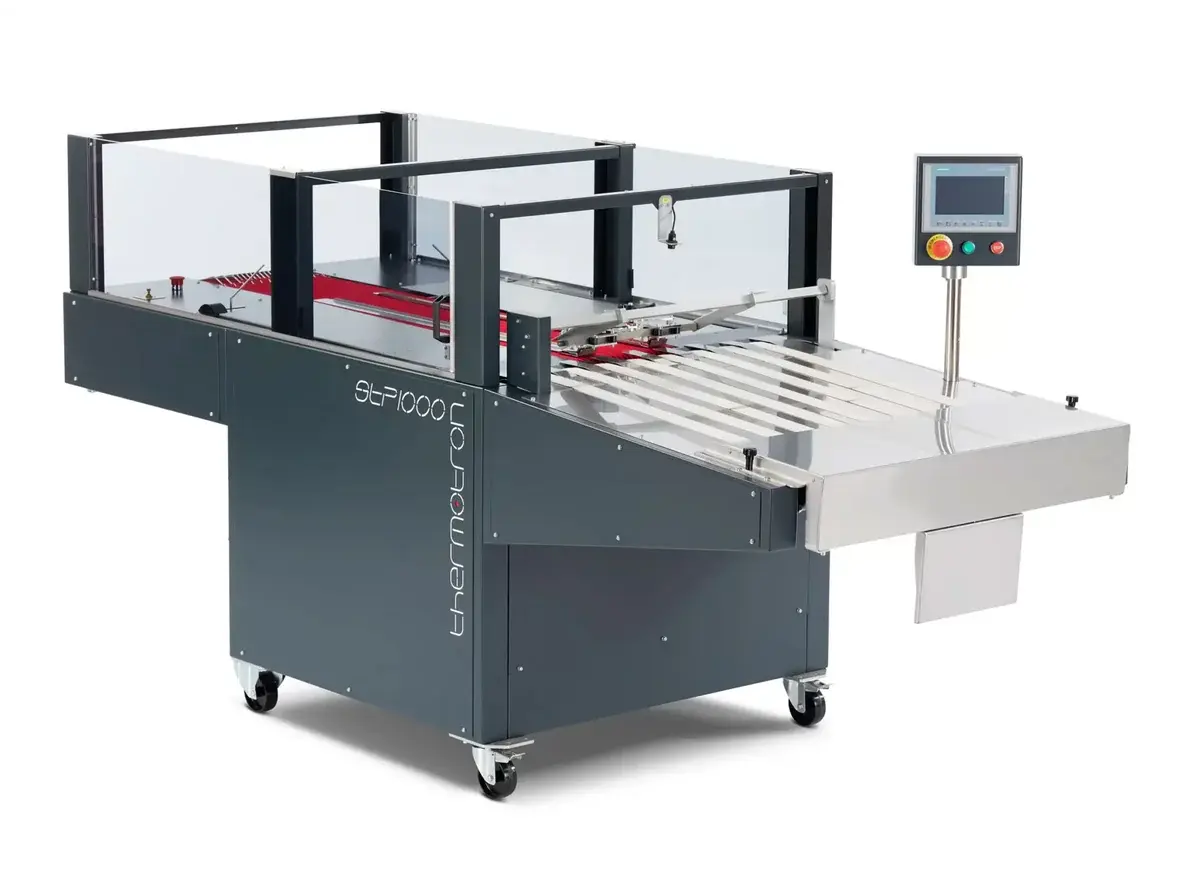

• STP1000

  Folding garments

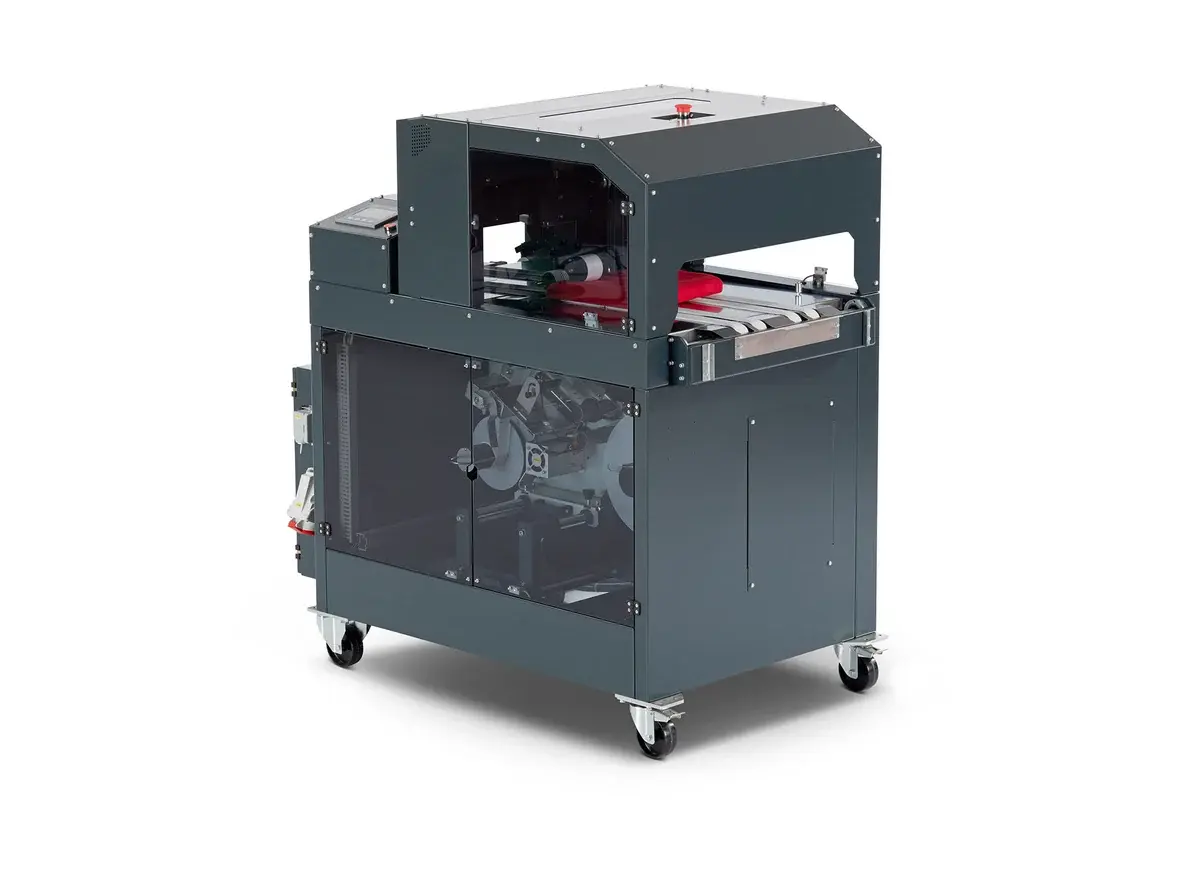

• LD70

  Attaching printed labels on folded garments .

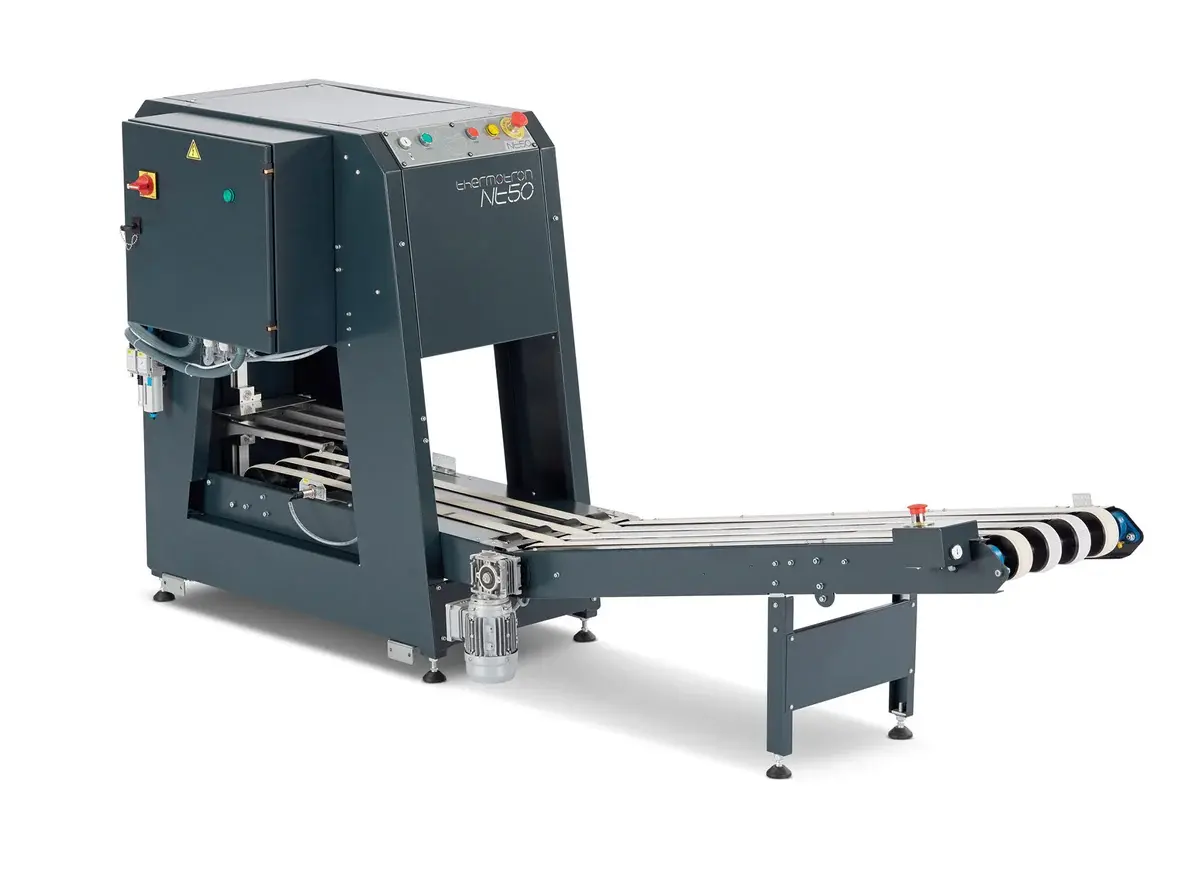

• NT50

  Stacking folded garments and transporting the stack to the sorting area via a conveyor belt.

STP1000

• Maximum clothes dimensions (L&W): 100cm & 80cm (Pants L = 120m)

• Width of final folding: Minimum 16cm & Maximum 32cm

• Yes CE Certification approved

LD70

• Maximum garment thickness: 10cm

• Yes CE Certification approved

Label Material Characteristics (LD70)

• Label lifespan: Labels preserve their characteristics for 12 months if the necessary storage conditions are met.

• Conditions for material usage: Storage conditions: 10⁰C – 25⁰C, 40-60% humidity and avoid exposure to sunlight or infrared radiation.

NT50

• Maximum height of garment stack: 35cm

• Yes CE Certification approved

Packing and transport

Dimensions of wooden crate per machine (L*W*H cm).

• STP1000: 293*140*157cm

• LD70: 178*110*154cm

• NT50: 92*144*142cm

Gross weight per machine & total.

• STP1000: 550Kg

• LD70: 335Kg

• NT50: 210Kg

• Total gross weight: 685Kg

Disinfection Certificate GR-0074: We confirm that the wooden crates used for the packaging of the machines meet the requirements of the International Standards for Phytosanitary Measures No. 15 (ISPM 15, 2009) of FAO (Heat treatment at a minimum temperature of 56 ο C for a minimum of 30 minutes, on the entire mass of the wood.)
