Consew
Consew 146RB-1A-1

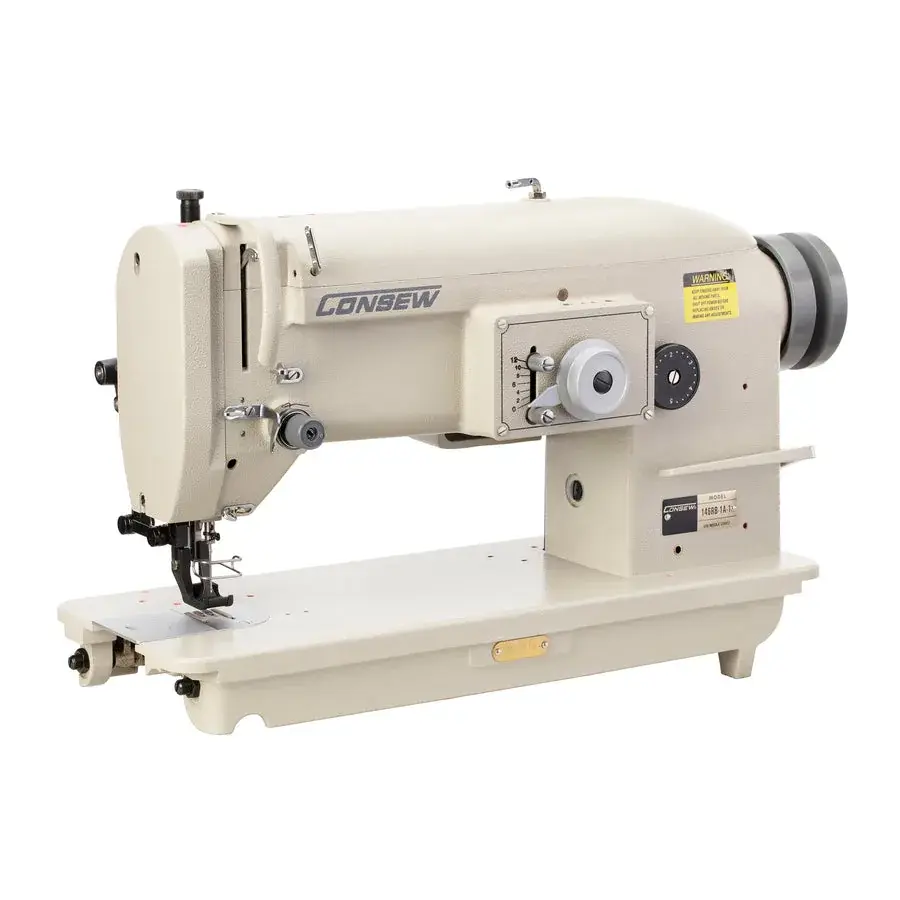

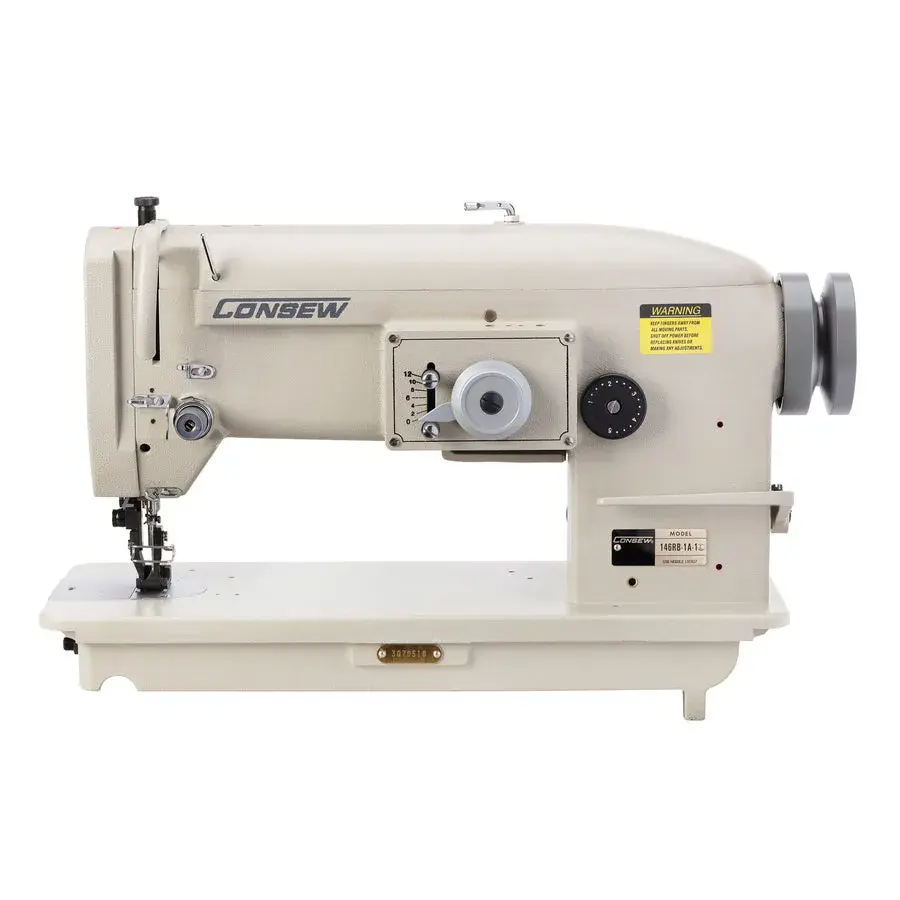

The Consew Single Needle, Drop Feed, Walking Foot, Zig-Zag Lockstitch Machine is engineered for precision and durability, making it an ideal choice for sewing medium to heavy weight fabrics…
Product features
1 / 8
The Consew Single Needle, Drop Feed, Walking Foot, Zig-Zag Lockstitch Machine is engineered for precision and durability, making it an ideal choice for sewing medium to heavy weight fabrics that are challenging to feed. Equipped with a horizontal axis transverse rotary hook, a large bobbin, wide Zig-Zag capabilities, and reverse feed functionality, this machine is designed to handle tough sewing tasks with ease and efficiency.
Specifications
| Number of Needles | 1 (Single) |
|---|---|
| Feeding Mechanism | Walking Foot |
| Workspace | Standard Workspace |
| Standard or Full Function | Standard Functions |
| Max Speed (S.P.M.) | 2500 |
| Clearance Under Presser Foot | 25/64" (10mm) |
| Stitch Length | 5 s.p.i. (5mm) |
| Work Space | 10" (255mm) |
| Needle | 135 x 17 |
| Bobbin | 713, Pre-wound M |
| Bed Size | 7" x 18 7/8" (178mm x 480mm) |
| Needle Bar Stroke | 1-11/32" (34mm) |
| Hook | 712 |
| Zig-Zag Stitch Width | 3/8" (9.5mm) |
Catalogue
The Consew 146RB-1A-1 documents Consew publishes, on their own site. They open in a new tab.
Open the catalogue (PDF)Open the instruction manual (PDF)Open the parts book (PDF)
And the catalogues Consew publishes for their whole range.
The file is published and updated by the manufacturer; it is not copied here, so nobody downloads an outdated version.
Product information, photographs and specifications: Consew. No prices or stock here: ask us and we will get back to you.
