Consew

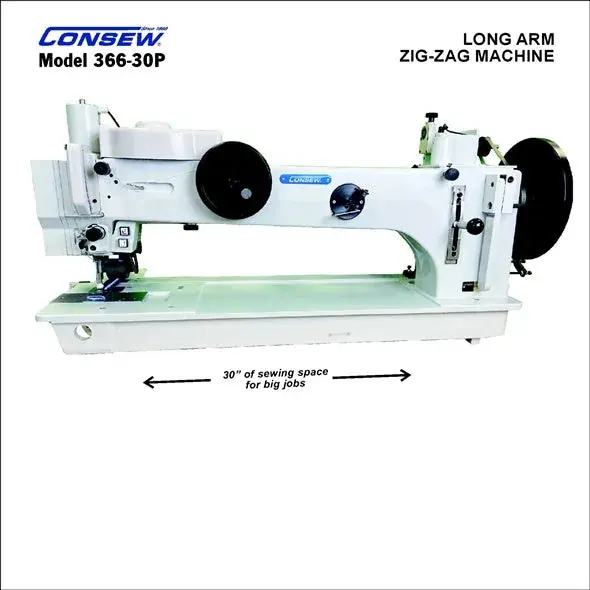

Consew 366-30P

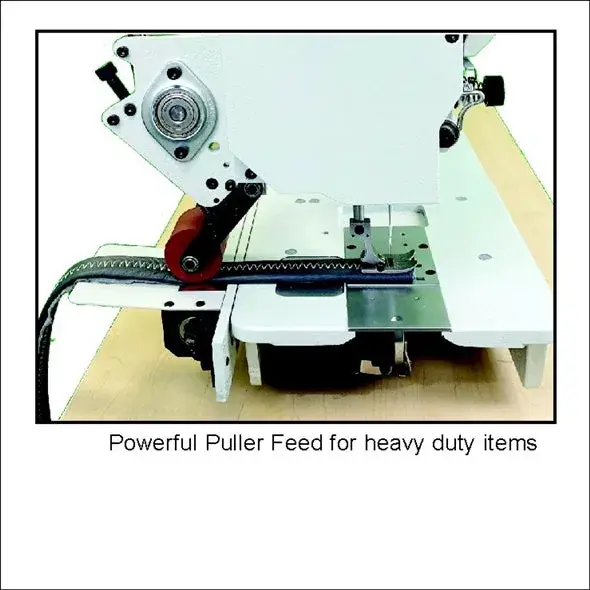

Heavy Duty, Single Needle, Straight Stitch and Zig-Zag, Long-Arm Machine, WITH PULLER
Product features
1 / 4
Heavy Duty, Single Needle, Straight Stitch and Zig-Zag, Long-Arm Machine, WITH PULLER

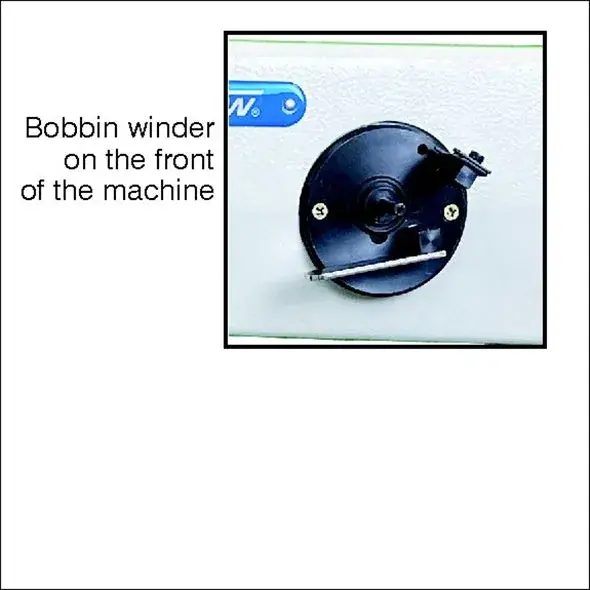

With: Large Transverse Shuttle Hook And Bobbin, Bobbin Winder On Front of Machine, Presser Foot Lift Up To 20mm, Up To 12mm Zig-Zag, Comes with 3 cams.
(Also available is the 366-30 without the puller.)
Specifications
| Number of Needles | 1 (Single) |
|---|---|
| Feeding Mechanism | Drop Feed |
| Workspace | Long Arm |
| Standard or Full Function | Standard Functions |
| Stitch Length | 10mm |
| Work Space | 760mm x 175mm |
| Needle Bar Stroke | 50.8mm |
| Lubrication | Manual |
| Sewing Speed | 600 rpm |
| Thread Take-Up Stroke | 96mm |
| Shuttle Hook | KSP-204N |
| Needle Size | DY x 3 25# |
| Presser Foot Lift Height (By Hand) | 13mm |
| Presser Foot Lift Height (By Knee) | 20mm |
| Motor | 750W Clutch Motor |
| Zig-Zag Stitch Width | 0-12mm |
Catalogue
The Consew 366-30P documents Consew publishes, on their own site. They open in a new tab.
And the catalogues Consew publishes for their whole range.
The file is published and updated by the manufacturer; it is not copied here, so nobody downloads an outdated version.
Product information, photographs and specifications: Consew. No prices or stock here: ask us and we will get back to you.
