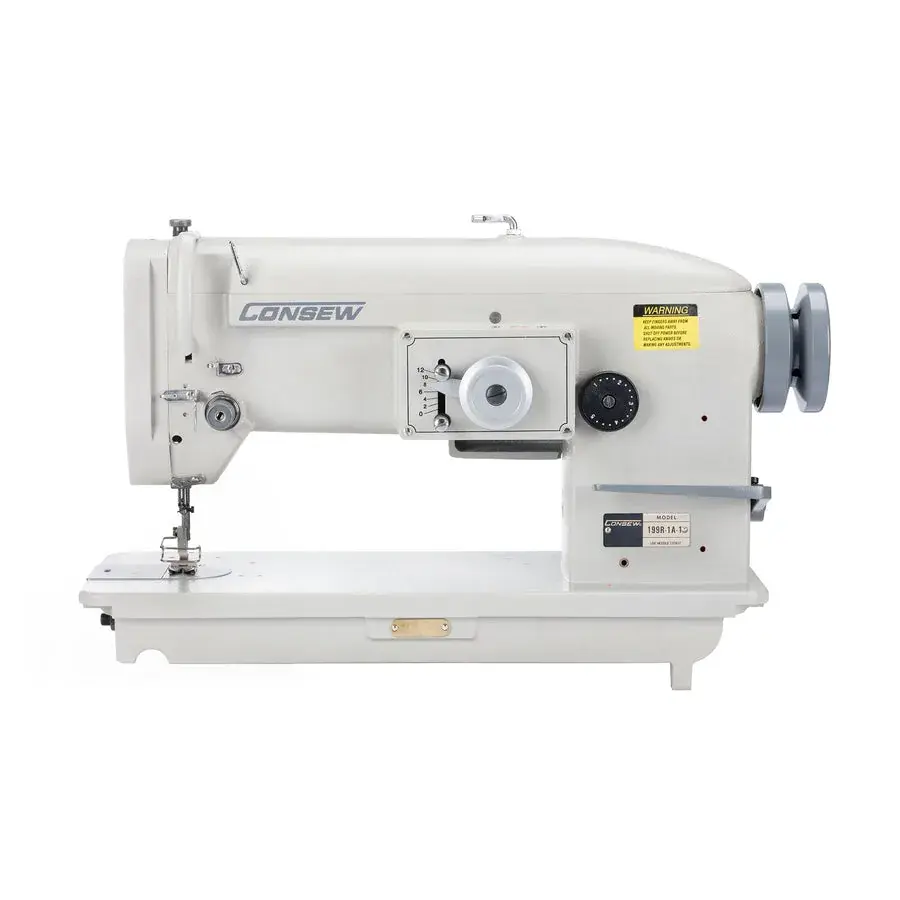

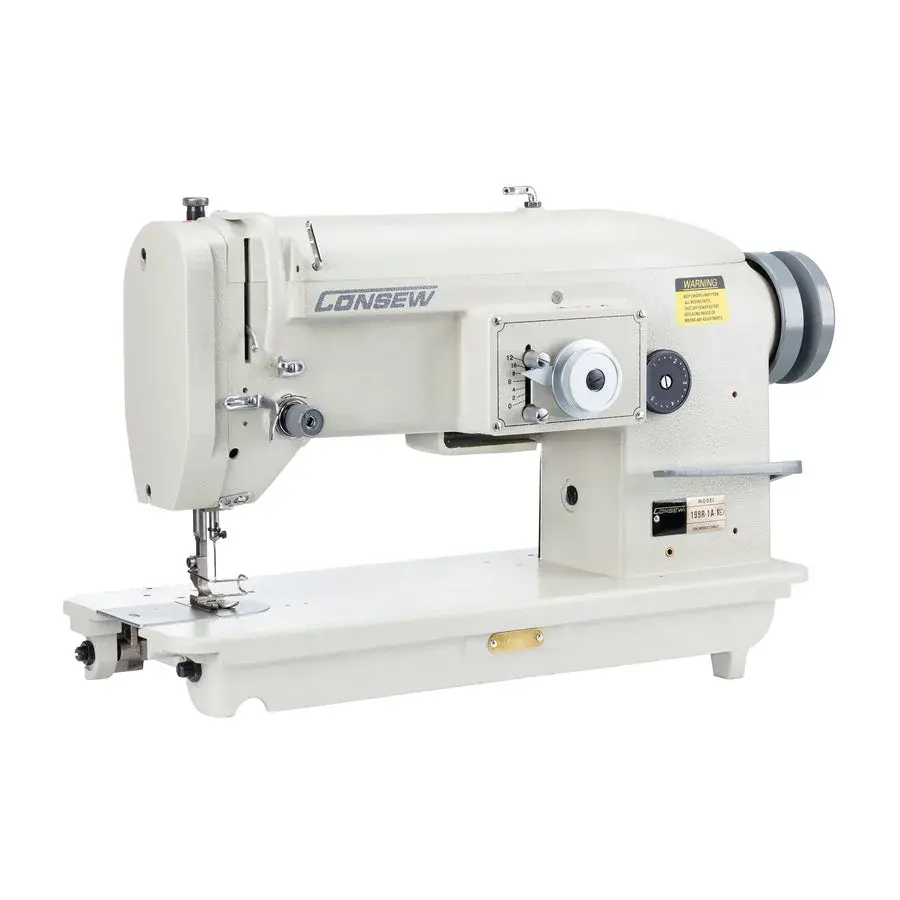

Consew 199R-1A-1
Single Needle, Drop Feed, Zig-Zag, Lockstitch Machine
Product features
1 / 8
Single Needle, Drop Feed, Zig-Zag, Lockstitch Machine
With: Horizontal Axis Transverse Rotary Hook, Reverse Feed, Combination Zig-Zag and Straight Stitcher
Specifications
| Number of Needles | 1 (Single) |
|---|---|
| Feeding Mechanism | Needle Feed |
| Workspace | Standard Workspace |
| Standard or Full Function | Standard Functions |
| Speed, Max (S.P.M.) | Zig-Zag 2700, Straight 3000 |
| Clearance Under Presser Foot | 15/64" (6mm) |
| Stitch Length | 5 s.p.i. (5mm) |
| Work Space | 10" (258mm) |
| Needle | 16 x 95 |
| Bobbin | Metal B75, Pre-wound L |
| Bed Size | 7 x 18 7/8" (178mm x 480mm) |
| Needle Bar Stroke | 1 11/32" (34mm) |
| Hook | B-70 |
| Zig-Zag Stitch Width | 3/8" (9.5mm) |
Catalogue
The Consew 199R-1A-1 documents Consew publishes, on their own site. They open in a new tab.
Open the catalogue (PDF)Open the instruction manual (PDF)Open the parts book (PDF)
And the catalogues Consew publishes for their whole range.
The file is published and updated by the manufacturer; it is not copied here, so nobody downloads an outdated version.
Product information, photographs and specifications: Consew. No prices or stock here: ask us and we will get back to you.
