Product features
1 / 8

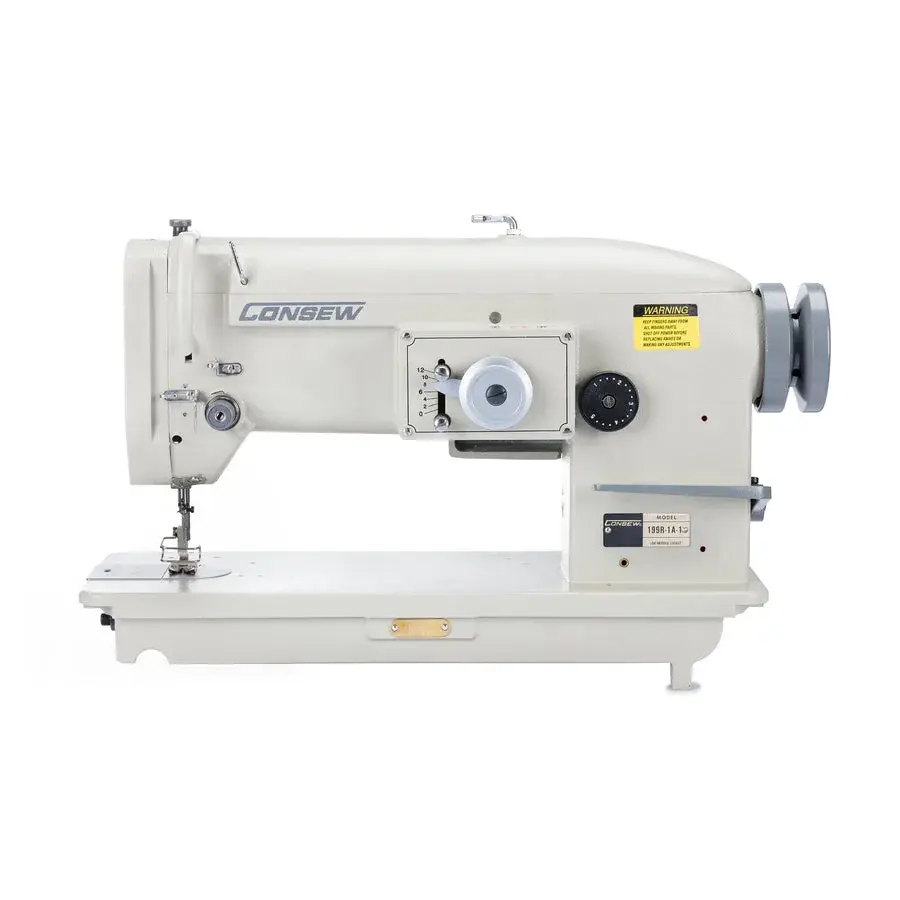

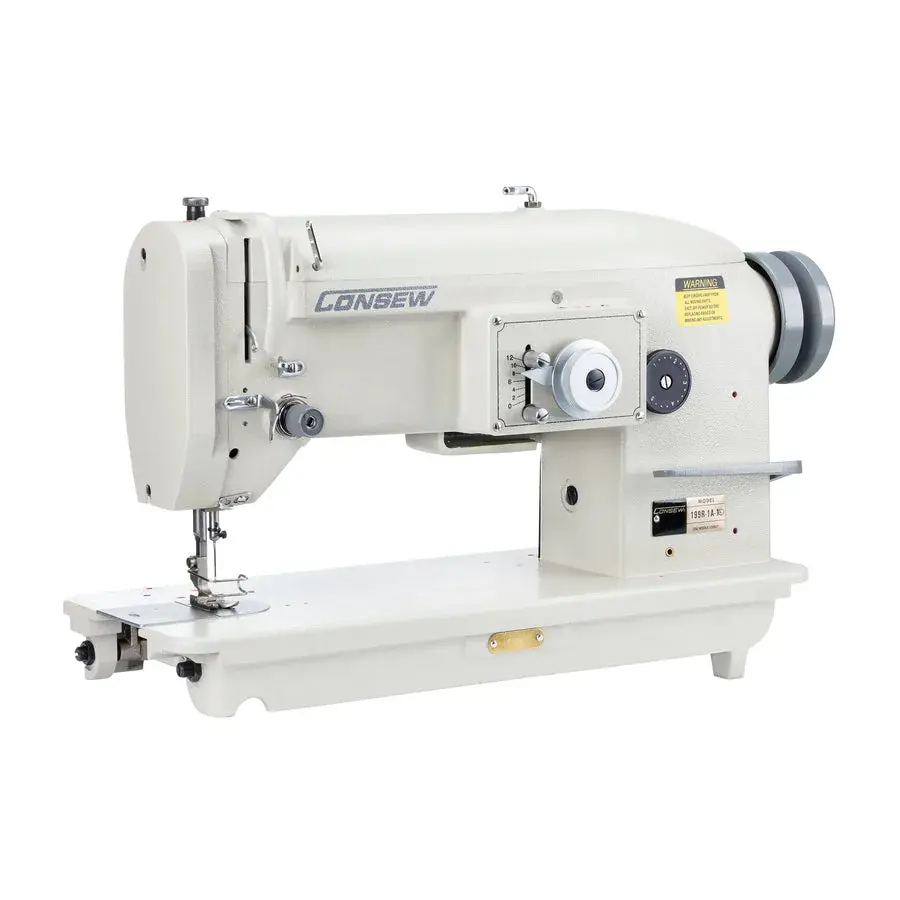

The 199RB series is a versatile single-needle, drop-feed, zig-zag lockstitch machine designed for a wide range of sewing applications. It features a horizontal axis transverse rotary hook, reverse feed, and combination zig-zag and straight stitch capabilities. The machine is ideal for edge sewing, patch sewing, applique work, and more on materials such as leather, canvas, vinyl, and cloth. The long arm offers 10" of free space between the needle and arm, providing ample workspace for larger projects. Additionally, it includes a locking zig-zag width regulator, a large bobbin, and reverse stitching functionality for enhanced performance and durability. This machine is available in various stitch configurations, making it adaptable to different sewing needs.
Specifications
| Number of Needles | 1 (Single) |
|---|---|
| Feeding Mechanism | Needle Feed |
| Workspace | Standard Workspace |
| Standard or Full Function | Standard Functions |
| Speed, Max (S.P.M.) | Zig-Zag 2000, Straight 2000 |
| Clearance Under Presser Foot | 15/64" (6mm) |
| Stitch Length | 5 s.p.i. (5mm) |
| Work Space | 10" (258mm) |
| Needle | 135 x 17 |
| Bobbin | Metal CS713, Pre-wound M |
| Bed Size | 7" x 18 7/8" (178mm x 480mm) |
| Weight | 78 lbs |
| Needle Bar Stroke | 1 11/32" (34mm) |
| Hook | CS712 |
| Zig-Zag Stitch Width | 3/8" (9.5mm) |
Videos
Catalogue
The Consew 199RB-1A-1 documents Consew publishes, on their own site. They open in a new tab.
Open the catalogue (PDF)Open the instruction manual (PDF)Open the parts book (PDF)
And the catalogues Consew publishes for their whole range.
The file is published and updated by the manufacturer; it is not copied here, so nobody downloads an outdated version.
Product information, photographs and specifications: Consew. No prices or stock here: ask us and we will get back to you.
