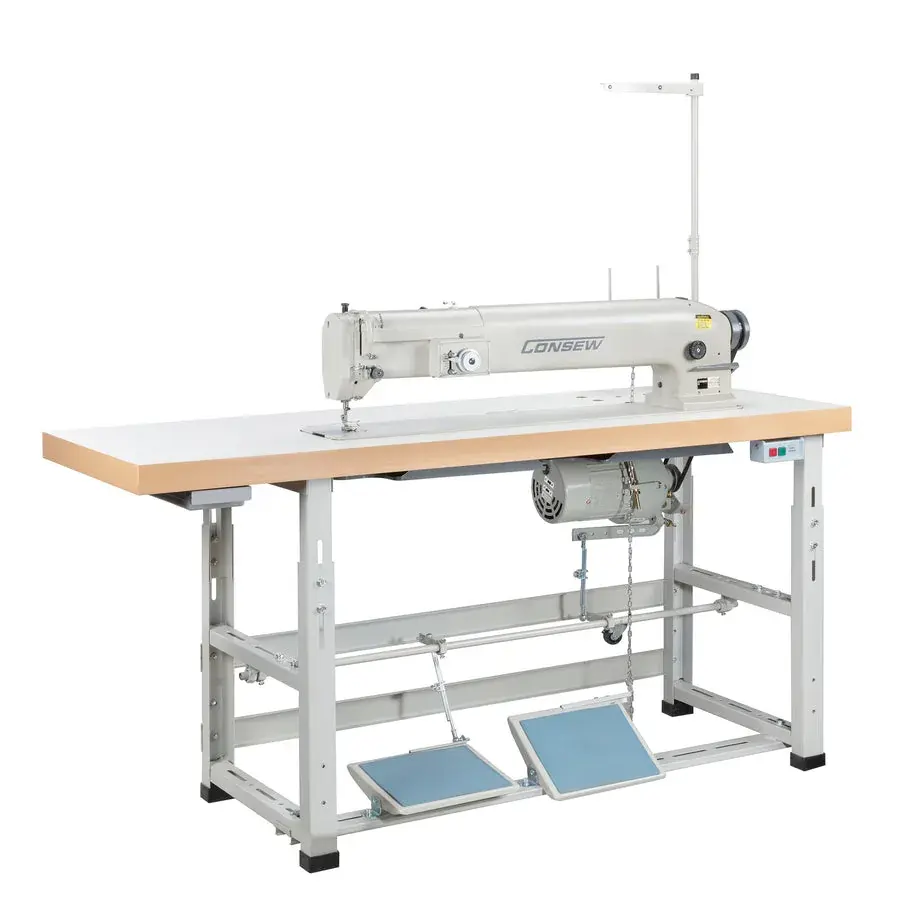

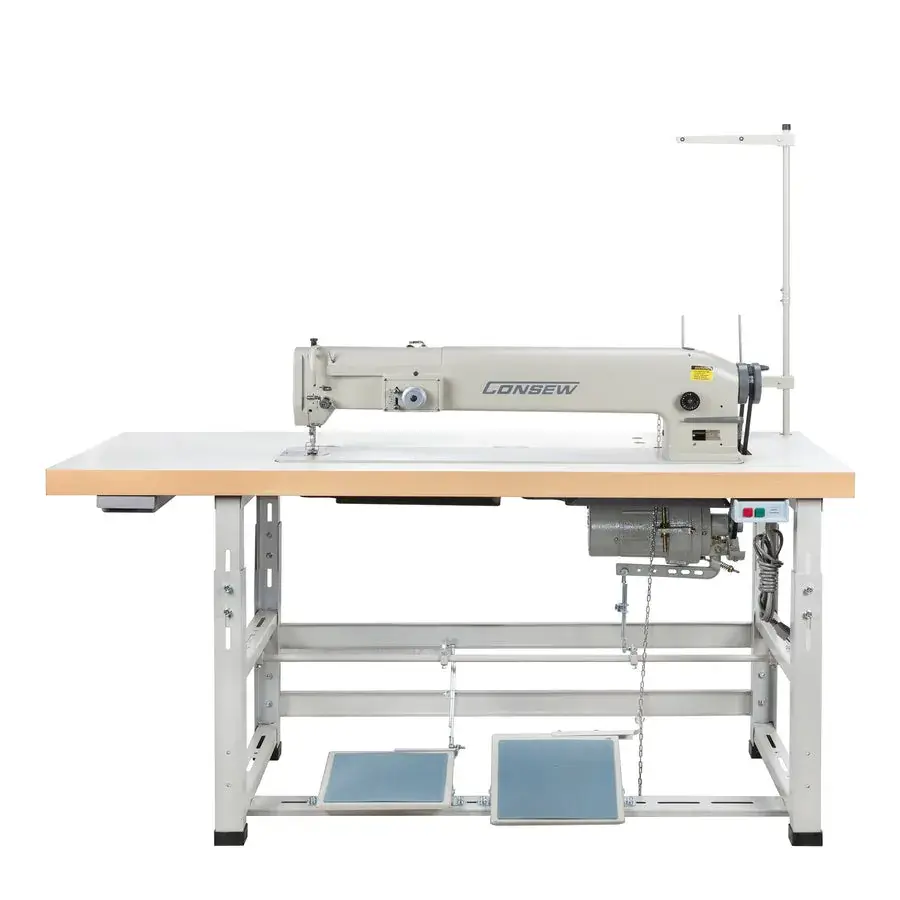

Consew 199RBL-1A-1
Single Needle, Drop Feed, Zig-Zag, Lockstitch Machine
Product features
1 / 8
Single Needle, Drop Feed, Zig-Zag, Lockstitch Machine
With: Horizontal Axis Transverse Rotary Hook, Reverse Feed, Combination Zig-Zag and Straight Stitcher
Applications
Used for edge sewing, patch sewing, attaching and abutting work, applique work, and binding
Suitable for materials like leather, vinyl, canvas, cloth, lace, and similar materials
Federal stitch 304
Features
Horizontal axis transverse rotary hook
Maximum zig-zag width: 3/8" (9.5mm)
Straight stitcher when zig-zag is set to 'O' mm

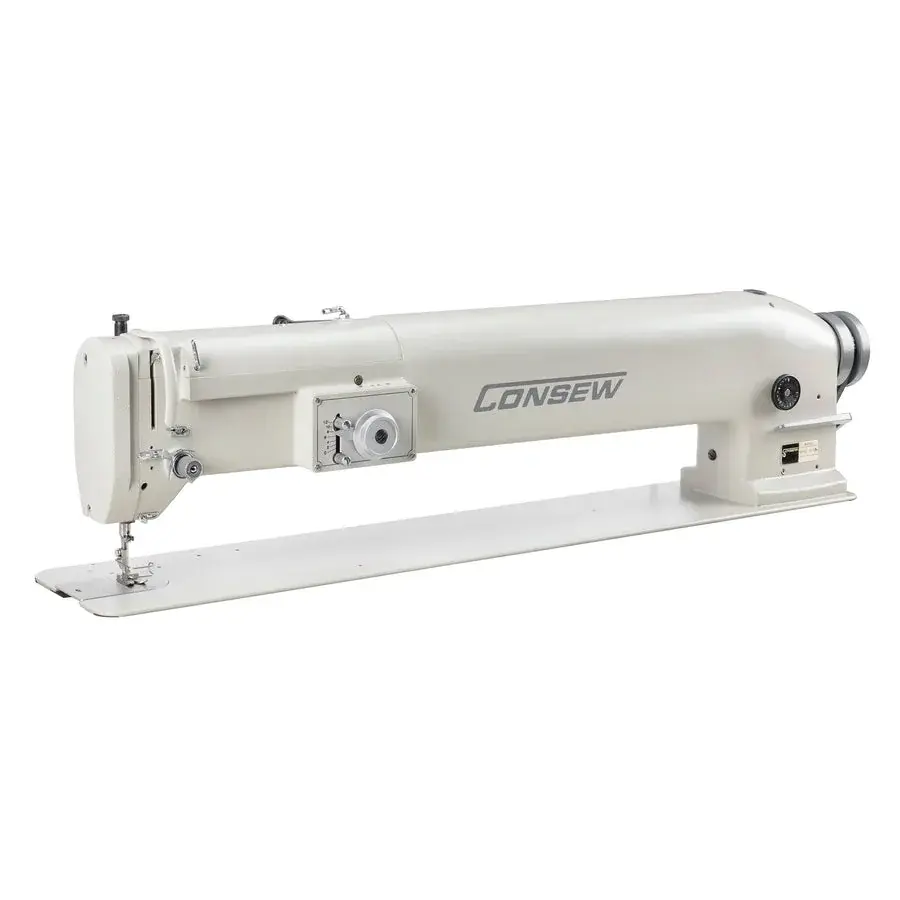

Long arm with 10" free space between needle and arm (18 7/8" bed models)

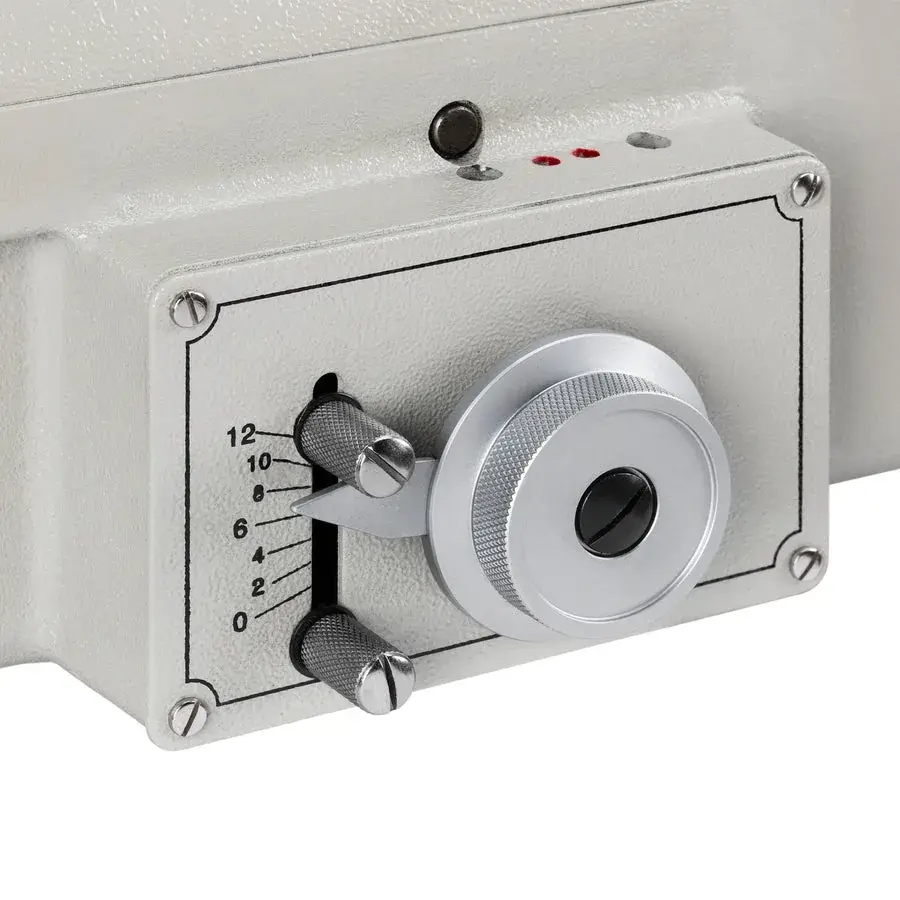

Locking zig-zag width regulator
Reverse stitching
Large bobbin with horizontal axis transverse rotary hook
Long arm (up to 30" can be ordered)
Optional: Interchangeable between 1A, 2A & 3A stitches (additional parts required)
Specifications
| Number of Needles | 1 (Single) |
|---|---|
| Feeding Mechanism | Needle Feed |
| Workspace | Long Arm |
| Standard or Full Function | Standard Functions |
| Speed, Max (S.P.M.) | Zig-Zag 2000, Straight 2000 |
| Clearance Under Presser Foot | 15/64" (6mm) |
| Stitch Length | 5 s.p.i. (5mm) |
| Work Space | 10" (258mm) |
| Needle | 135 x 17 |
| Bobbin | Metal CS713, Pre-wound M |
| Bed Size | 7" x 18 7/8" (178mm x 480mm) |
| Weight | 140 lbs |
| Needle Bar Stroke | 1 11/32" (34mm) |
| Hook | CS712 |
| Zig-Zag Stitch Width | 3/8" (9.5mm) |
Catalogue
The Consew 199RBL-1A-1 documents Consew publishes, on their own site. They open in a new tab.
Open the catalogue (PDF)Open the parts book (PDF)
And the catalogues Consew publishes for their whole range.
The file is published and updated by the manufacturer; it is not copied here, so nobody downloads an outdated version.
Data sheets, photos, videos and specifications: Consew.
