Consew
Consew 146RB-3A-1

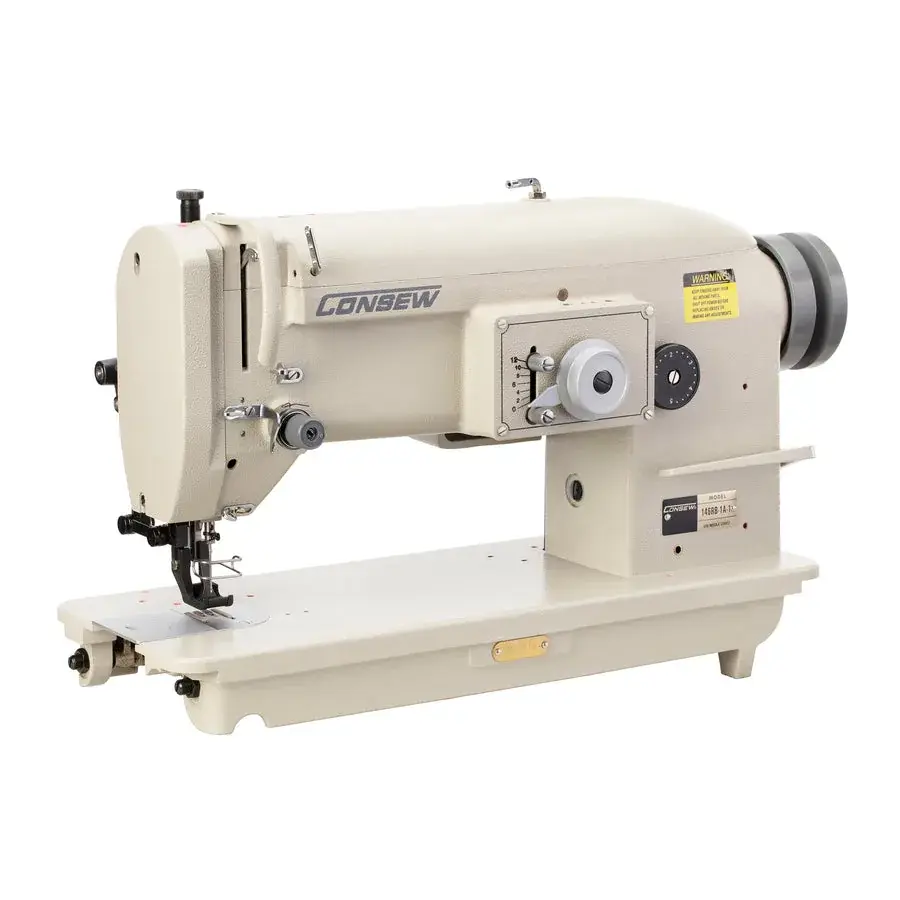

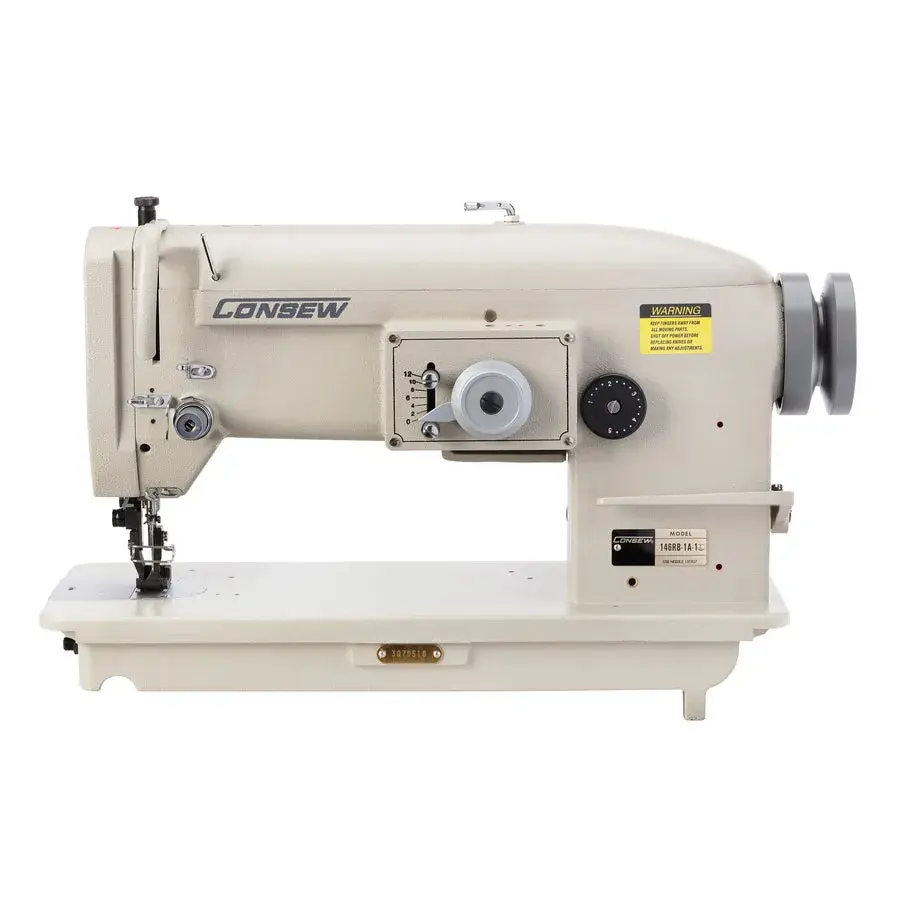

The Consew 146RB Series is a high-performance Single Needle, Walking Foot, Zig-Zag Lockstitch Machine designed for sewing heavy-duty materials with precision.
Product features
1 / 8

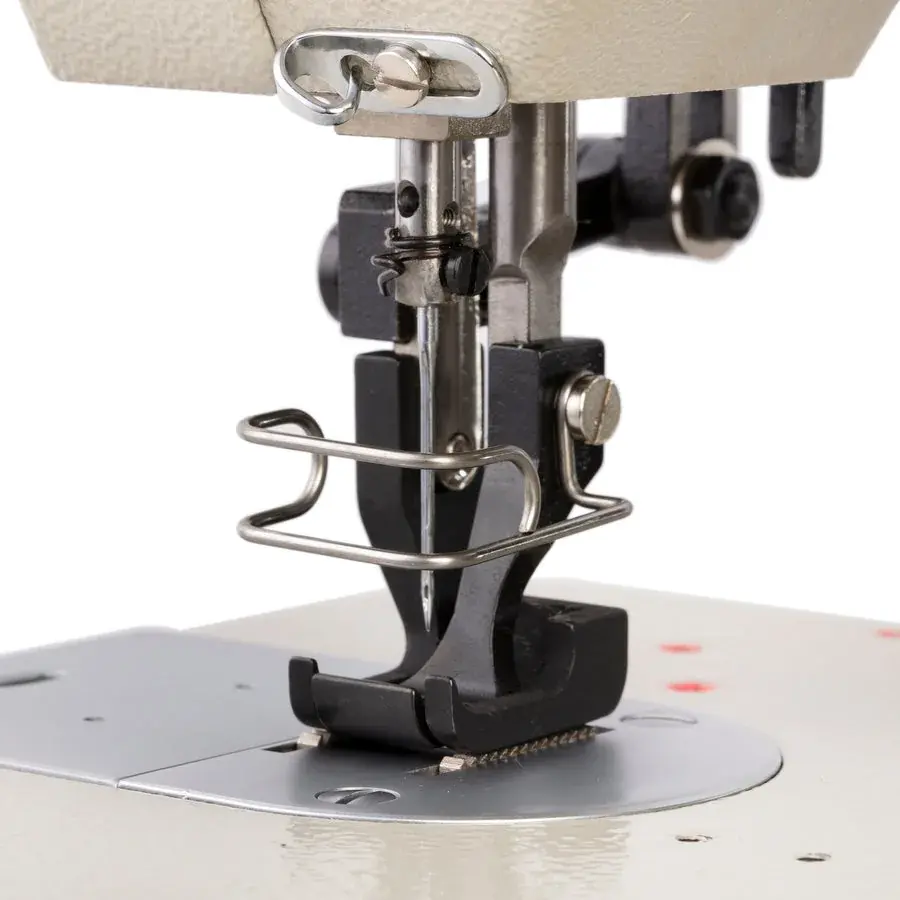

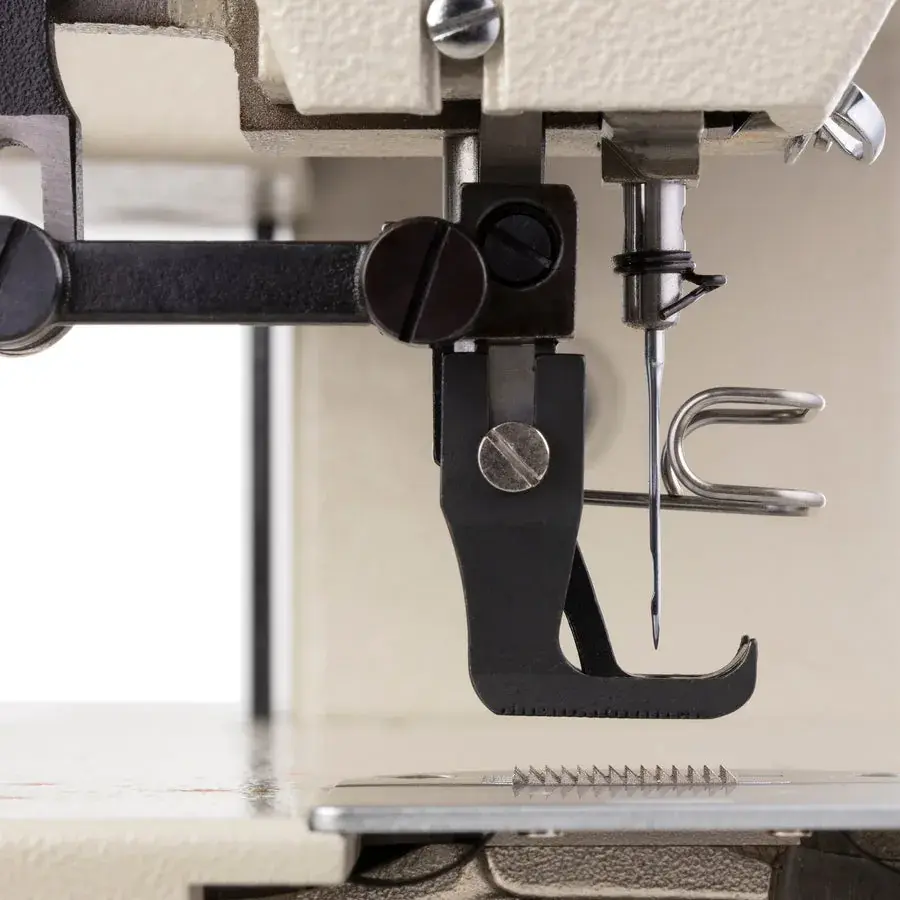

The Consew 146RB Series is a high-performance Single Needle, Walking Foot, Zig-Zag Lockstitch Machine designed for sewing heavy-duty materials with precision. It features a four-step/three-stitch zig-zag capability, making it ideal for reinforcing seams on stretch fabrics, outdoor covers, sails, and industrial textiles. Equipped with a large bobbin, a horizontal axis transverse rotary hook, and an upper feed mechanism, this machine ensures smooth operation with minimal slippage. With a maximum speed of 2500 stitches per minute and reverse stitching functionality, it offers efficiency and durability for professional applications. Additionally, it supports interchangeable stitch types (1A, 2A, and 3A) with optional parts for added versatility.
Specifications
| Number of Needles | 1 (Single) |
|---|---|
| Feeding Mechanism | Walking Foot |
| Workspace | Standard Workspace |
| Standard or Full Function | Standard Functions |
| Speed, Max (S.P.M.) | 2500 |
| Clearance Under Presser Foot | 25/64" (10mm) |
| Stitch Length | 5 s.p.i. (5mm) |
| Work Space | 10" (255mm) |
| Needle | 135 x 17 |
| Bobbin | 713, Pre-wound M |
| Bed Size | 7" × 18 7/8" (178mm × 480mm) |
| Needle Bar Stroke | 1-11/32" (34mm) |
| Hook | 712 |

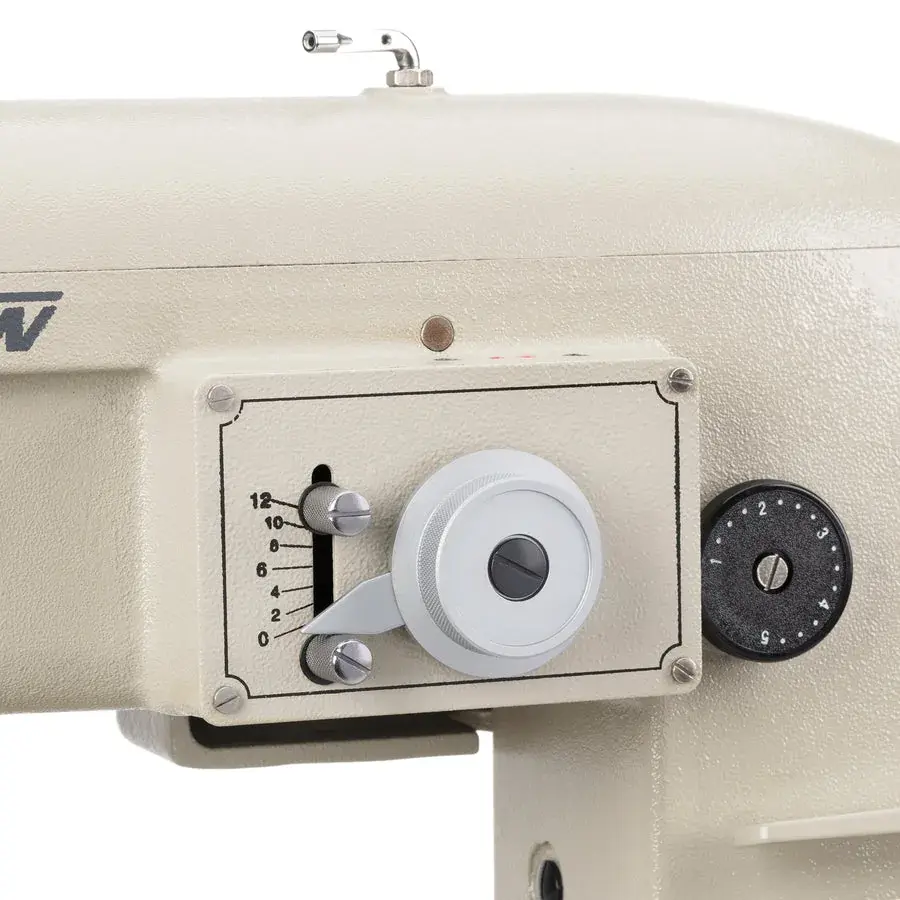

| Zig-Zag Stitch Width | 3/8" (9.5mm) |
Catalogue
The Consew 146RB-3A-1 documents Consew publishes, on their own site. They open in a new tab.

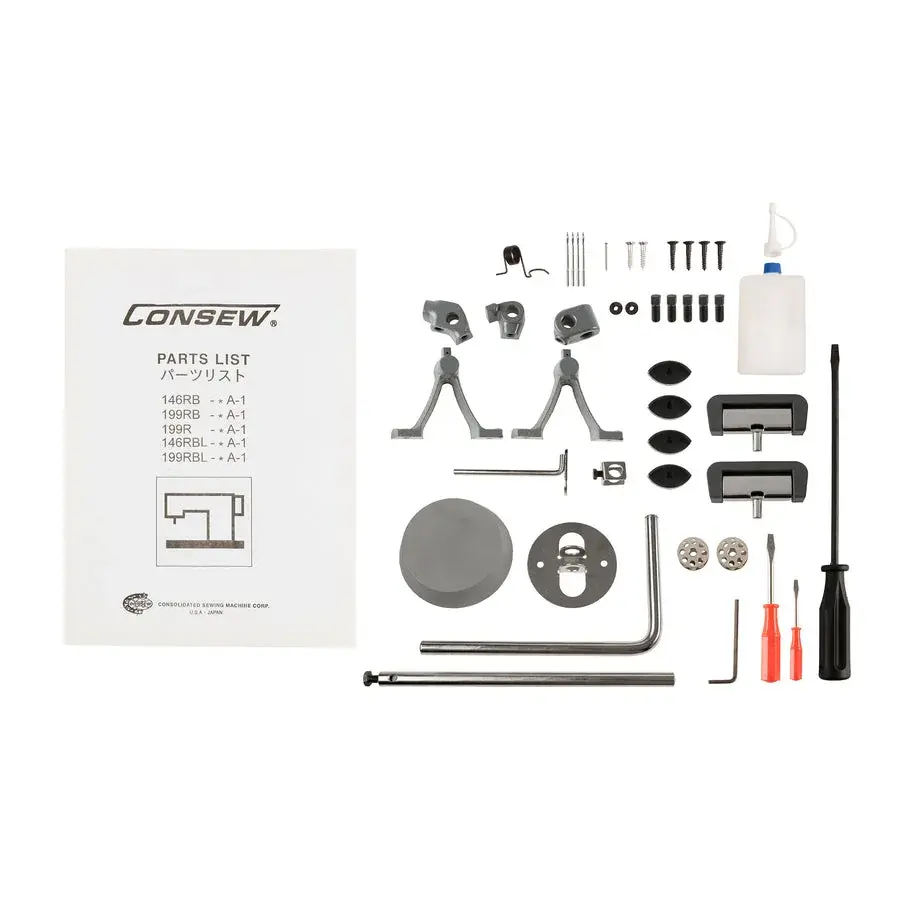

Open the catalogue (PDF)Open the instruction manual (PDF)Open the parts book (PDF)
And the catalogues Consew publishes for their whole range.
The file is published and updated by the manufacturer; it is not copied here, so nobody downloads an outdated version.
Product information, photographs and specifications: Consew. No prices or stock here: ask us and we will get back to you.
