Product features
1 / 8

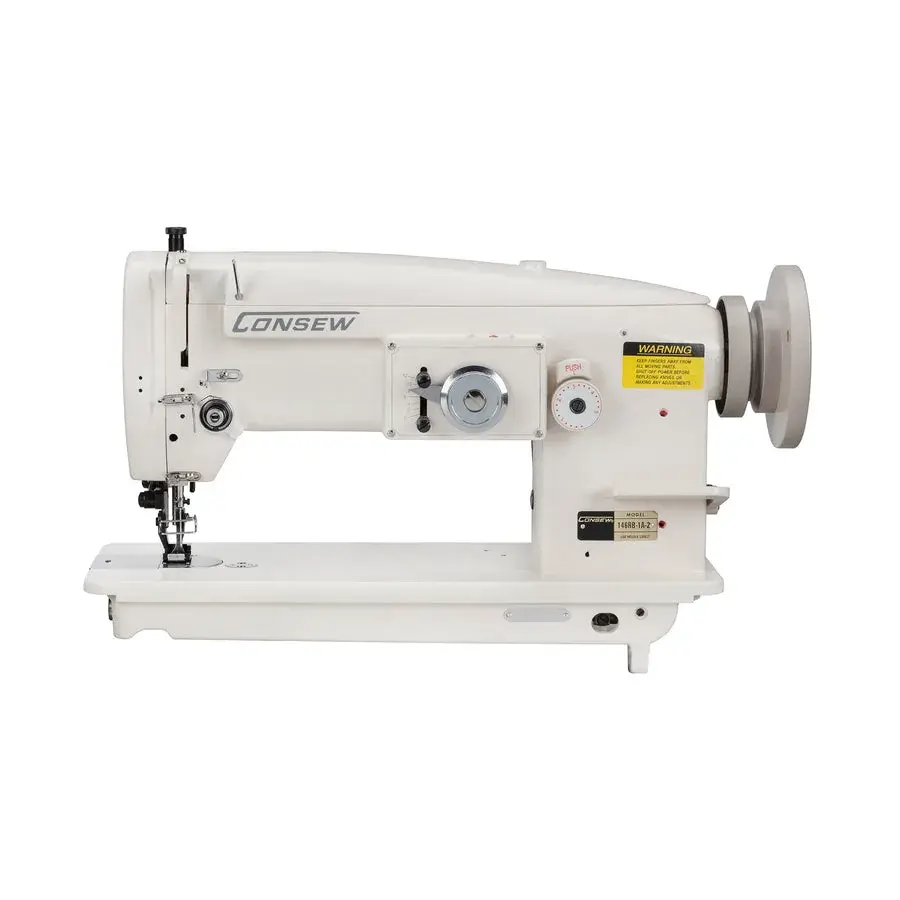

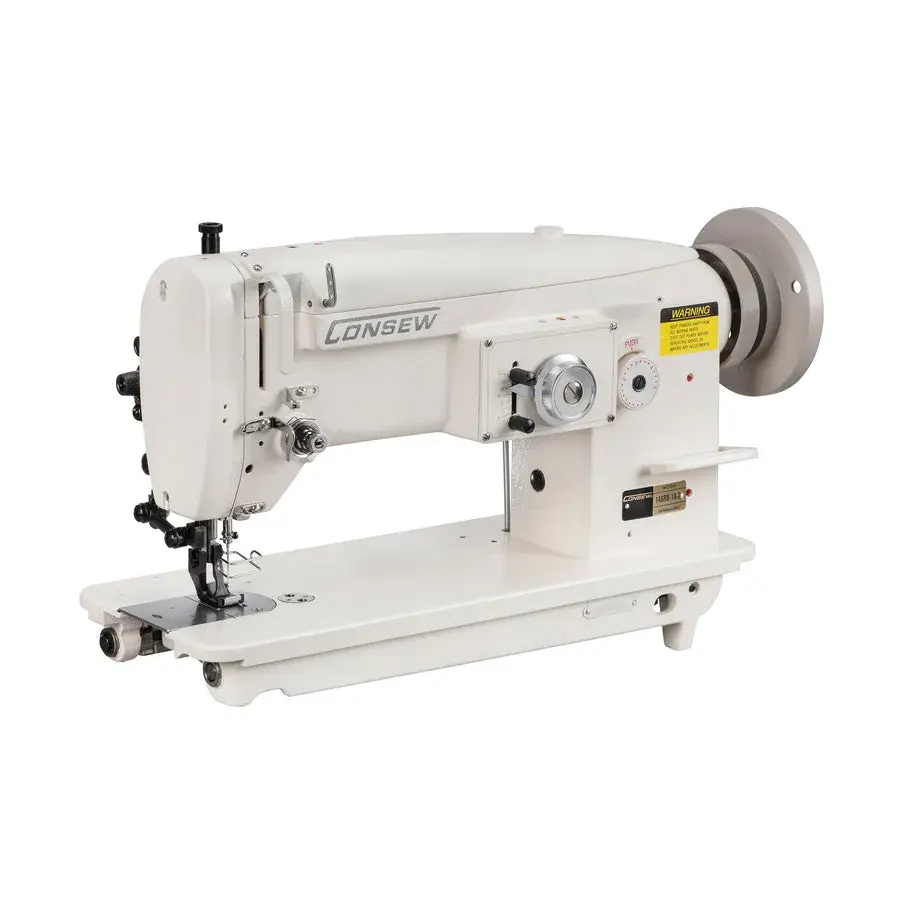

Single Needle, Drop Feed, Walking Foot, Zig-Zag Lockstitch Machine
With: Horizontal Axis Transverse Rotary Hook, Large Bobbin, Wide Zig-Zag, Reverse Feed
Three step/two stitch zig-zag
For sewing elastic and other stretch materials
For stitching such products as boat and truck covers, tents, awnings, sails, parachutes, tarpaulins and similar products
Used on such materials as canvas, nylon, vinyl, leather, synthetics and similar materials
Applications
Ideal for sewing elastic and stretch materials
Suitable for boat and truck covers, tents, awnings, sails, parachutes, and tarpaulins
Works with canvas, nylon, vinyl, leather, synthetics, and similar materials
Features
Large bobbin and horizontal axis transverse rotary hook

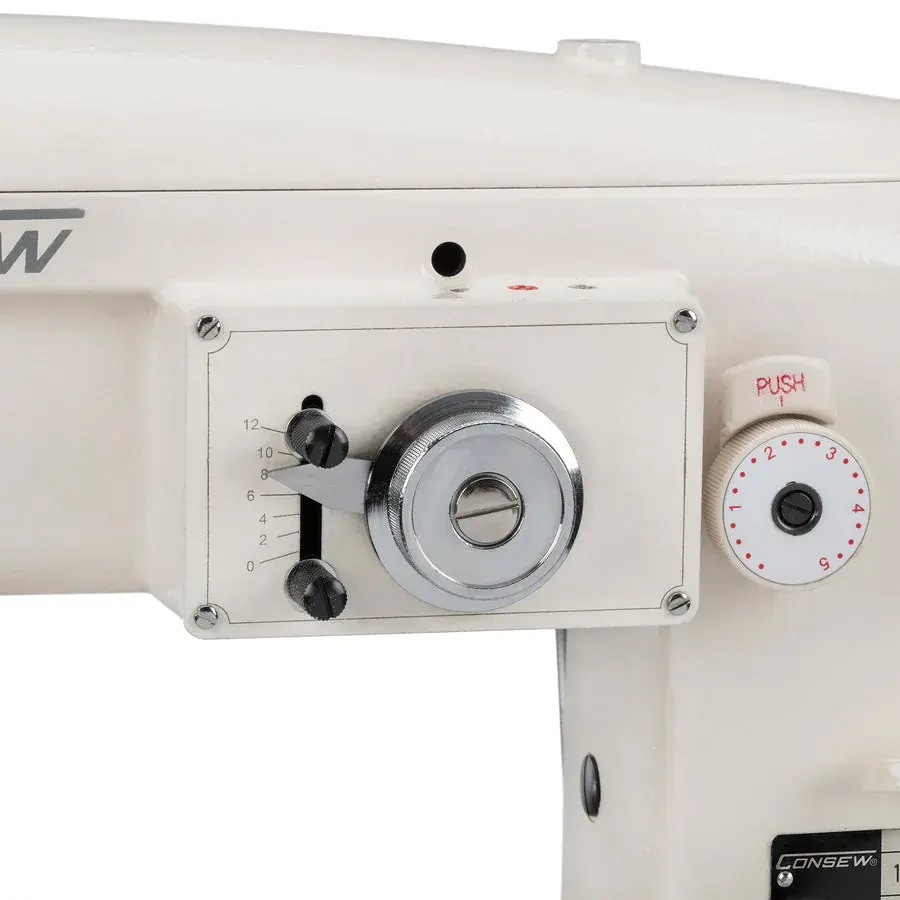

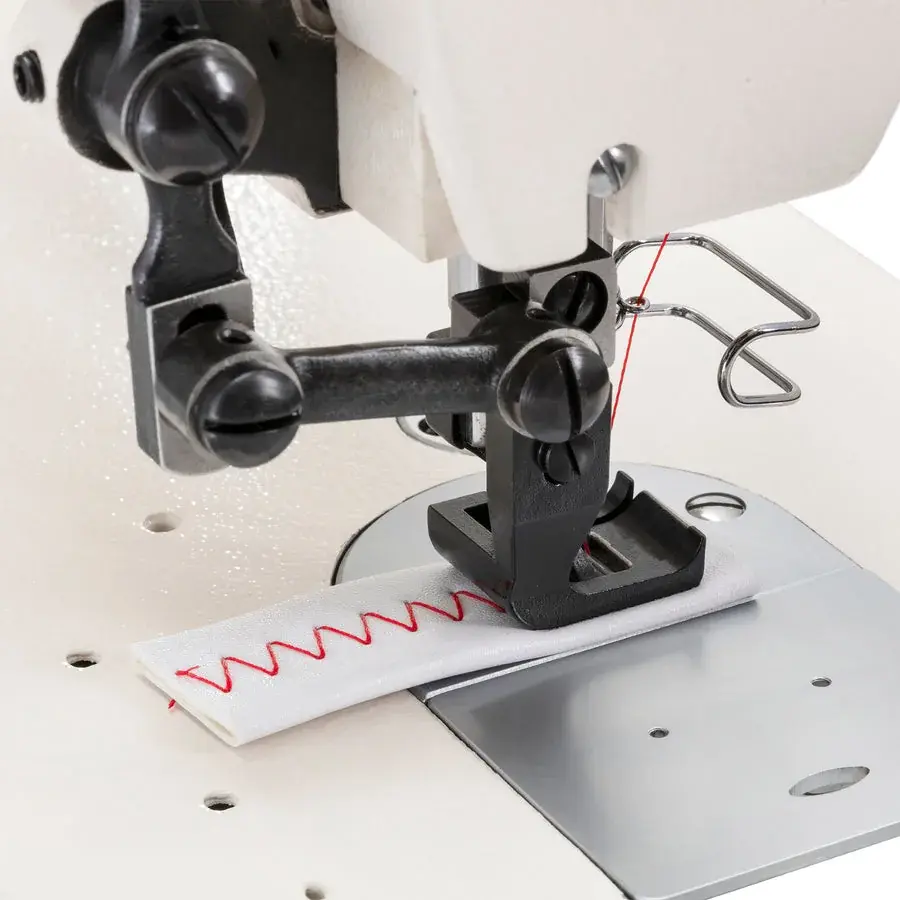

Wide zig-zag stitch capability

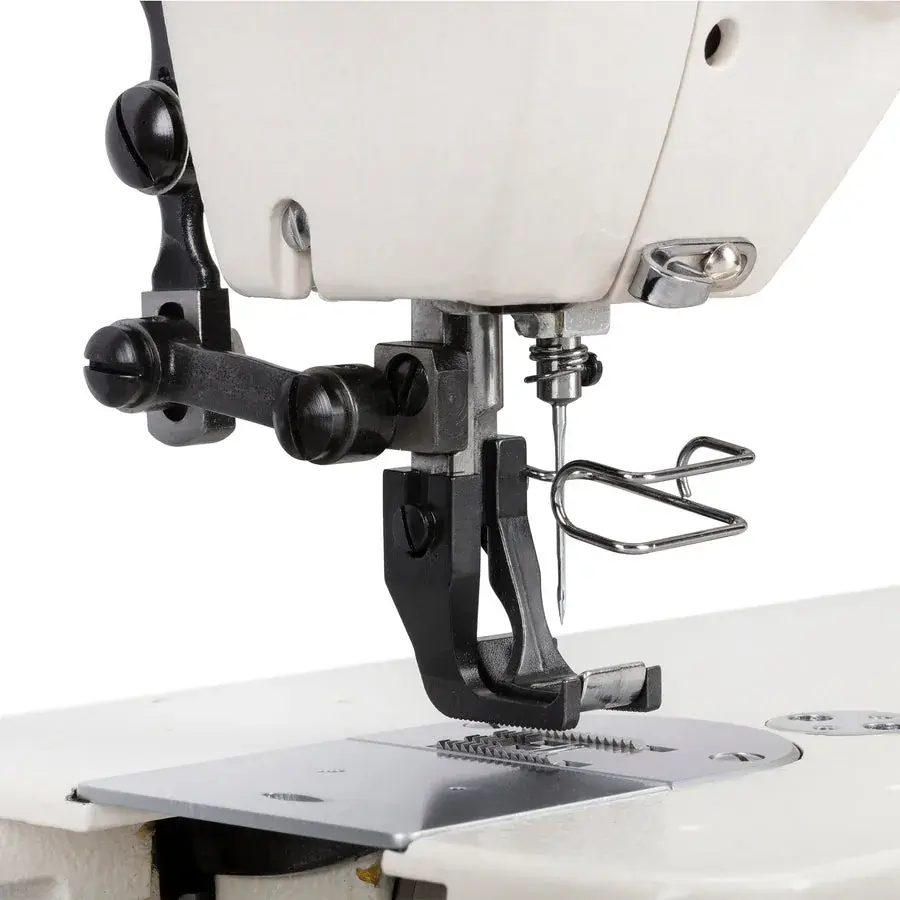

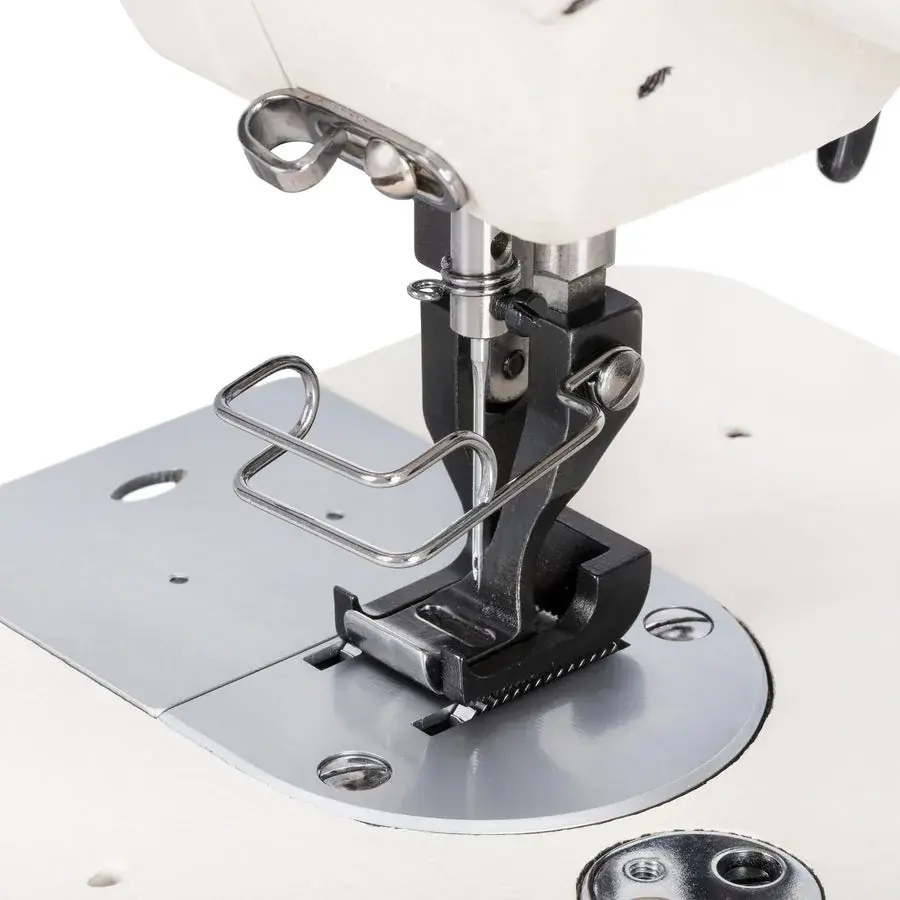

Upper feed mechanism to prevent slippage
Reverse stitching for reinforced seams
High-speed operation with up to 2500 stitches per minute
Optional interchangeability between 1A, 2A, and 3A stitches (additional parts required)
Specifications
| Speed, Max (S.P.M.) | 2500 |
|---|---|
| Clearance Under Presser Foot | 25/64" (10mm) |
| Stitch Length | 5 s.p.i. (5mm) |
| Work Space | 10" (255mm) |
| Needle | 135 x 17 |
| Bobbin | 713, Pre-wound M |
| Bed Size | 7" × 18 7/8" (178mm × 480mm) |
| Needle Bar Stroke | 1-11/32" (34mm) |
| Hook | 712 |
| Zig-Zag Stitch Width | 3/8" (9.5mm) |
Catalogue
The Consew 146RB-2A-2 documents Consew publishes, on their own site. They open in a new tab.
And the catalogues Consew publishes for their whole range.
The file is published and updated by the manufacturer; it is not copied here, so nobody downloads an outdated version.
Data sheets, photos, videos and specifications: Consew.
