Product features
1 / 8

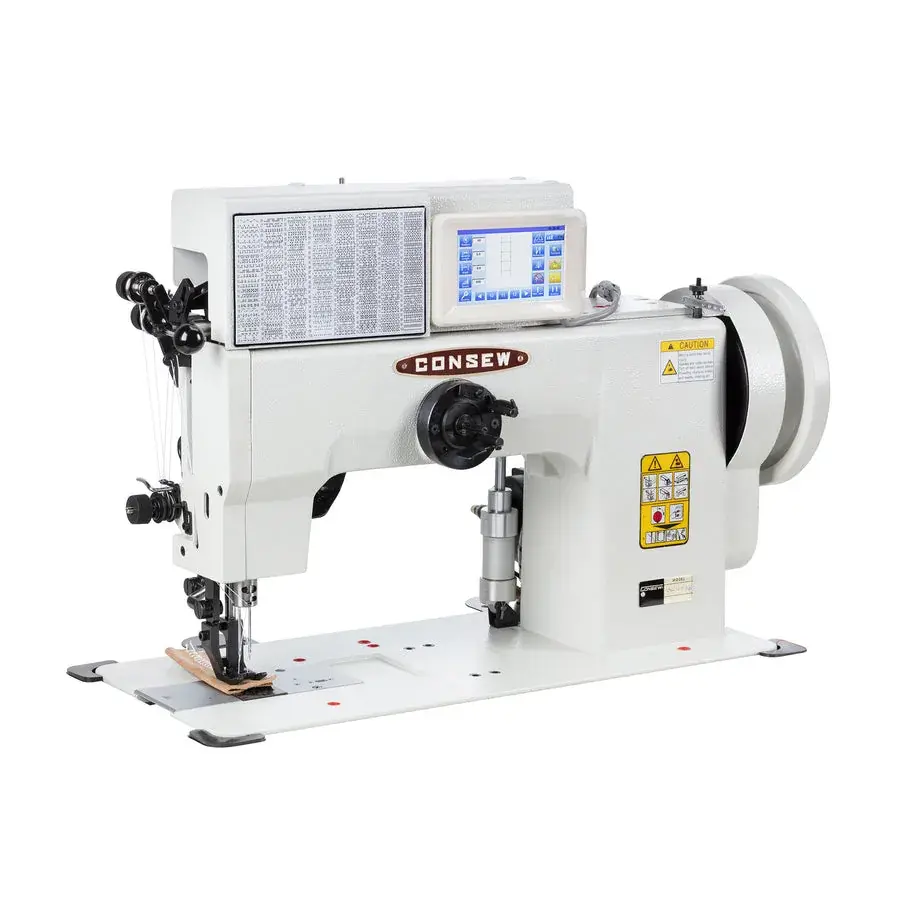

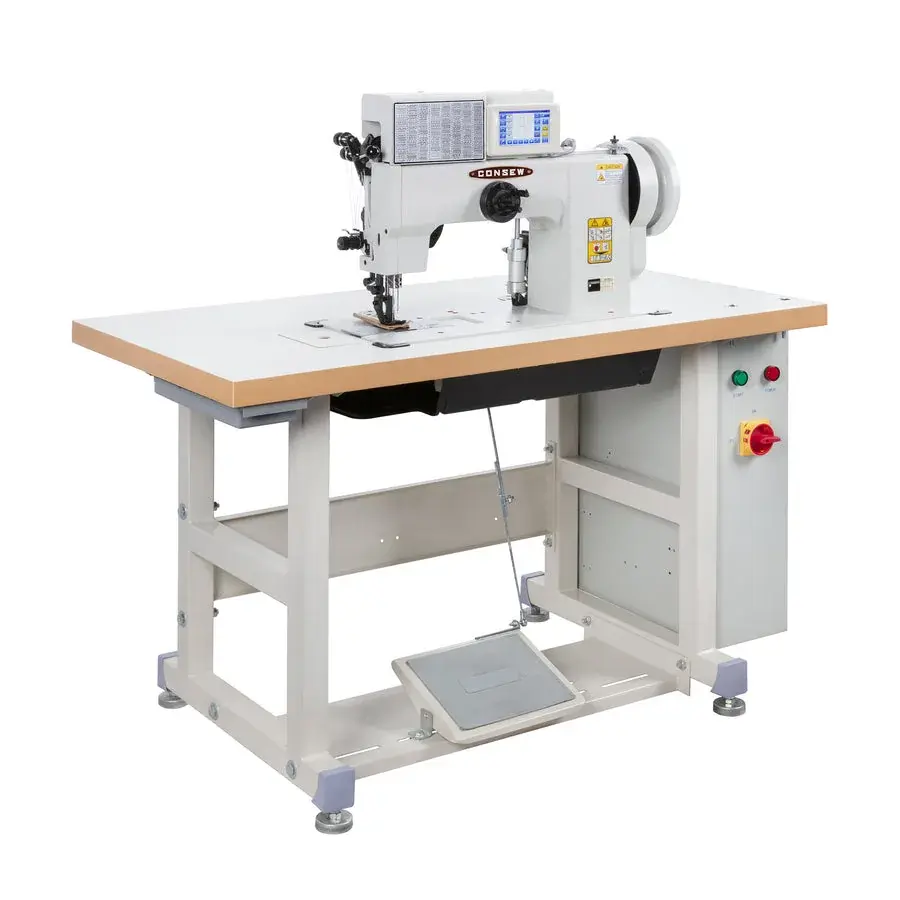

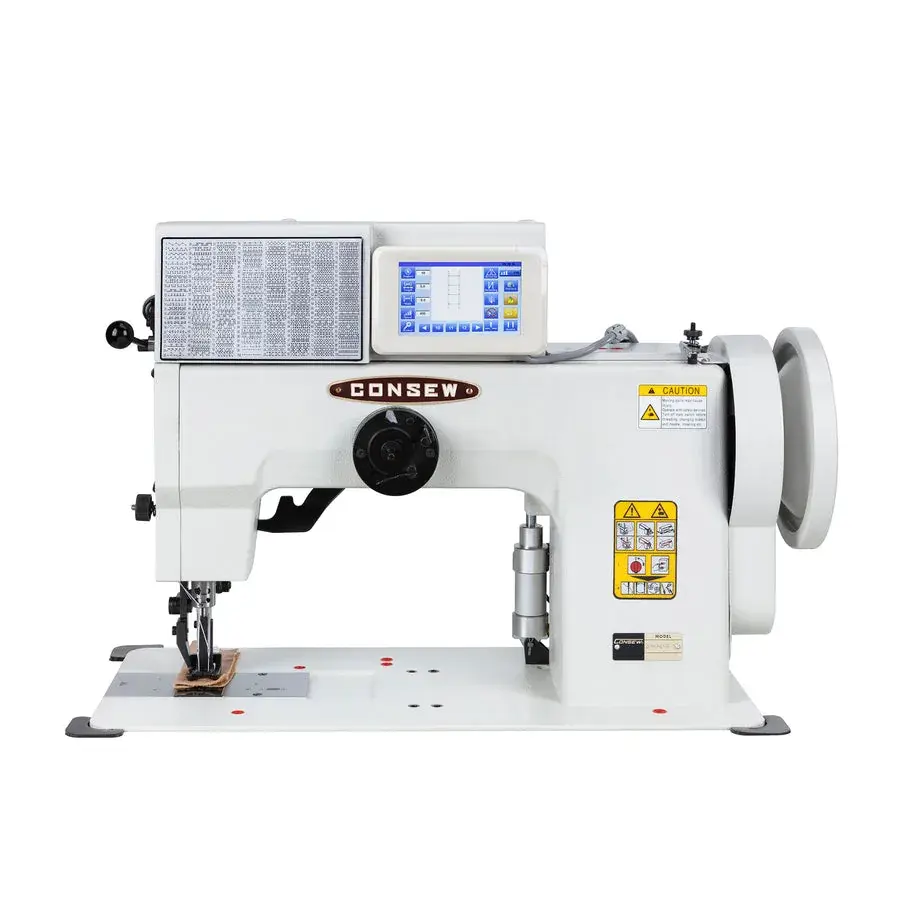

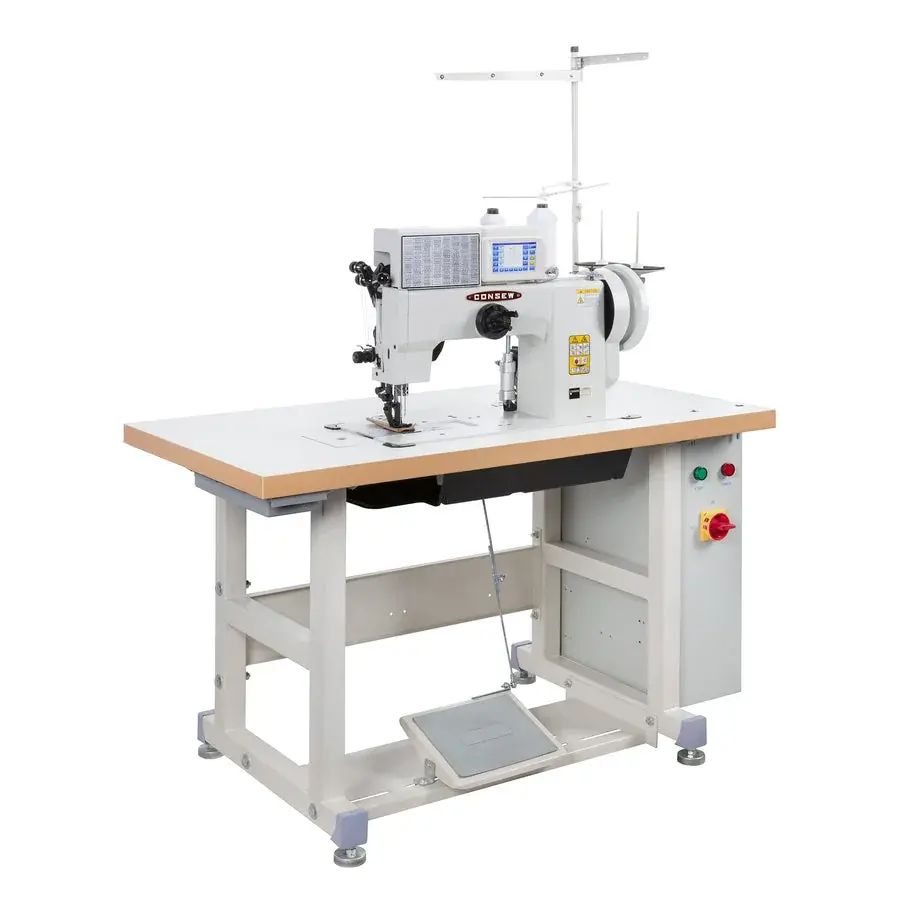

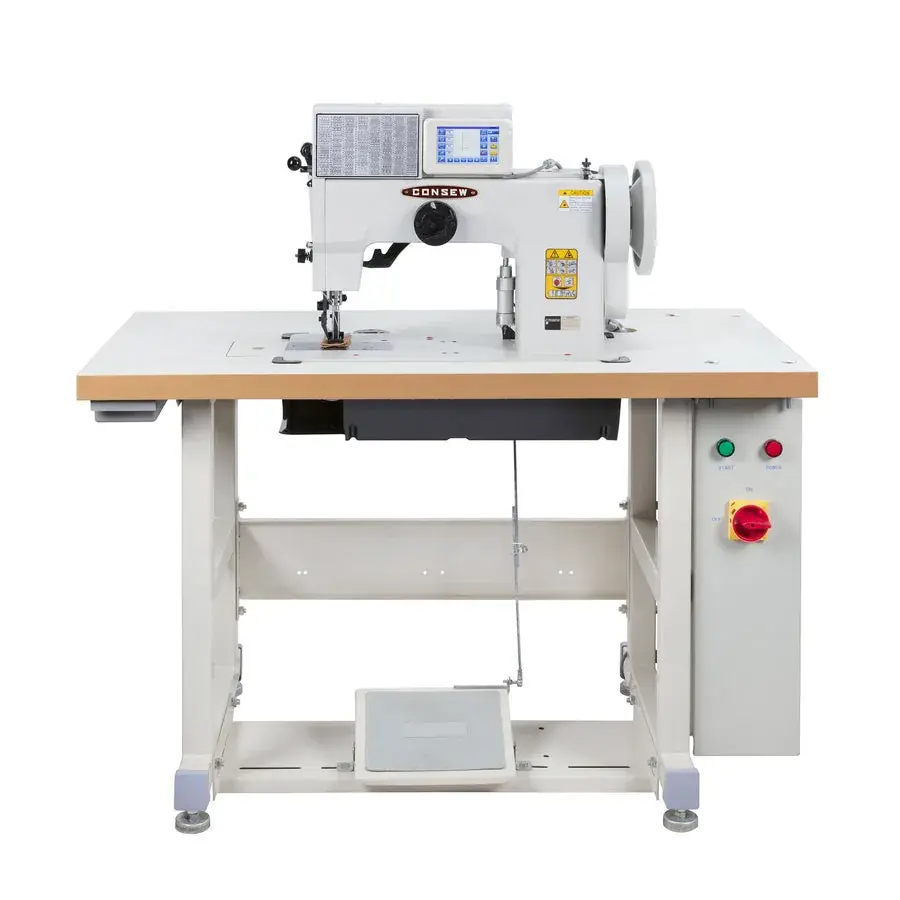

Decorative Stitch Machine: Extra Heavy Duty, Single Needle/Double Needle, Drop Feed Lockstitch Machine
With: Programmable automatic functions, electronic stitch design control for ornamental stitching, large oscillating shuttle
Applications
Suitable for decorative sewing on upholstery, shoes, suitcases, canvas, backpacks, and automotive trim
Designed for heavy-weight materials like canvas, vinyl, leather, synthetics, and coated fabrics
Ideal for sewing thick threads and materials
Features
Electronically programmable stitching
Can operate as a single-needle or double-needle machine
Large oscillating shuttle
13/16” / 20mm presser foot lift by foot (12mm by hand)
Drop feed, upper feed
Three-row feeder
Specifications
| Number of Needles | 2 (Double) |
|---|---|
| Feeding Mechanism | Drop Feed |
| Speed, Max (S.P.M.) | 800 |
| Clearance Under Presser Foot | 12mm by hand / 20mm by foot |
| Needle | DYX3 |
| Hook | KSP204N |
| Needle Distances | 6mm, 5mm |
| Motor | 500W, 3/4HP, 1400RPM |
| Stitch | 0 ~ 10 mm |

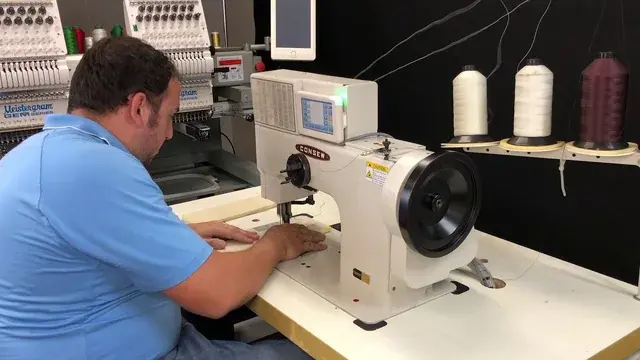

Videos
Catalogue
The Consew 2040-DSM-E documents Consew publishes, on their own site. They open in a new tab.
Open the catalogue (PDF)Open the instruction manual (PDF)Open the parts book (PDF)
And the catalogues Consew publishes for their whole range.
The file is published and updated by the manufacturer; it is not copied here, so nobody downloads an outdated version.
Data sheets, photos, videos and specifications: Consew.
