Consew

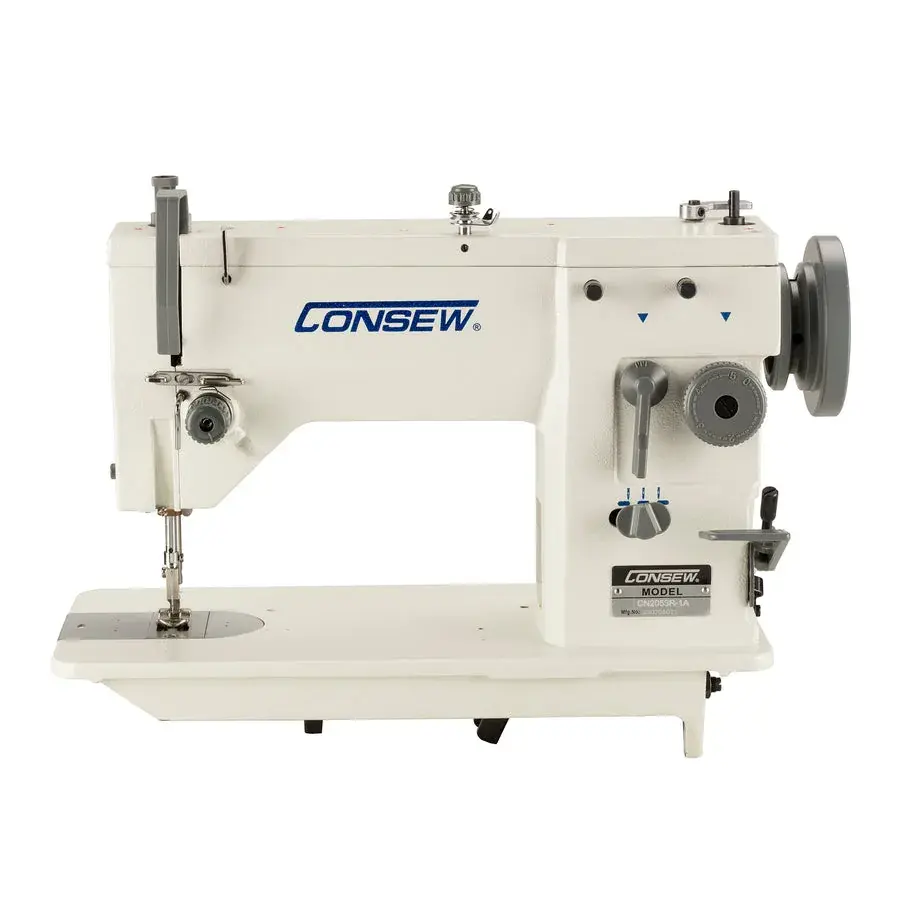

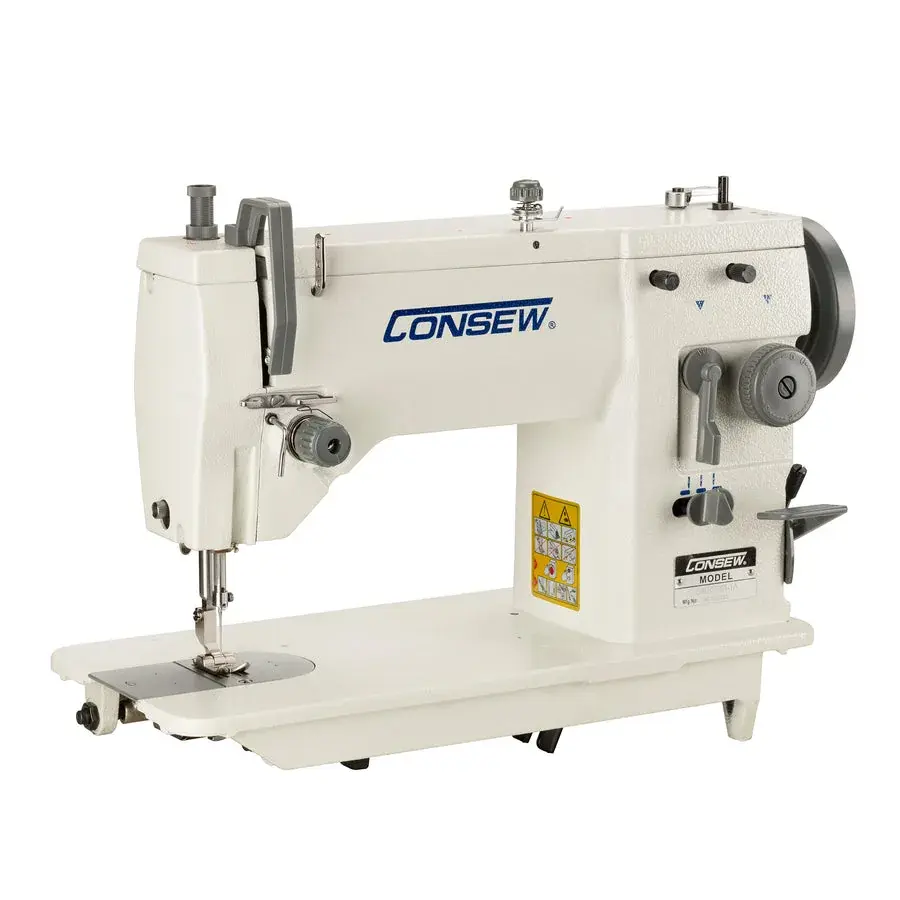

Consew CN2053R-1A
Single Needle, Drop Feed, Zig-Zag, Lockstitch Machine
Product features
1 / 7
Single Needle, Drop Feed, Zig-Zag, Lockstitch Machine
• Horizontal axis transverse rotary hook

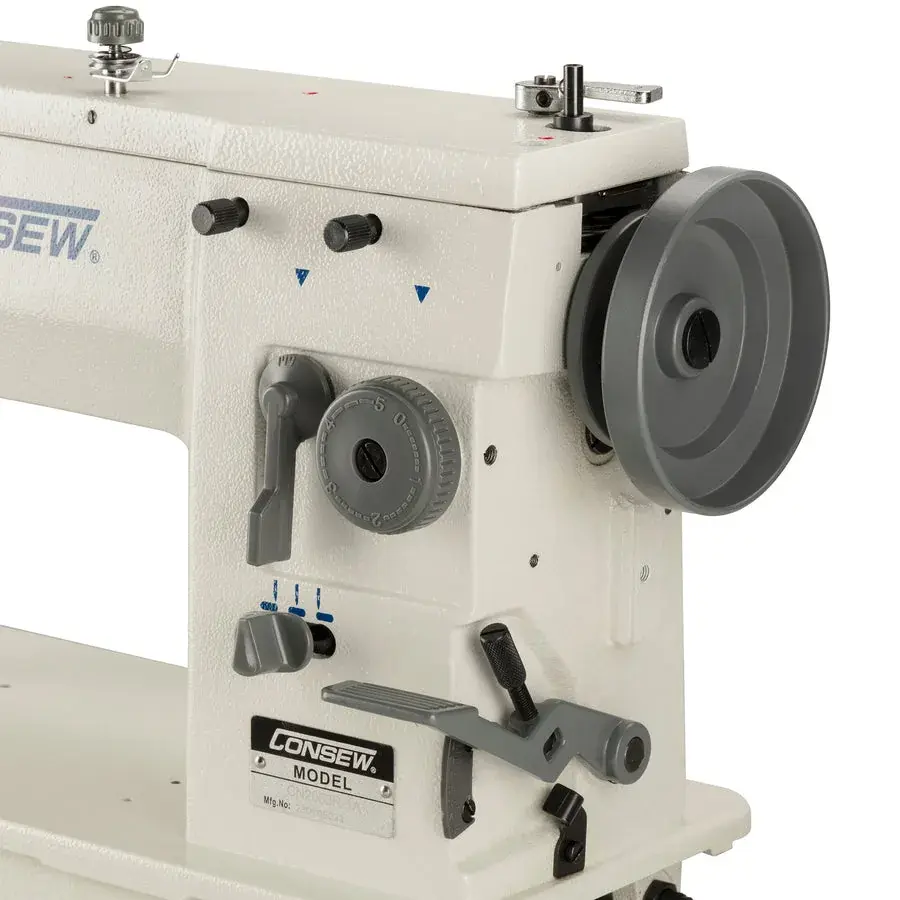

• Locking zig-zag width regulator lever • Dial stitch regulator
• Straight stitches when zig-zag set to "0" using straight stitch locking device • Stitches per minute — up to 1800*
• Reverse stitching with adjustable stitch length
• Built-in free-hand monogramming lever
• Metal gears (hardened steel)
Additional Versions Available: CN2053R-1A-BL ( in blue),
CN2053R-2A (has Stitch type 308 (used to secure lines on parachutes)
CN2253R-1A Double Needle (Double Needle for piping and cording. Top of material will show a double-needle 5 mm stitch, and bottom of material will show a zig-zag stitch)
Specifications
| Number of Needles | 1 (Single) |
|---|---|
| Feeding Mechanism | Drop Feed |
| Workspace | Standard Workspace |
| Standard or Full Function | Standard Functions |
| Stitch Type | 304/301 |
| Speed, Max (S.P.M.) | 1800 |
| Clearance Under Presser Foot | Foot 25/64” (10 mm) , Hand 15/64” (6 mm) |
| Stitch Length | 5 s.p.i. (5mm) |
| Work Space | 8 5/16" (211mm) |
| Needle | 135 x 5 |
| Bed Size | 7" 15 11/16" (178mm x 398.5mm) |
| Needle Bar Stroke | 1 6/25" (31.5mm) |
| Stitch Width, Max | 11/32" (9mm) |
Catalogue
The Consew CN2053R-1A documents Consew publishes, on their own site. They open in a new tab.
Open the catalogue (PDF)Open the instruction manual (PDF)Open the parts book (PDF)
And the catalogues Consew publishes for their whole range.
The file is published and updated by the manufacturer; it is not copied here, so nobody downloads an outdated version.
Product information, photographs and specifications: Consew. No prices or stock here: ask us and we will get back to you.
