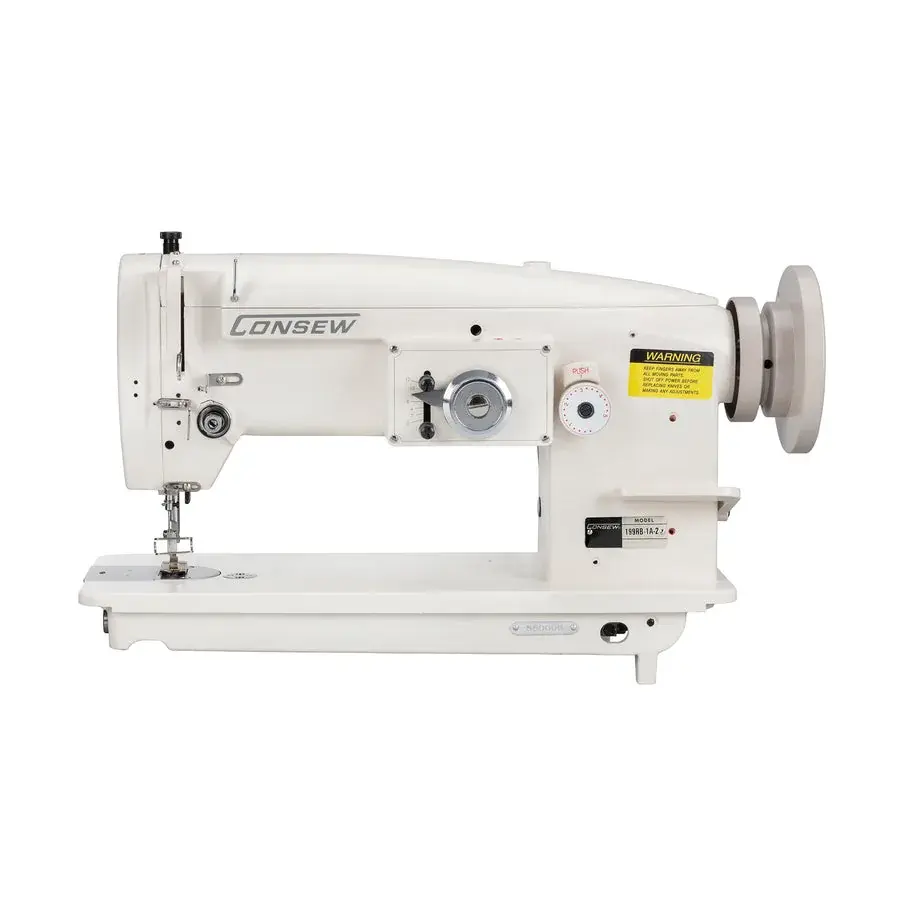

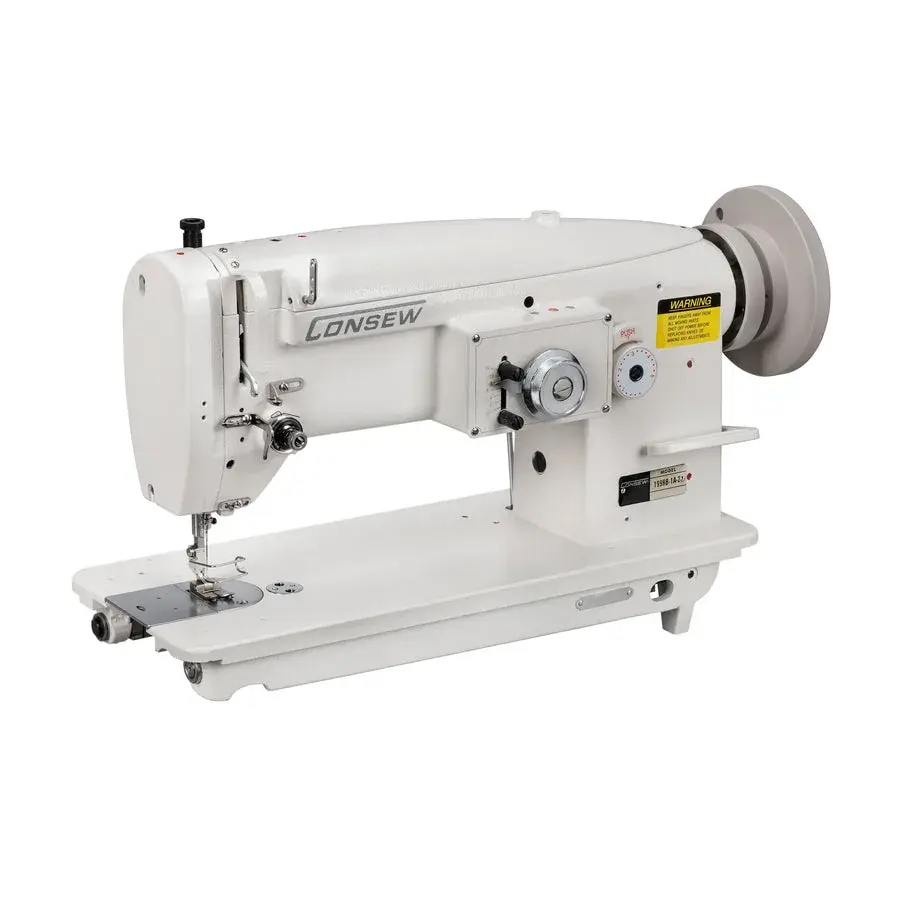

Consew 199RB-⁠3A-⁠2

The 199RB series is a versatile single-needle, drop-feed, zig-zag lockstitch machine designed for a wide range of sewing applications. It features a horizontal axis transverse rotary hook, reverse feed, and combination zig-zag and straight stitch capabilities. The machine is ideal for edge sewing, patch sewing, applique work, and more on materials such as leather, canvas, vinyl, and cloth.

The long arm offers 10" of free space between the needle and arm, providing ample workspace for larger projects. Additionally, it includes a locking zig-zag width regulator, a large bobbin, and reverse stitching functionality for enhanced performance and durability.

Each machine is manufactured with a dedicated one-cam system—either 1A, 2A, or 3A stitch type. The cam system is factory-installed, is not interchangeable, and cannot be changed after manufacture. This allows customers to select the stitch configuration best suited to their specific application at the time of purchase.

Applications

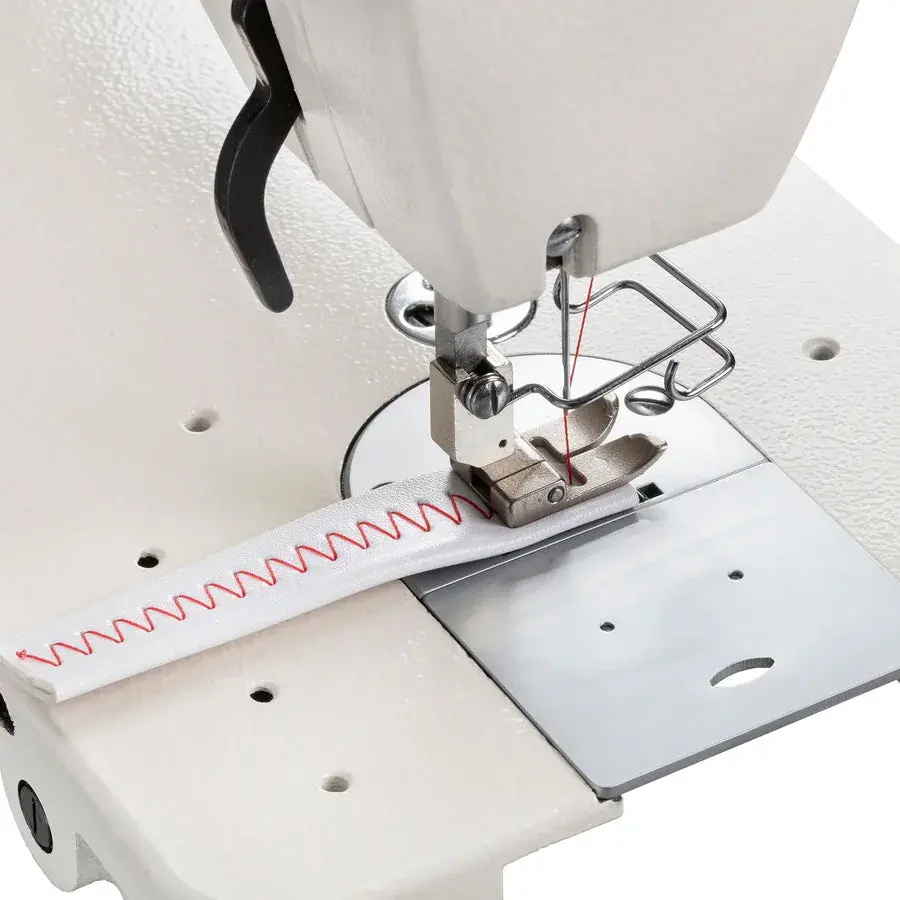

• Four-step/three-stitch zig-zag

• For sewing elastic, stretch materials, and ornamental stitching

• For stitching boat and truck covers, tents, awnings, sails, parachutes, tarpaulins, canvas bags, and military/naval equipment

• Suitable for materials like canvas, nylon, vinyl, leather, synthetics, and similar materials

• Especially useful where reinforced stitching is needed

• Available with special fittings for rope tacking operations

• For rope tacking, making loops in rope, and attaching small/medium-size ropes to products like truck covers, tents, sails, hammocks, parachutes, and grain bags

Features

• Horizontal axis transverse rotary hook

• Maximum zig-zag width: 3/8" (9.5mm)

• Straight stitcher when zig-zag is set to 'O' mm

• Long arm with 10" free space between needle and arm (18 7/8" bed models)

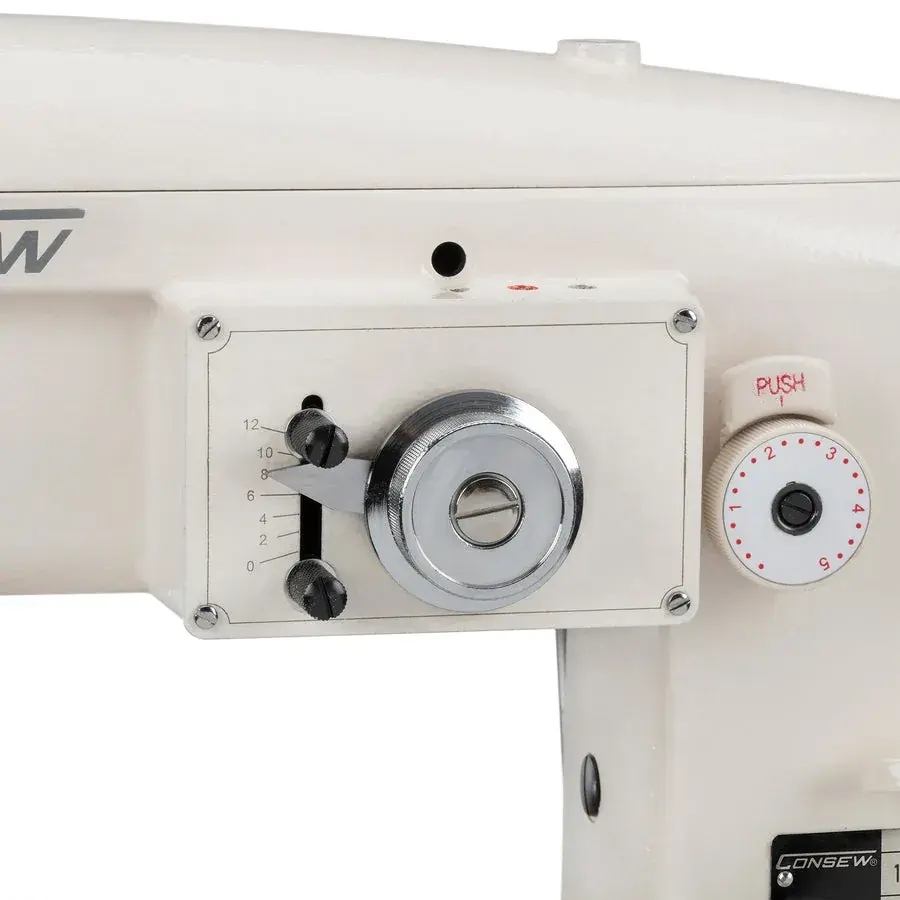

• Locking zig-zag width regulator

• Reverse stitching

• Ability to make an additional stitch for extra reinforcement

• Large bobbin and horizontal axis transverse rotary hook

• Optional: Interchangeable between 1A, 2A & 3A stitches (additional parts required)
