Consew

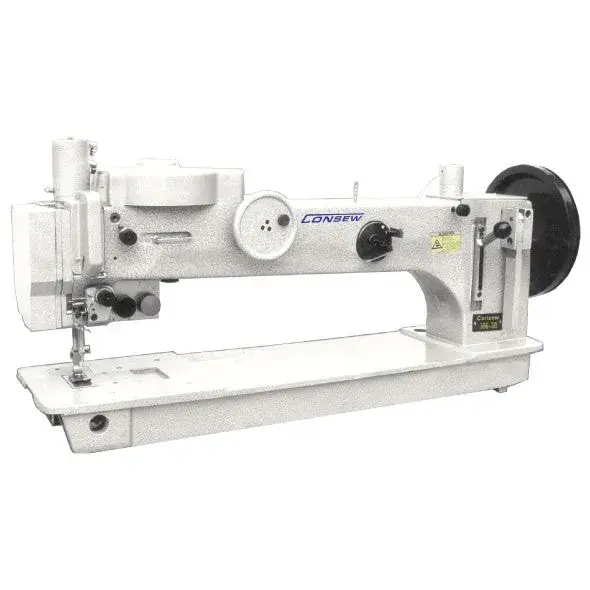

Consew 366-30
Heavy Duty, Single Needle, Straight Stitch and Zig-Zag, Long-Arm Machine
Product features
Heavy Duty, Single Needle, Straight Stitch and Zig-Zag, Long-Arm Machine
With: Large Transverse Shuttle Hook And Bobbin, Bobbin Winder On Top Of Machine Head, Presser Foot Lift Up To 20mm, Up To 12mm Zig-Zag
(also available is the Model 366-30P which has a heavy-duty Puller Sytem and other features.)
Specifications
| Number of Needles | 1 (Single) |
|---|---|
| Feeding Mechanism | Drop Feed |
| Workspace | Long Arm |
| Speed, Max (R.P.M.) | 600 |
| Clearance Under Presser Foot | By Hand: 13mm, By Knee: 20mm |
| Stitch Length | 10mm |
| Work Space | 760mm x 175mm |
| Needle | DY x 3 25# |
| Bobbin | KSP-204N |
| Bed Size | Not Specified |
| Weight | Not Specified |
| Needle Bar Stroke | 50.8mm |
| Hook | KSP-204N |
| Zig-Zag Stitch Width | 0-12mm |
| Lubrication | Manual |
| Motor | 750W Clutch Motor |
| Thread Take-Up Stroke | 96mm |
Catalogue
The Consew 366-30 documents Consew publishes, on their own site. They open in a new tab.
Open the catalogue (PDF)Open the instruction manual (PDF)Open the parts book (PDF)
And the catalogues Consew publishes for their whole range.
The file is published and updated by the manufacturer; it is not copied here, so nobody downloads an outdated version.
Product information, photographs and specifications: Consew. No prices or stock here: ask us and we will get back to you.
