Consew

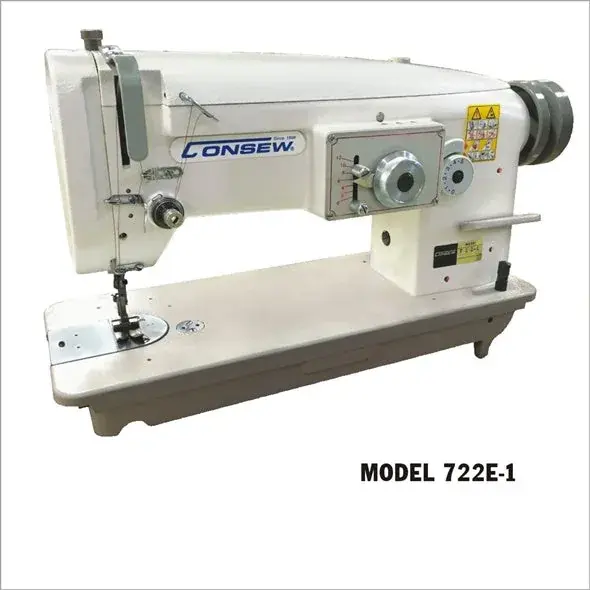

Consew 722E-1
Specialty zig-zag machine for edge finishing and applique sewing. Single Needle, Drop Feed, Special Purpose And Ornamental Sewing Machine
Product features
1 / 2
Specialty zig-zag machine for edge finishing and applique sewing. Single Needle, Drop Feed, Special Purpose And Ornamental Sewing Machine
With: Cam Controlled Needle Bar Vibration; Large Hook
Applications
Ornamental stitching and applique work for edge stitching in the sewing of fine clothing
Features
Cam-controlled needle bar vibration
Drop feed
Stitches per minute: 1,500*
Specifications
| Number of Needles | 1 (Single) |
|---|---|
| Feeding Mechanism | Drop Feed |
| Workspace | Standard Workspace |
| Standard or Full Function | Standard Functions |
| Stitch Type | 304/301 |
| Speed, Max (S.P.M.) | 1800 |
| Clearance Under Presser Foot | Foot 25/64” (10 mm), Hand 15/64” (6 mm) |
| Stitch Length | 5 s.p.i. (5mm) |
| Work Space | 8 5/16" (211mm) |
| Needle | 135 x 5 |
| Bed Size | 7" 15 11/16" (178mm x 398.5mm) |
| Needle Bar Stroke | 1 6/25" (31.5mm) |
| Stitch Width, Max | 11/32" (9mm) |
Catalogue
The Consew 722E-1 documents Consew publishes, on their own site. They open in a new tab.
And the catalogues Consew publishes for their whole range.
The file is published and updated by the manufacturer; it is not copied here, so nobody downloads an outdated version.
Data sheets, photos, videos and specifications: Consew.
