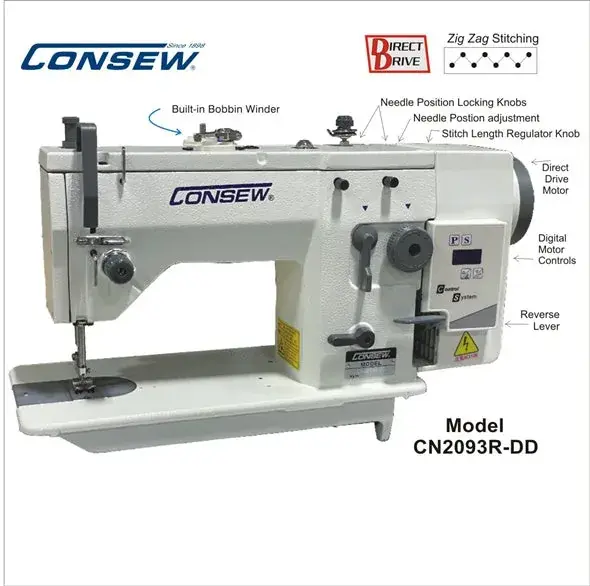

Consew CN2093R-DD
Single Needle, Drop Feed, Zig-Zag, Lockstitch Machine
Product features
1 / 3
Single Needle, Drop Feed, Zig-Zag, Lockstitch Machine
With: Horizontal axis transverse rotary hook; Adjustable zig-zag width; Stitch regulator; Straight stitches when zig-zag set to "0"; Stitches per minute — up to 1800*; Reverse stitching; Built-in free-hand monogramming lever; Metal gears (hardened steel)
Applications
Sewing light to medium heavy-weight fabrics including clothing, shoes, caps, leather articles, bags, and more
Attaching lace, elastic band, bottom hemming, edge stitching, butted seaming, applique, and similar operations
Federal stitch type 304
Features
Direct Drive Built-In Servo Motor
Variable Speed Control
Digital Controls
Automatic Lubrication
Horizontal Axis Rotary Hook - Front Load
Reverse Stitching
Combination Zig-Zag and Straight Stitcher

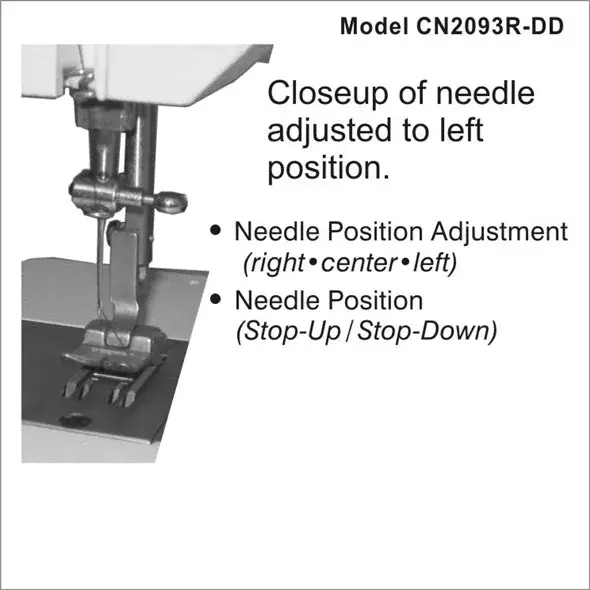

Needle Position Adjustment (right, center, left)
Needle Position (stop-up / stop-down)
Metal gears (hardened steel)

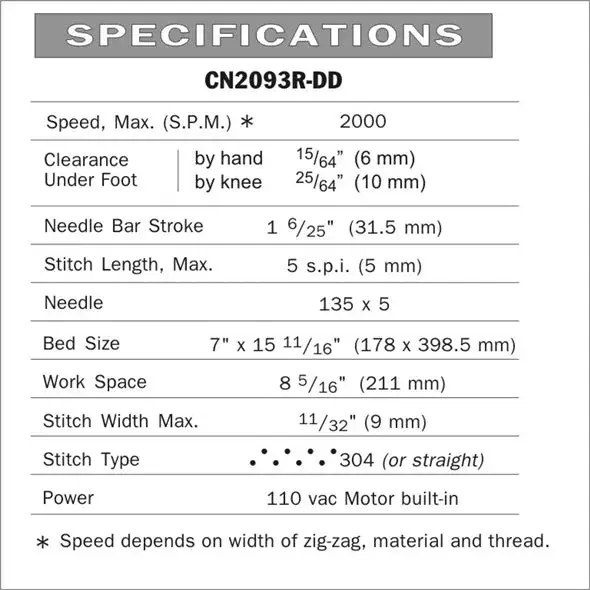

Specifications
| Number of Needles | 1 (Single) |
|---|---|
| Feeding Mechanism | Drop Feed |
| Workspace | Standard Workspace |
| Standard or Full Function | Standard Functions |
| Stitch Type | 304/301 |
| Speed, Max (S.P.M.) | 1800 |
| Motor Type | Direct Drive Internal |
| Clearance Under Presser Foot | Foot 25/64” (10 mm), Hand 15/64” (6 mm) |
| Stitch Length | 5 s.p.i. (5mm) |
| Work Space | 8 5/16" (211mm) |
| Needle | 135 x 5 |
| Bed Size | 7" x 15 11/16" (178mm x 398.5mm) |
| Needle Bar Stroke | 1 6/25" (31.5mm) |
| Stitch Width, Max | 11/32" (9mm) |
Catalogue
The Consew CN2093R-DD documents Consew publishes, on their own site. They open in a new tab.
Open the catalogue (PDF)Open the instruction manual (PDF)
And the catalogues Consew publishes for their whole range.
The file is published and updated by the manufacturer; it is not copied here, so nobody downloads an outdated version.
Data sheets, photos, videos and specifications: Consew.
