Consew 205RB-⁠7DD-⁠1

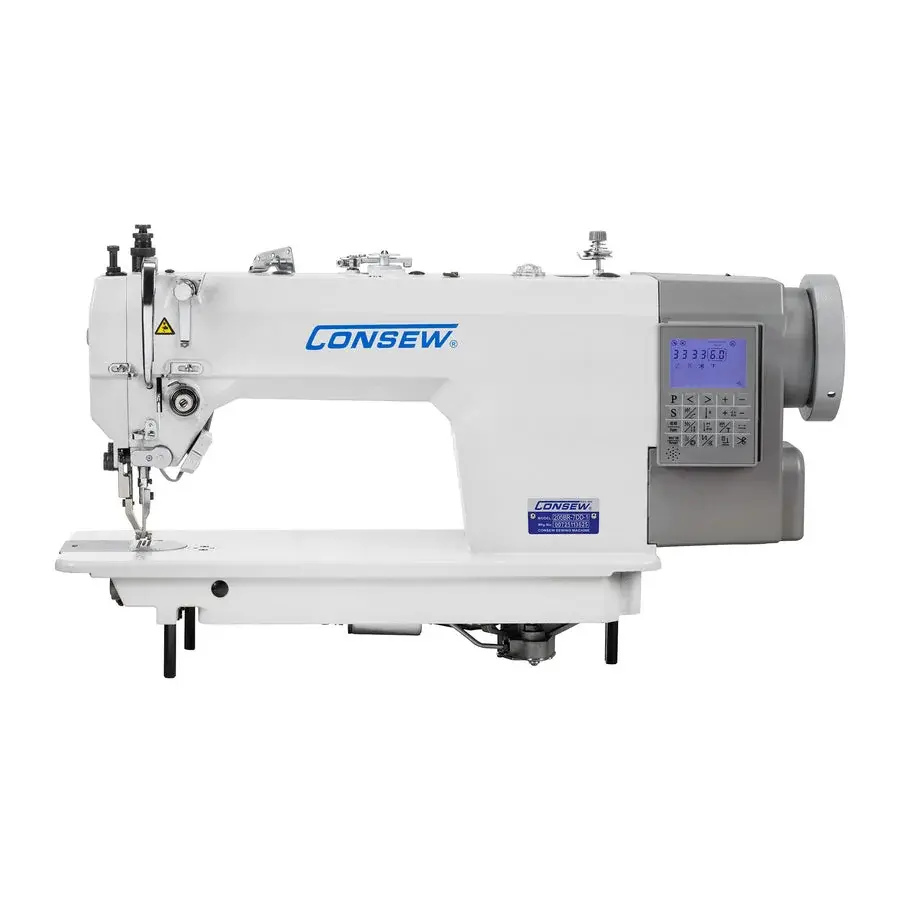

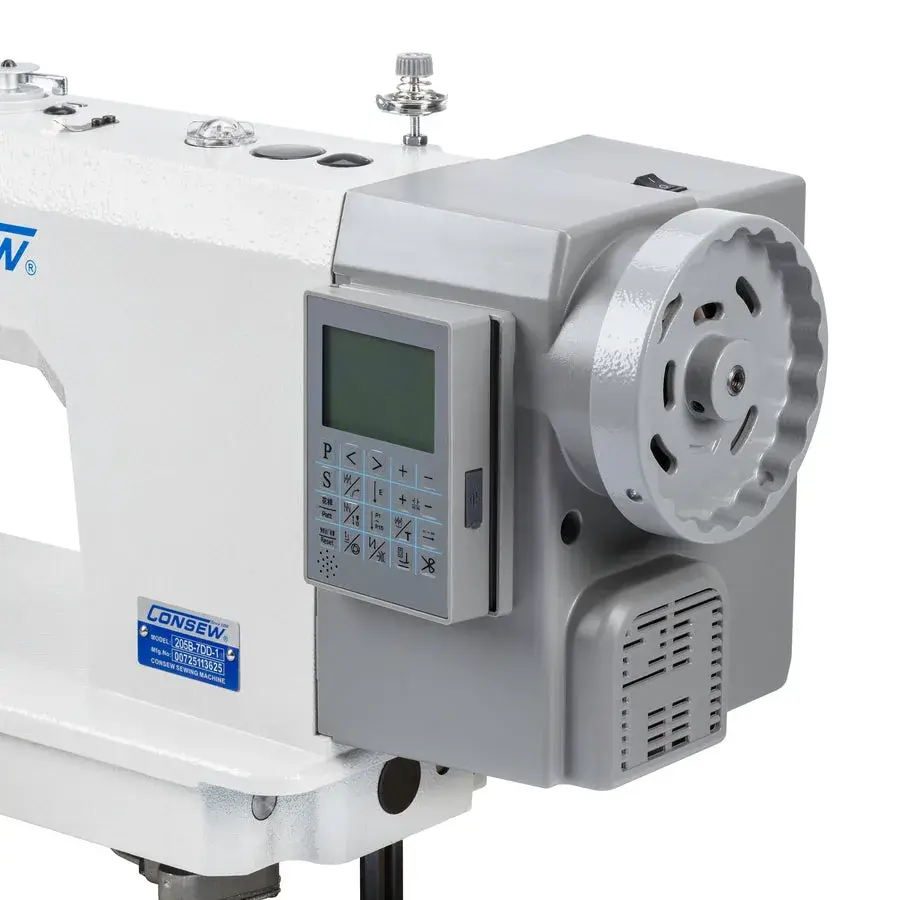

The 205RB-7DD-1 is a high-performance, heavy-duty single-needle lockstitch machine designed for precision and efficiency in demanding textile environments. It features an integrated 750W direct-drive servo motor that eliminates the need for belt connections, ensuring smooth operation with a maximum speed of 2,200 S.P.M. The machine is equipped with fully automatic functions managed through a digital control panel with a numerical display, including an automatic electric foot lift, automatic thread trimming, and a specialized top-thread electric clamping system for cleaner finishes.

Designed for versatile material handling, it utilizes an upper and lower drop-feed system with alternating presser feet to sew through light- to heavy-weight materials such as canvas, leather, vinyl, and synthetics. Operators can achieve consistent results with digital stitch-length control of up to 8 mm (3 S.P.I.), while specialized controls such as the reverse knuckle switch and the half-stitch and jog switch allow for precise detail work.

For extended production cycles, the unit includes a large side-loading bobbin and a horizontal-axis hook, supported by an automatic lubrication system that helps reduce maintenance requirements. Additionally, the machine provides enhanced visibility with built-in LED lighting and comes standard in a 220V configuration, with an optional 110V/220V converter available separately.

This robust system is ideal for manufacturing a wide range of products, including automotive and furniture upholstery, outdoor equipment such as tents and awnings, and industrial goods such as ballistic armor and parachute containers.

Applications

• For sewing light to heavy-weight fabric, canvas, leather, vinyl, synthetics and various laminated and coated materials

• Designed for stitching such products as auto, boat and furniture upholstery, tarpaulins, covers, awnings, tents, handbags, luggage, sports and camping equipment, outdoor clothing, footwear, orthopedic appliances, ballistic armor, parachute containers, etc.

Features

• Direct Drive Motor (no belt connection required)

• Power required: 220V. *Optional 110V/220V converter can be purchased separately.*

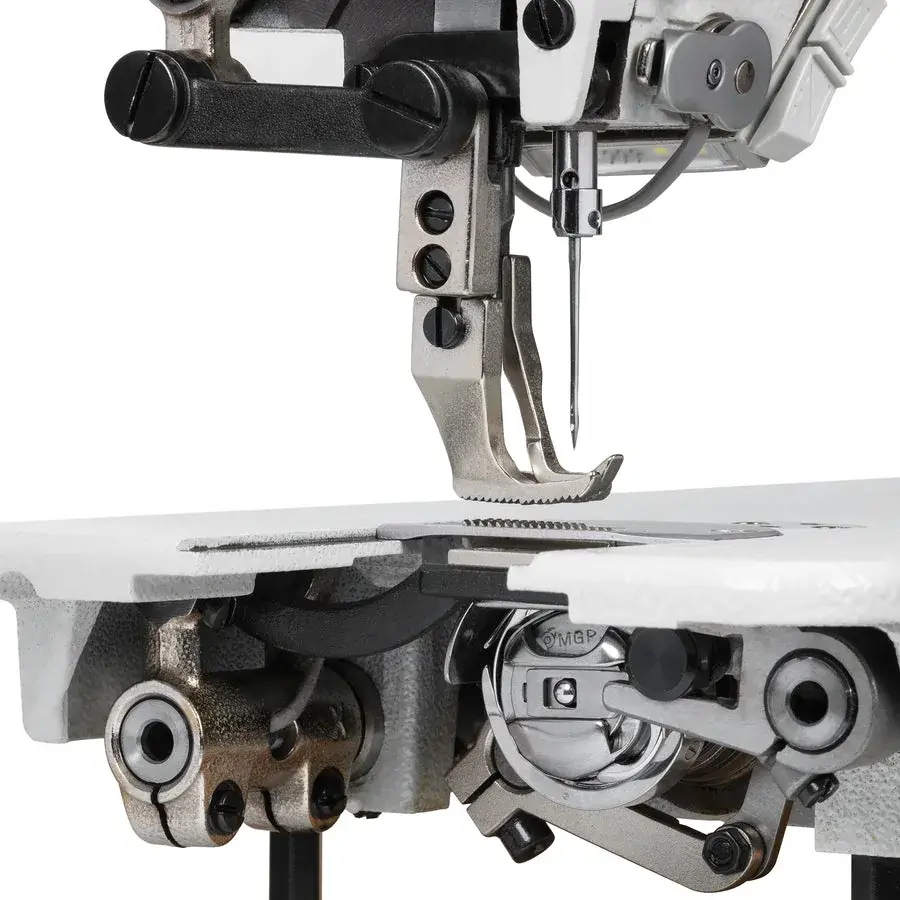

• Large bobbin and horizontal axis hook (side load)

• Drop feed (upper & lower feed) alternating presser feet

• Fully automatic functions including automatic electric foot lift

• Automatic lubrication system

• New: Top thread electric clamping system for trimming

• Automatic Thread Trim Function

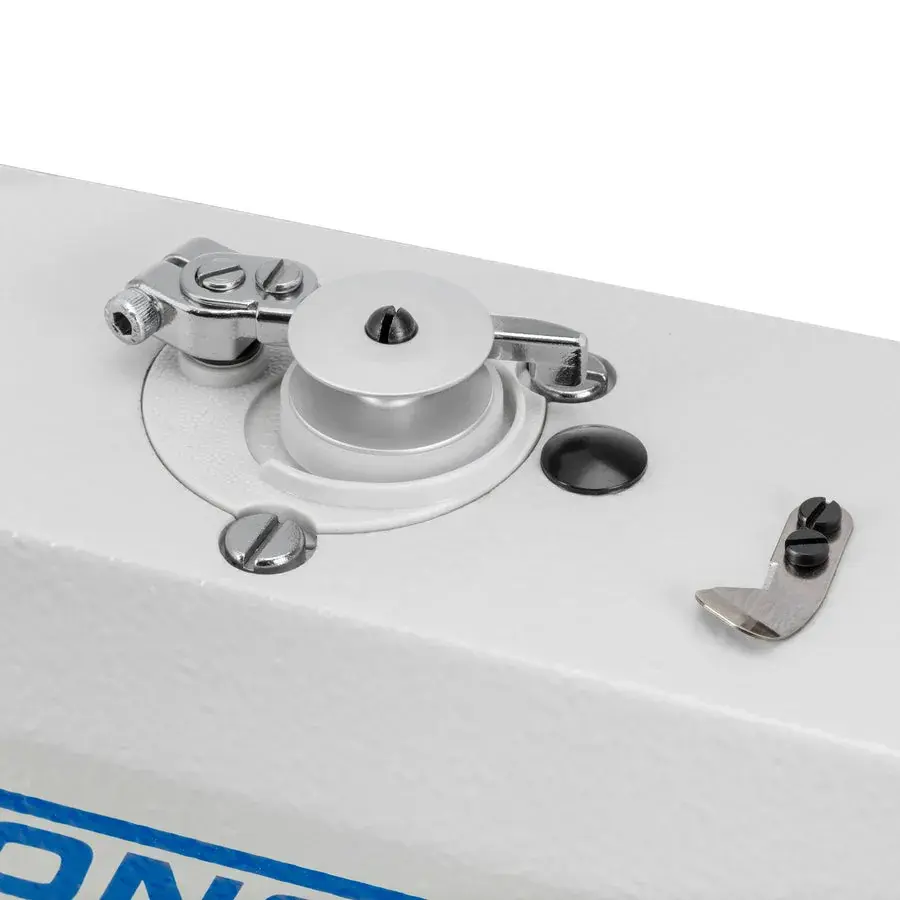

• Built-in bobbin winder

• Digital Stitch Length Control

• Assorted sizes of cording feet available

• Standard presser feet fittings

• Standard attachments easily installed

• Convenient half stitch & jog switch

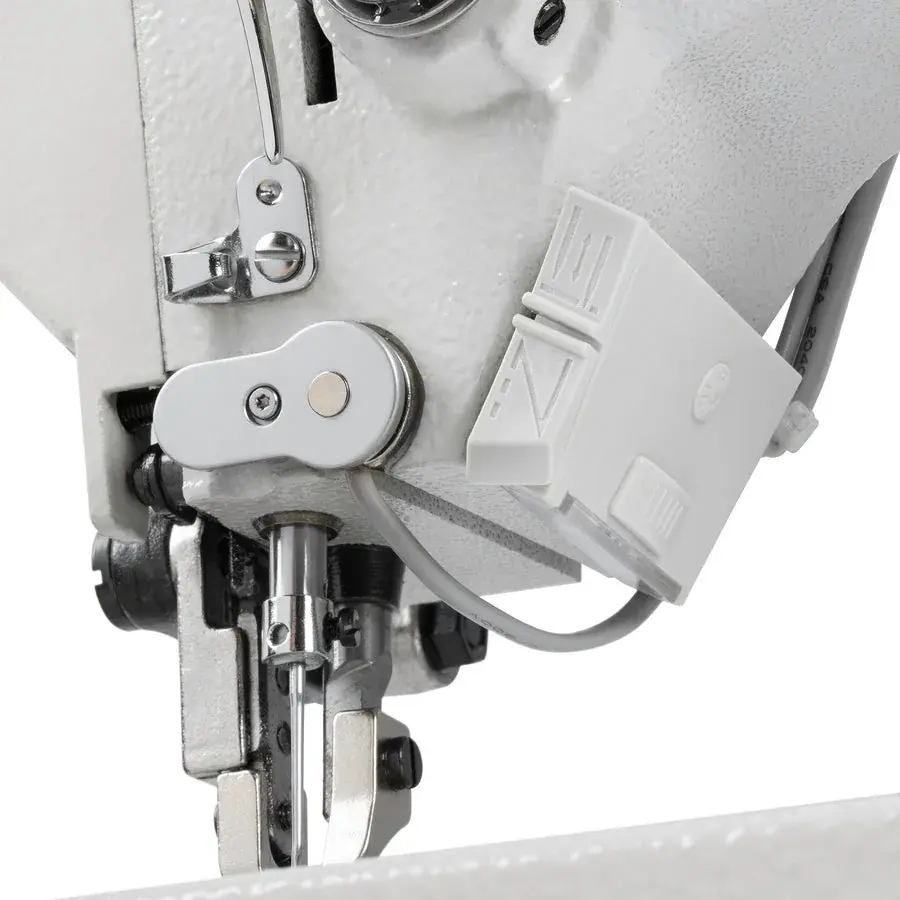

• Built-in LED light

• Handwheel
