Consew

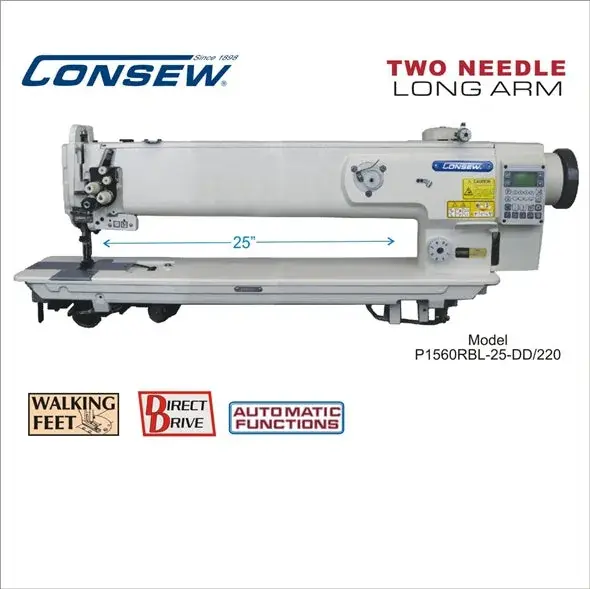

Consew P1560RBL-25-DD/220
Two-Needle, High Speed, Direct Drive, Walking Foot,
Product features
1 / 2
Two-Needle, High Speed, Direct Drive, Walking Foot,
Lockstitch Machine. Comes in 14" 18" and 25" workspace
This is the 25" Long Arm version.
The P1560RBL-25-DD/220 has automatic functions but without automatic thread trim. (The -7DD version has the automatic thread trim)
Currently Available in 220VAC Version ONLY.
Specifications
| Speed, maximum | 2000 - 2500 spm (*Speed depends on thread, material, and operation) |
|---|---|
| Clearance Under Foot | 9/16" (14mm) |
| Needle | 135 x 17 (DPX17) |
| Needle Gauges | 1/4” to 1” (Custom gauges also available) |
| Stitch Length; Max. | 9mm Adjustment By Dial |
| Presser Foot Lift By Hand | 9 mm / By Knee: 16mm |
| Lubrication | Semi-Automatic |
| Bobbin | U or S |
| Power | 220 VAC |
Catalogue
The Consew P1560RBL-25-DD/220 documents Consew publishes, on their own site. They open in a new tab.
Open the catalogue · Guía rápida (PDF)Open the catalogue (PDF)Open the instruction manual (PDF)
And the catalogues Consew publishes for their whole range.
The file is published and updated by the manufacturer; it is not copied here, so nobody downloads an outdated version.
Product information, photographs and specifications: Consew. No prices or stock here: ask us and we will get back to you.
