Consew

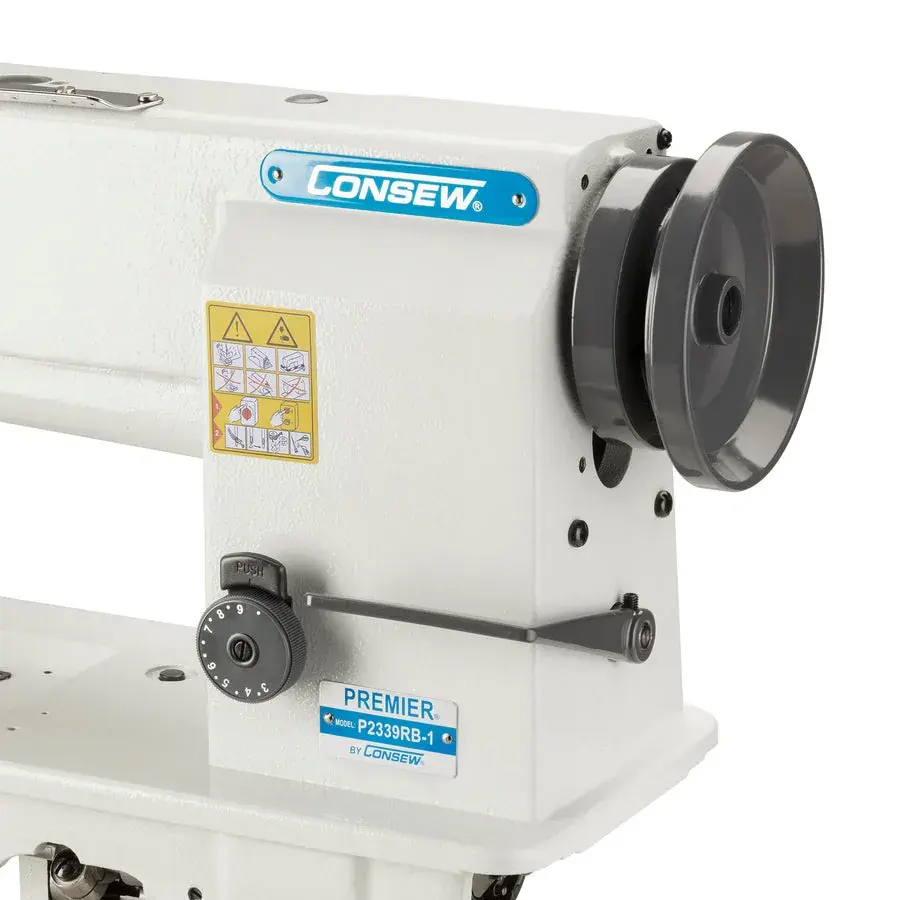

Consew P2339RB-1

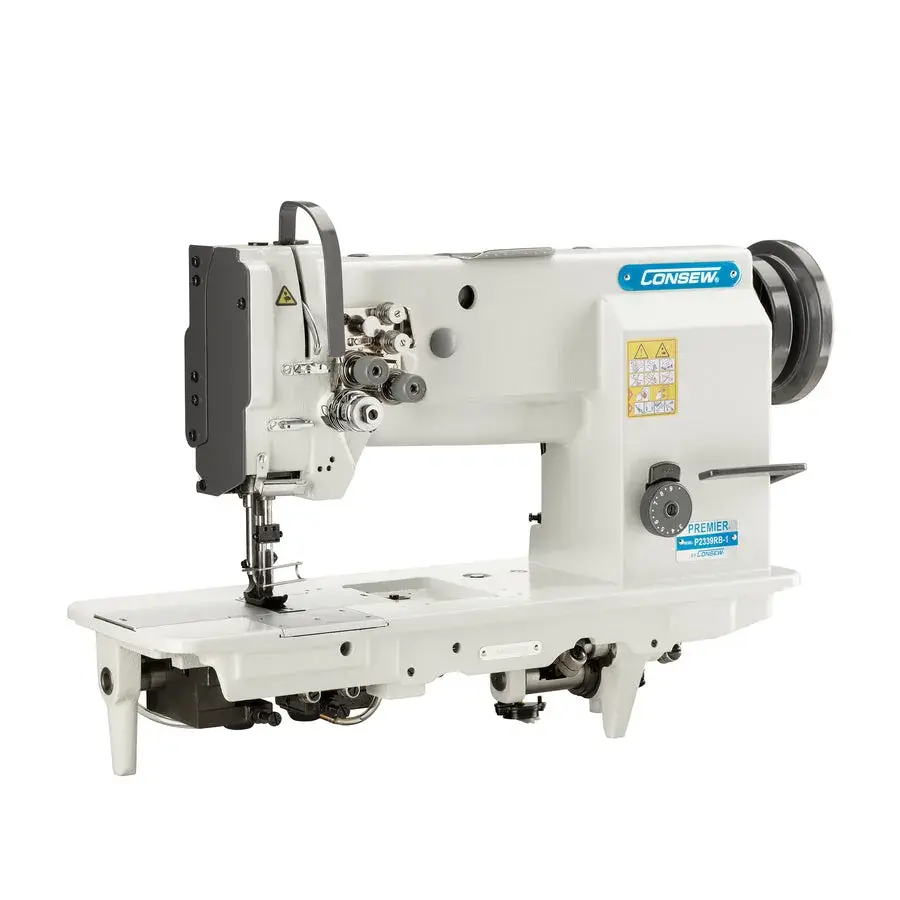

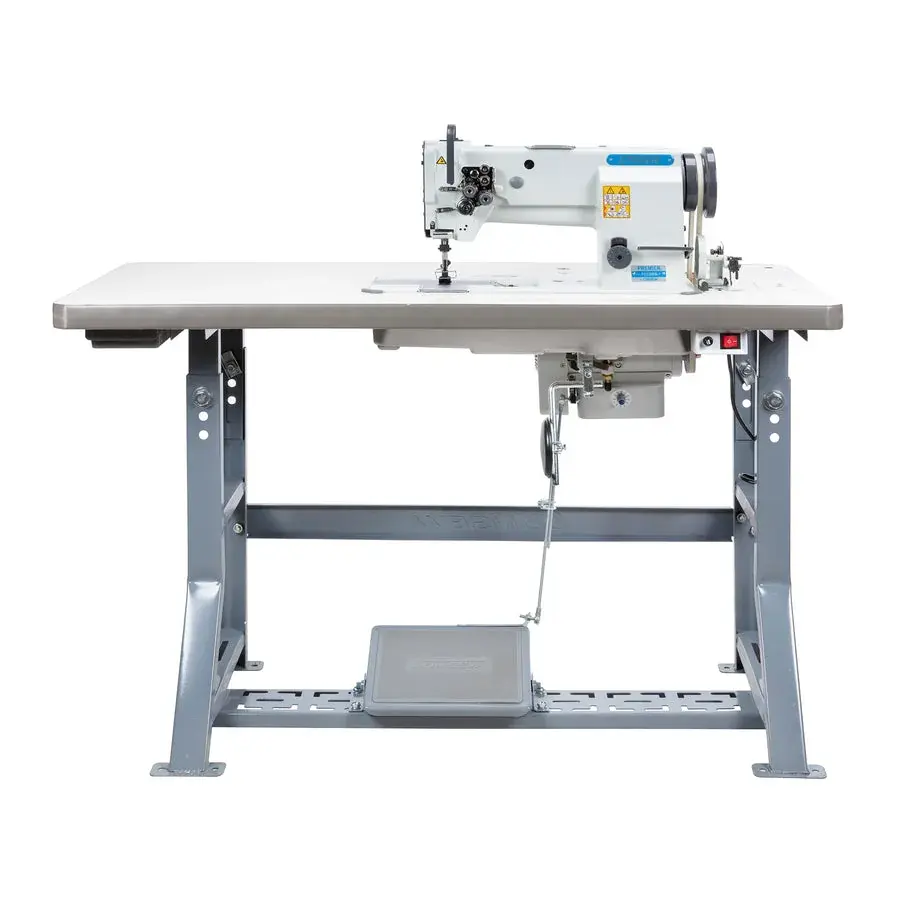

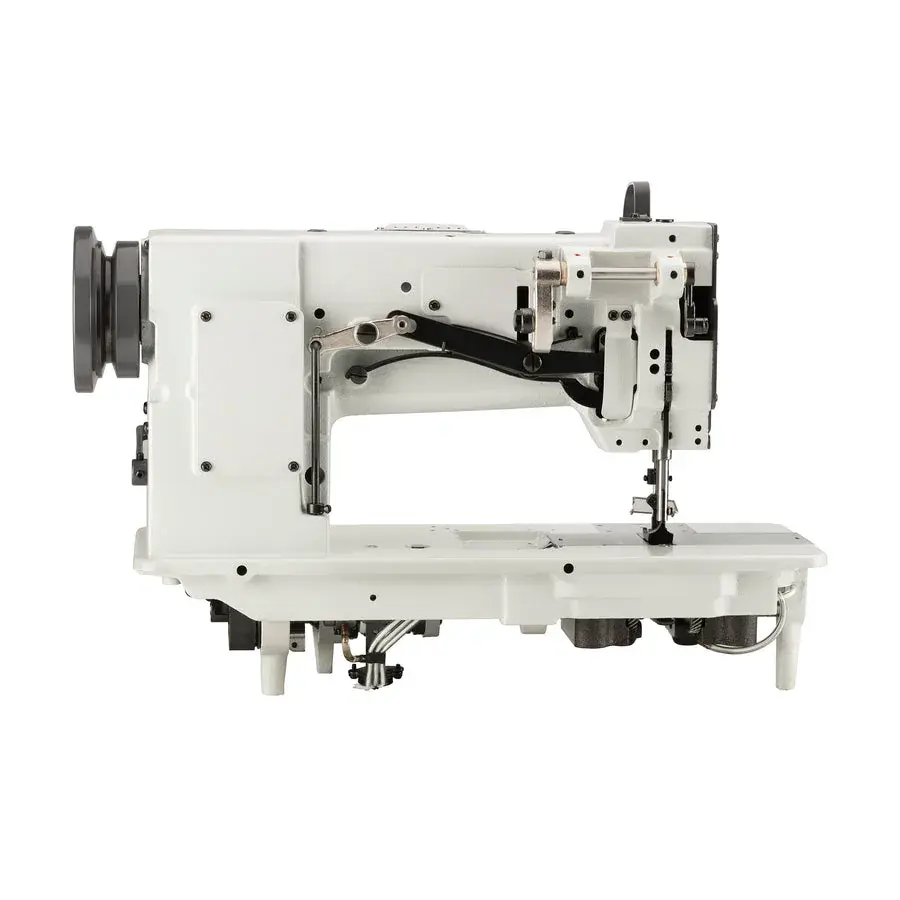

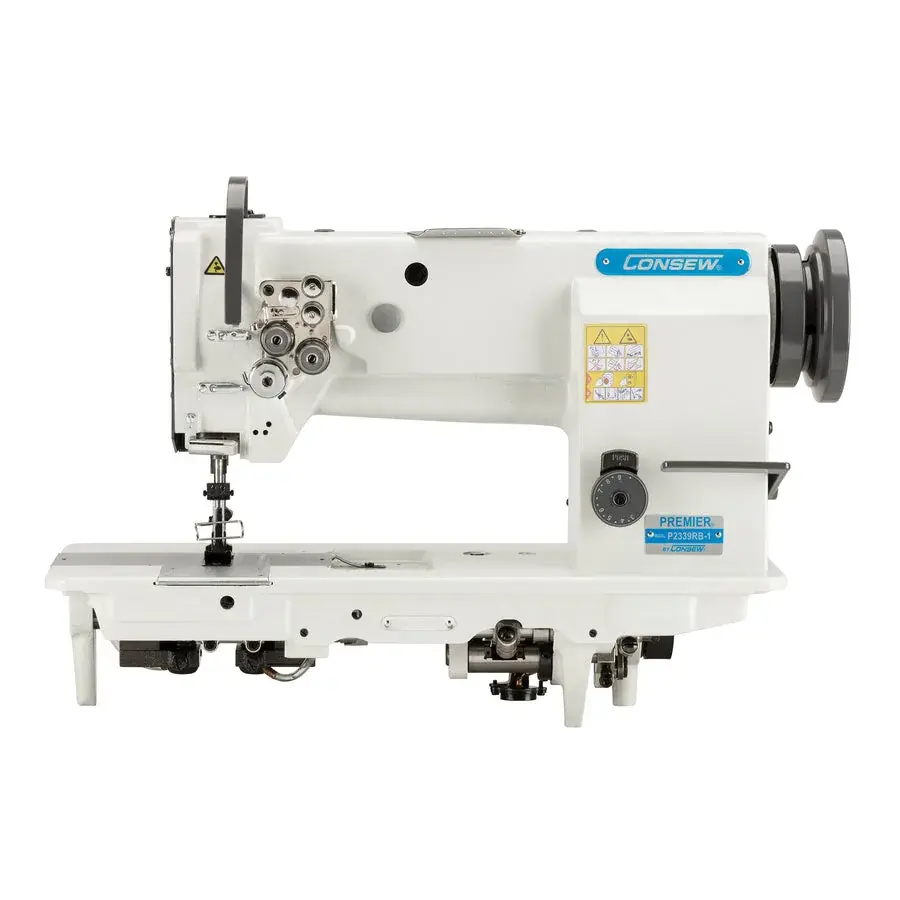

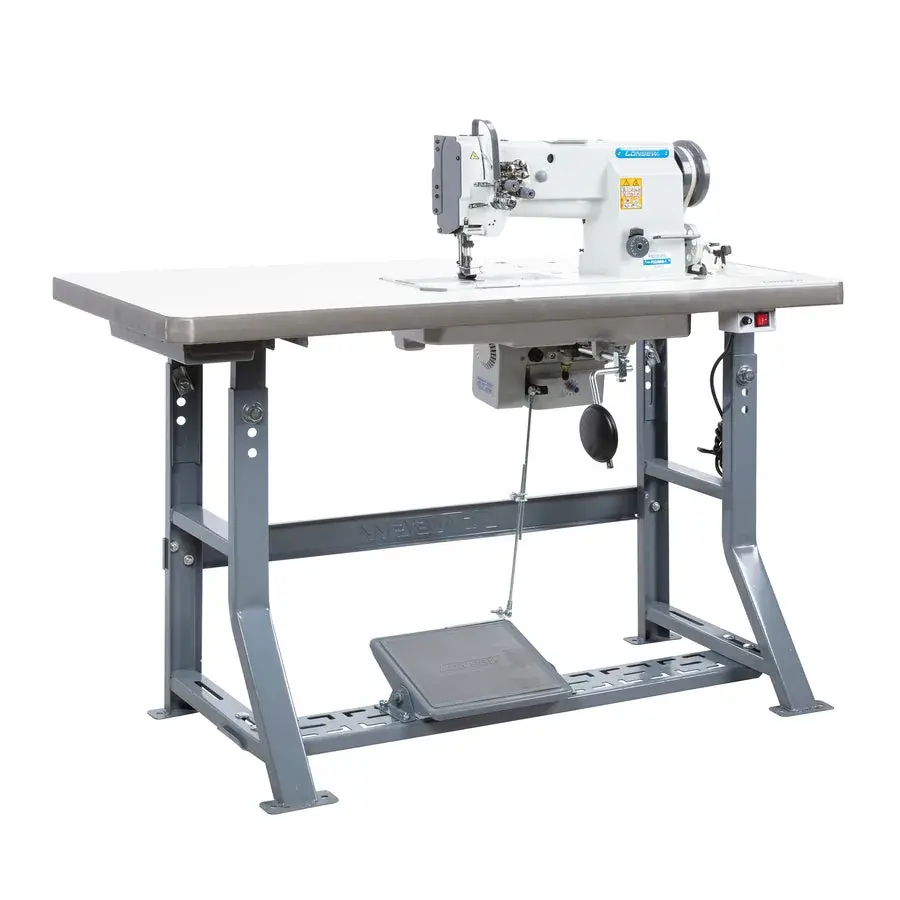

P2339RB : Two Needle, Drop Feed, Needle Feed, Walking Foot, Lockstitch Machine
Product features
1 / 8
P2339RB : Two Needle, Drop Feed, Needle Feed, Walking Foot, Lockstitch Machine
Features
Double Needle: Dual-needle capability for versatile stitching

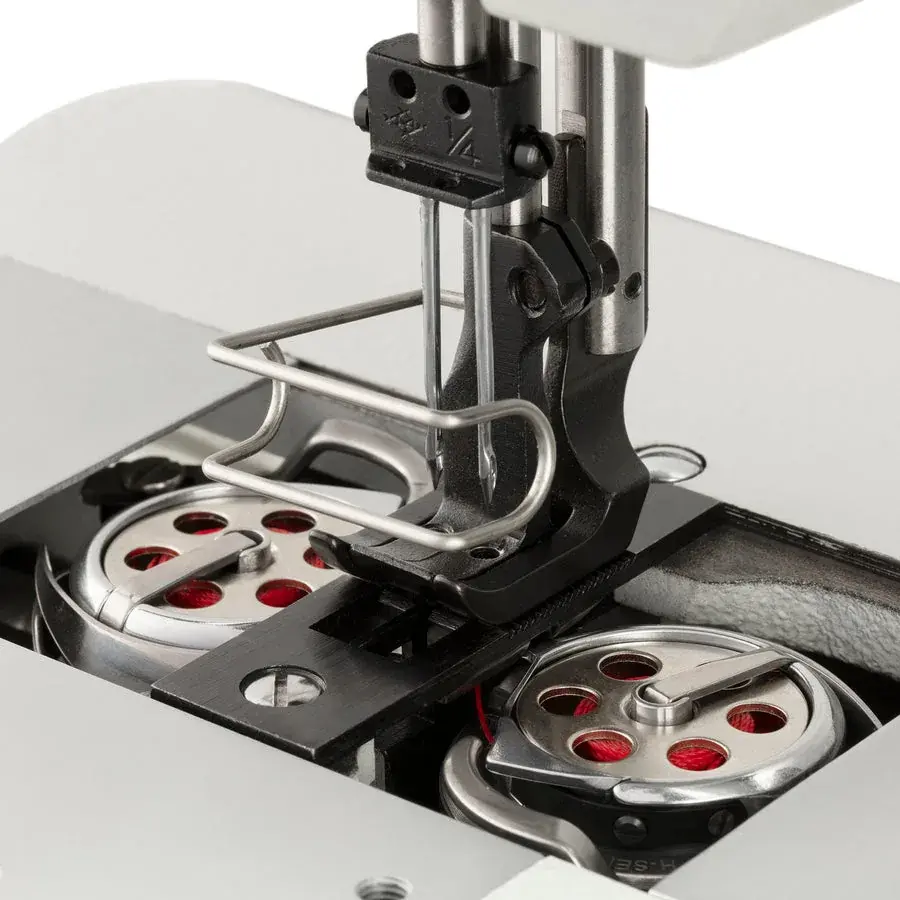

Large Vertical Axis Automatically Oiled Hooks: Ensures smooth operation
Oil Pump System with Adjustable Oil Flow: Customizable lubrication
Upper Oil Glass Sight: Easy monitoring of oil levels
Barrel-type, Locking Stitch Regulator: Precise stitch length control
Reverse: Enhances stitching versatility
Large Top-Loaded Bobbins: Convenient bobbin access
Safety Clutch: Protects the machine from overload
Locking Slide Plate: Easy access to the bobbin area
Adjustable Take-Up Thread Guide: Ensures proper thread loop timing
Quick Tension Release: Simplifies thread tension adjustments
Specifications
| Speed, Max. (S.P.M.) | 2600 (Speed depends on thread, material, and operation) |
|---|---|
| Presser Foot Lift | By Hand - 5/16" (8 mm) / By Knee - 33/64" (13 mm) |
| Needle Bar Stroke | 1-27/64" (36 mm) |
| Stitch Length, Max | 2.8 s.p.i. (9 mm) |
| Work Space | 9-7/8” x 3-15/16" (250 x 100 mm) |
| Needles | 135 x 17 (x 2) |
| Pre-wound Bobbin | U or S |
| Number of Needles | 2 (Double) |
| Feeding Mechanism | Walking Foot |
| Workspace | Standard Workspace |
| Standard or Full Function | Standard Functions |
| Stitch Type | 301 |
Catalogue
The Consew P2339RB-1 documents Consew publishes, on their own site. They open in a new tab.
Open the catalogue (PDF)Open the instruction manual (PDF)Open the parts book (PDF)
And the catalogues Consew publishes for their whole range.
The file is published and updated by the manufacturer; it is not copied here, so nobody downloads an outdated version.
Data sheets, photos, videos and specifications: Consew.
