Consew
Consew 4224RBALP
The Consew 4224RBALP is a heavy-duty, high-speed, long-arm walking foot machine designed for precision sewing on extra-heavy materials.
Product features
1 / 7

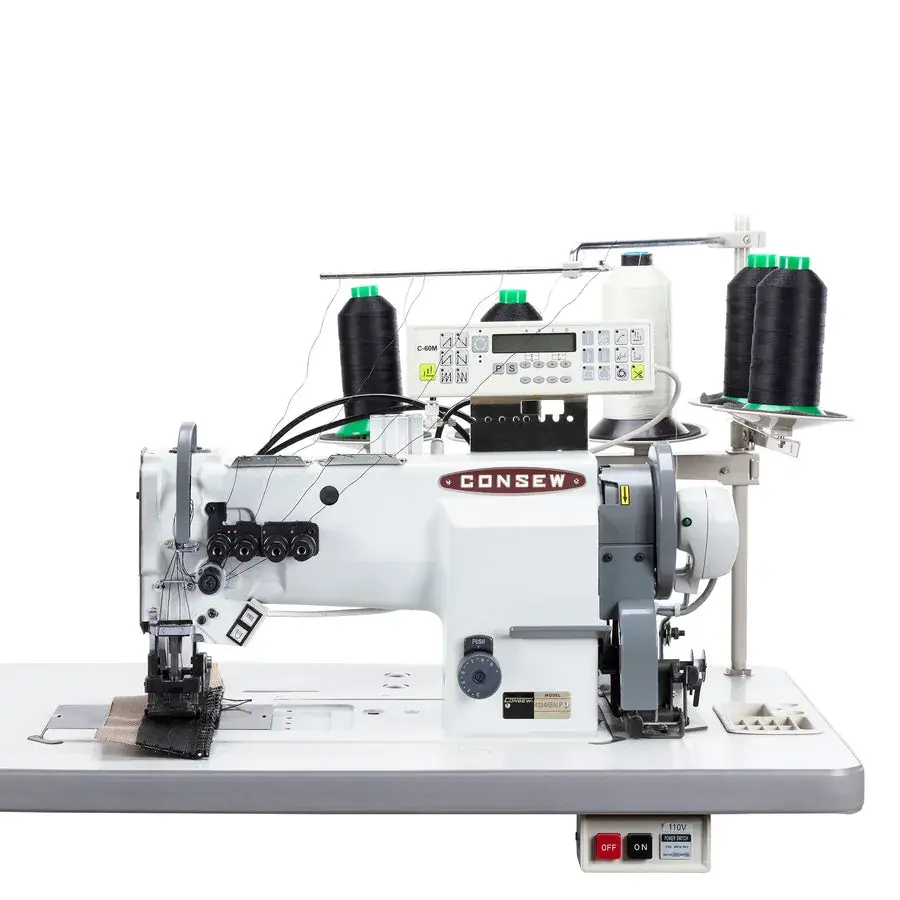

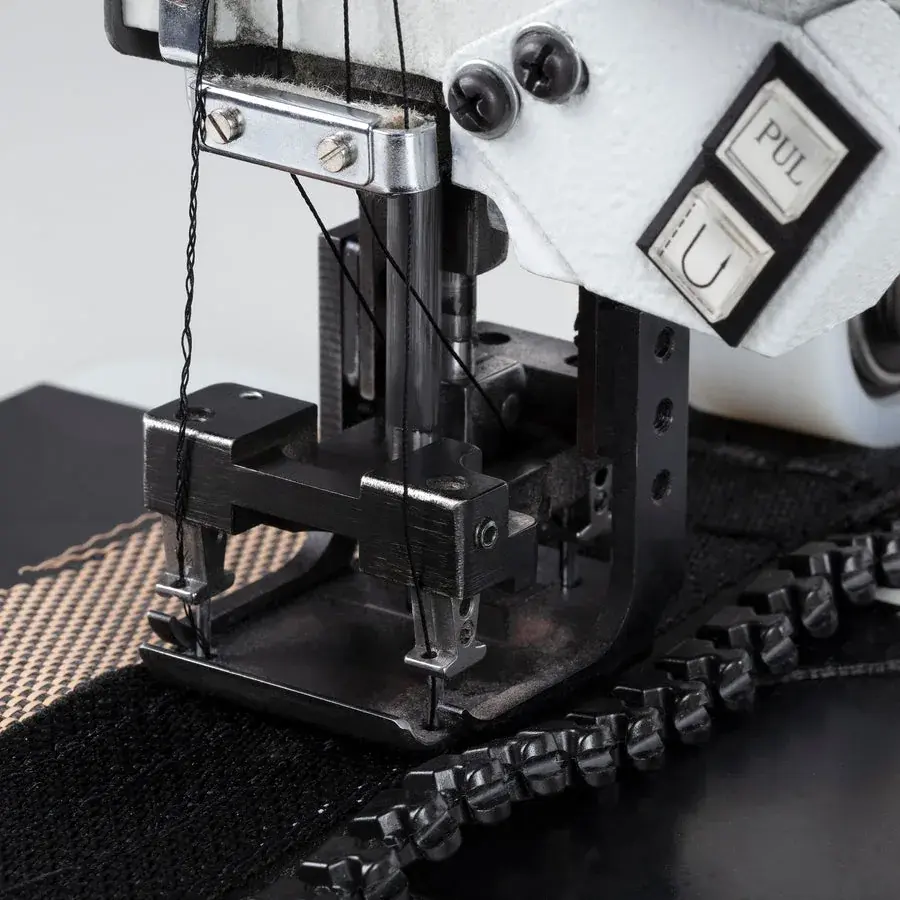

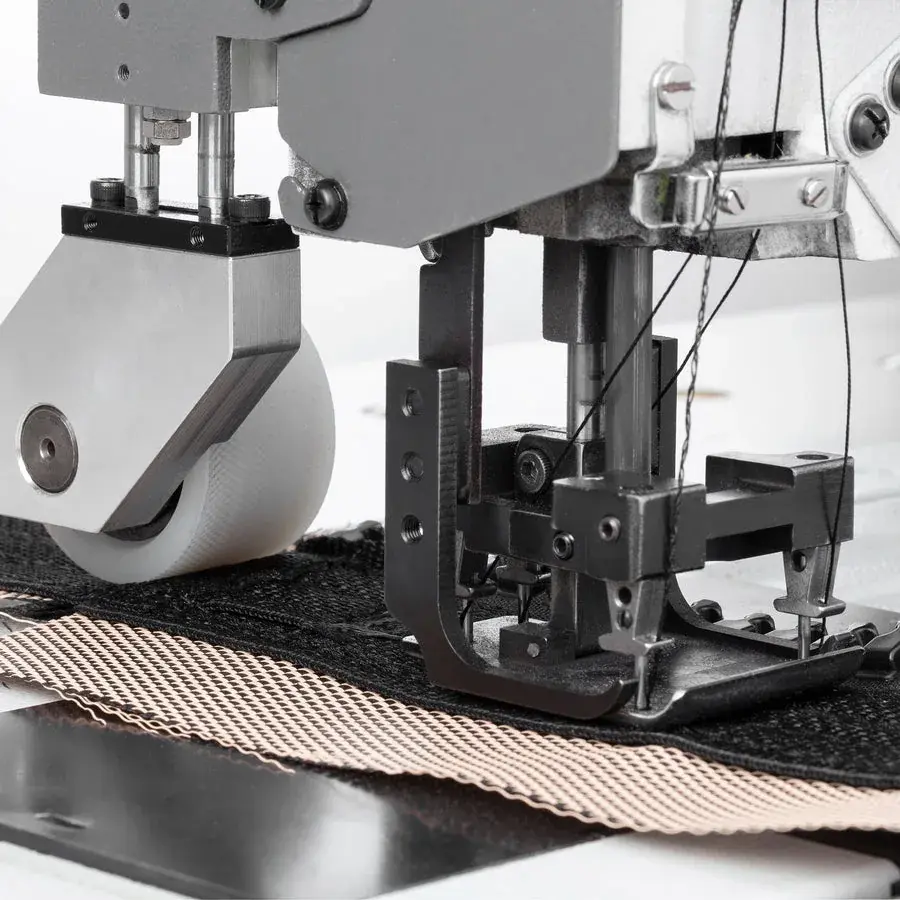

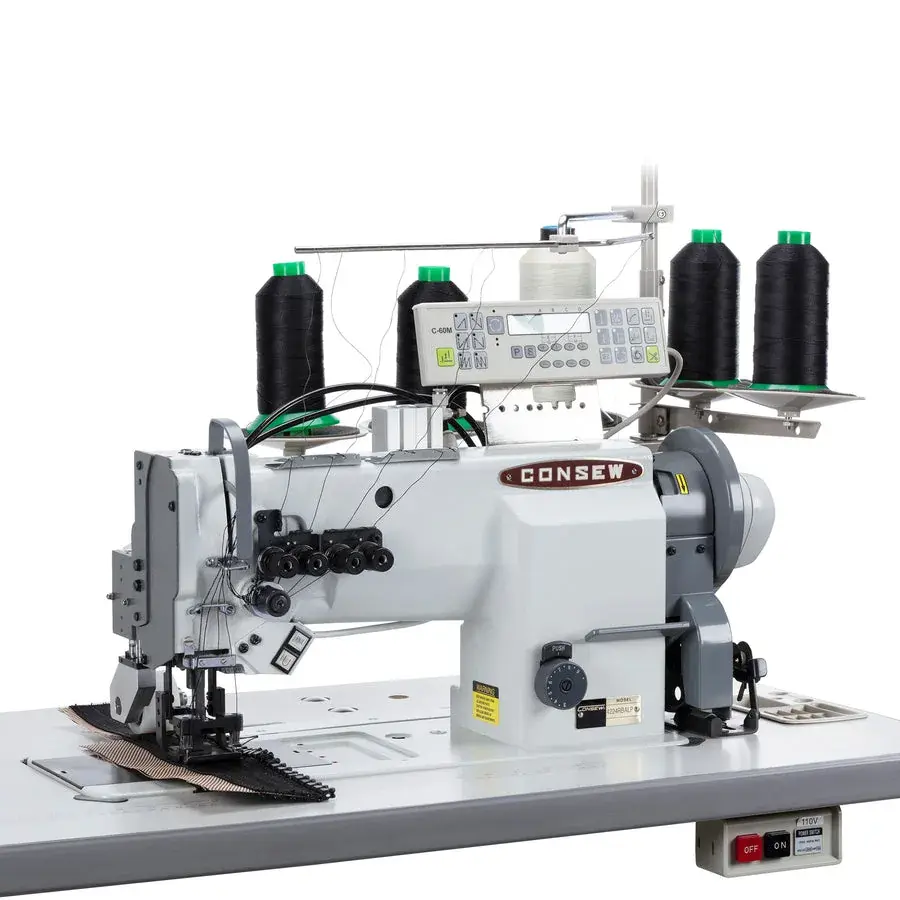

The Consew 4224RBALP is a heavy-duty, high-speed, long-arm walking foot machine designed for precision sewing on extra-heavy materials. Engineered for industrial applications, this model features a triple feed mechanism (needle feed, walking foot, and drop feed), 4 large vertical axis hooks, a puller, pneumatic foot lift, and an electronic reverse button next to the needle. Ideal for products like tarps and technical textiles, the 4224RBALP offers high performance and reliability in demanding sewing environments.
Specifications
| Max. sewing speed | 1800 r.p.m. * |
|---|---|
| Stitch length | 0 — 10 mm |
| Needle bar stroke | 36 mm |
| Thread take-up lever stroke | 74.5 mm |
| Presser foot lift | by hand 8mm / by knee 15mm |
| Presser foot alternation | 2–6mm |
| Needle size | DP x 17 23* |
| Rotating hook | Large vertical hook (2 times) |
| Lubrication | Auto lubricated |
| Motor | 110V or 220V, 750W servo motor |
Videos
Catalogue
The Consew 4224RBALP documents Consew publishes, on their own site. They open in a new tab.
And the catalogues Consew publishes for their whole range.
The file is published and updated by the manufacturer; it is not copied here, so nobody downloads an outdated version.
Product information, photographs and specifications: Consew. No prices or stock here: ask us and we will get back to you.
