Product features
1 / 8

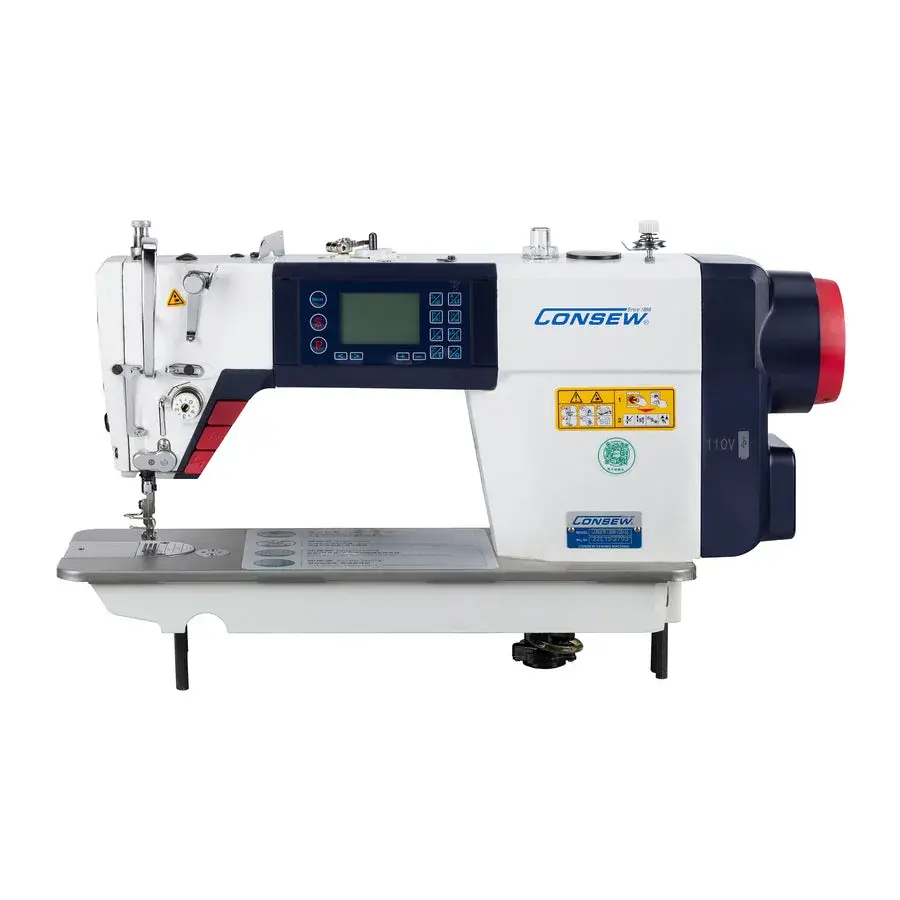

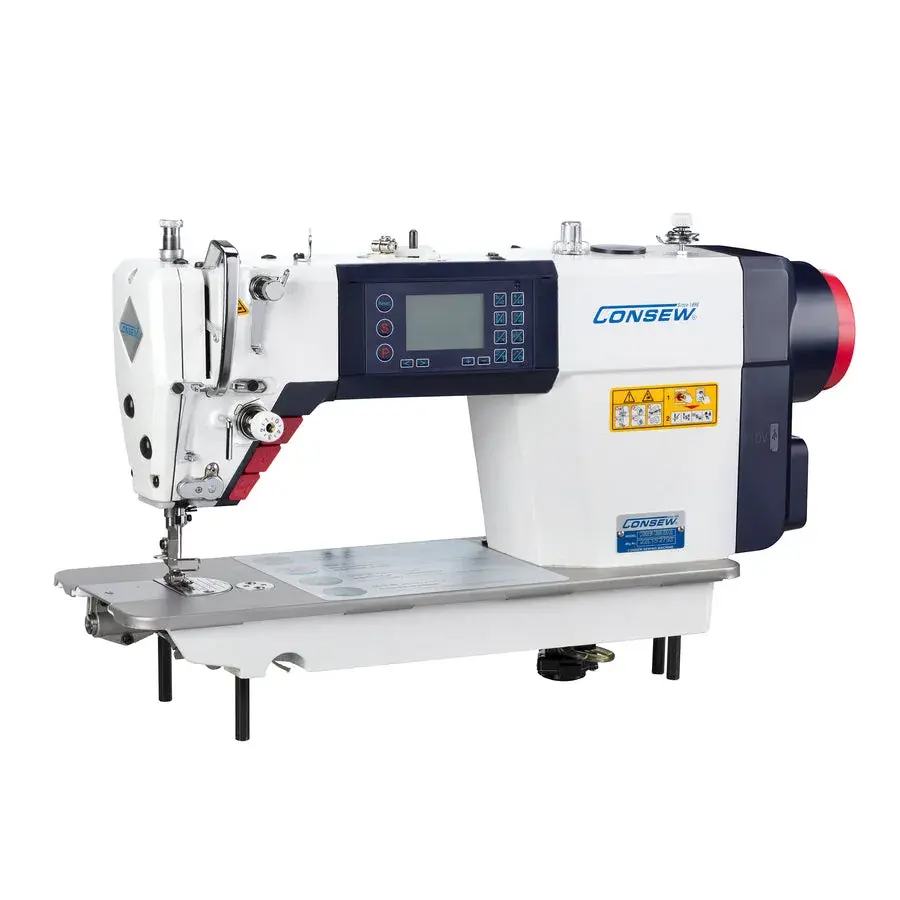

High Speed (*5000 spm,) Single Needle, Drop Feed, Lockstitch Machine, featuring stainless steel bed
With: Automatic Reverse (backtacking); Auto-lubrication; Rotary Hook; Needle Positioning; Under Bed Thread Trimmer; Electric Thread Clamp (holds thread qfter thread trim); Electric Foot Lift; Stitch Counter; Built-in Bobbin Winder; Built-in, Direct Drive, 3/4hp, 550 Watt Motor (110v or 220v)
Applications
For sewing light to heavy-weight materials including cottons, knits, polyester, nylon, sheer fabrics and denim
Suitable for stitching such products as blouses, shirts, men's, ladies and children's apparel, uniforms, overalls, lingerie, etc.
Heavyweight fabrics such as jeans can be sewn by changing the needle plate, feed dog, foot, stitch regulator, hook and needle bar
Features
Fully automatic lubrication with recirculating high pressure pump and oil glass indicator
Noise and vibration absorbing table mounting
Automatic reverse
Auto-lubrication rotary hook
Under bed thread trimmer
Needle positioning
Electric and manual foot lift
Built-in stitch counter
Locking stitch regulator

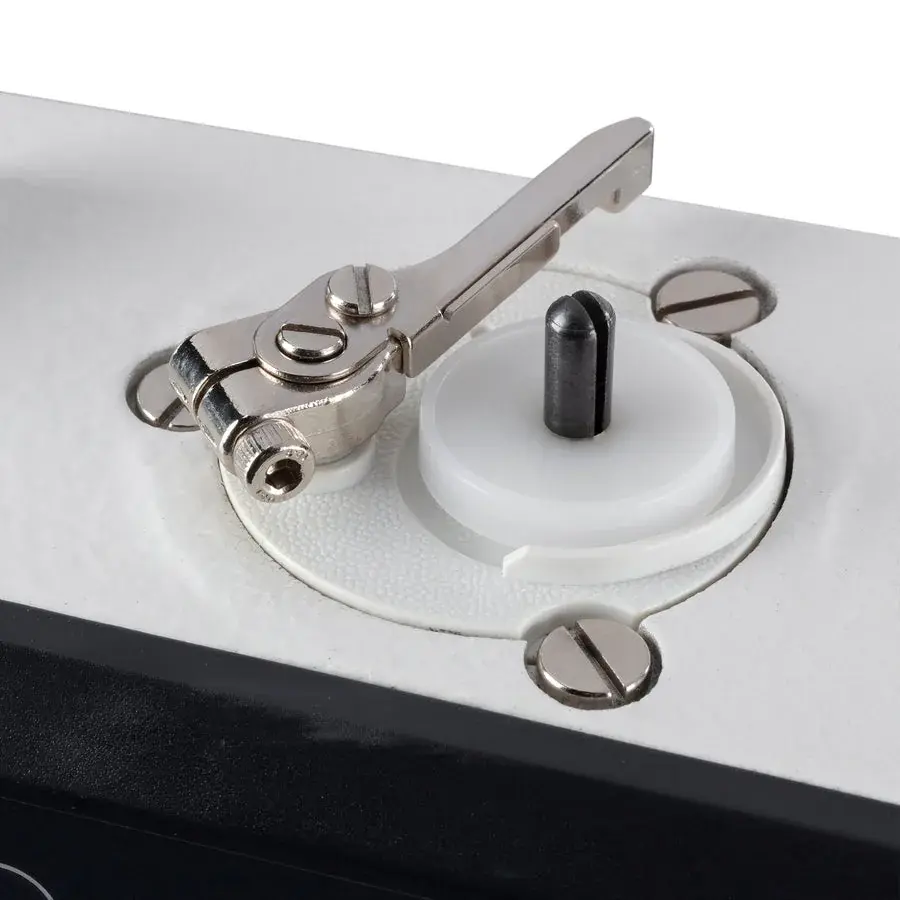

Built-in bobbin winder
Built-in LED light with level settings and on/off switch
Built-in 3/4HP, 550 watt Direct Drive Motor (110v or 220v)
Electric thread clamp (holds thread after thread trim)
Stainless steel bed plate. Longest lasting surface you can find.
Advantages of a Stainless Steel Bed Plate:
- Preserves the appearance of the bed: No paint to get worn off. Therefore enhancing resale value.
- Resists rust.
- Lets the fabric move more easily (less friction) thus improving efficiency.
- Non-Magnetic: Can be easier when sewing magnetic tape, grommets and snaps.
Specifications
| Number of Needles | 1 (Single) |
|---|---|
| Feeding Mechanism | Drop Feed |
| Workspace | Standard Workspace |
| Standard or Full Function | Automatic Functions |
| Speed, Max (S.P.M.) | 5000 |
| Motor Type | Direct Drive |
| Clearance Under Presser Foot | 1/4" (6mm) , 1/4" (6mm) |
| Stitch Length | 4 s.p.i. (6.2mm) |
| Work Space | 10" (258mm) |
| Needle | DBX1 |
| Bed Size | 7" x 18 7/8" (177mm x 477mm) |
| Stitch Type | 301 |
Catalogue
The Consew 7360R-7DD-SS documents Consew publishes, on their own site. They open in a new tab.
Open the catalogue (PDF)Open the instruction manual (PDF)
And the catalogues Consew publishes for their whole range.
The file is published and updated by the manufacturer; it is not copied here, so nobody downloads an outdated version.
Data sheets, photos, videos and specifications: Consew.
