Consew

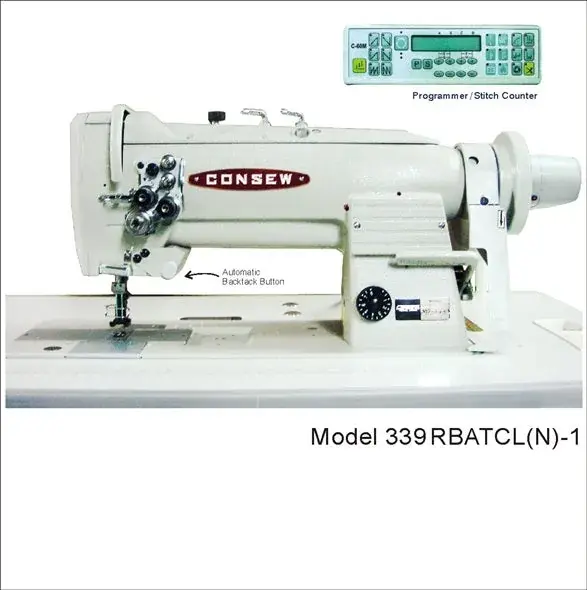

Consew 339RBATCWL(N)
Double Needle, Heavy Duty, Drop Feed, Needle Feed (Compound Feed), Alternating Presser Feet, Lockstitch Machine
Product features
Double Needle, Heavy Duty, Drop Feed, Needle Feed (Compound Feed), Alternating Presser Feet, Lockstitch Machine
With: Centra-lube Semi-automatic Lubrication System, Programmable Functions, Automatic Backtacking, Automatic Reverse Feed, Automatic Thread Trimmer, Automatic Needle Up/down, Pneumatic Foot Lift, Safety Clutch, Push Button Reverse
Specifications
| Number of Needles | 2 (Double) |
|---|---|
| Feeding Mechanism | Walking Foot |
| Workspace | Standard Workspace |
| Standard or Full Function | Auto Trimming, Backtack, Reverse |
| Speed, Max (S.P.M.) | 3000 |
| Stitch Length | 2 1/2" s.p.i. (10mm) |
| Work Space | 10" (258mm) |
| Needle | 135 x 17 |
| Bobbin | Metal 15041, Pre-wound S or U |
| Bed Size | 7" x 18 7/8" (178mm x 477mm) |
| Stitch Type | 301 |
| Needle Bar Stroke | 4 s.p.i. (8mm) |
| Standard Needle Spacing | 1/8" (3.2mm) - 1 1/2" (38.1mm) |
| Hook | 15040 |
| Foot Lift | By Hand: 25/64" (10mm) |
| By Knee | 1/2" (13mm) |
| Electric | 1 5/16" (33mm) |
Catalogue
The Consew 339RBATCWL(N) documents Consew publishes, on their own site. They open in a new tab.
Open the catalogue (PDF)Open the instruction manual (PDF)Open the parts book (PDF)
And the catalogues Consew publishes for their whole range.
The file is published and updated by the manufacturer; it is not copied here, so nobody downloads an outdated version.
Product information, photographs and specifications: Consew. No prices or stock here: ask us and we will get back to you.
