Consew
Consew 867RBL-D-7/32

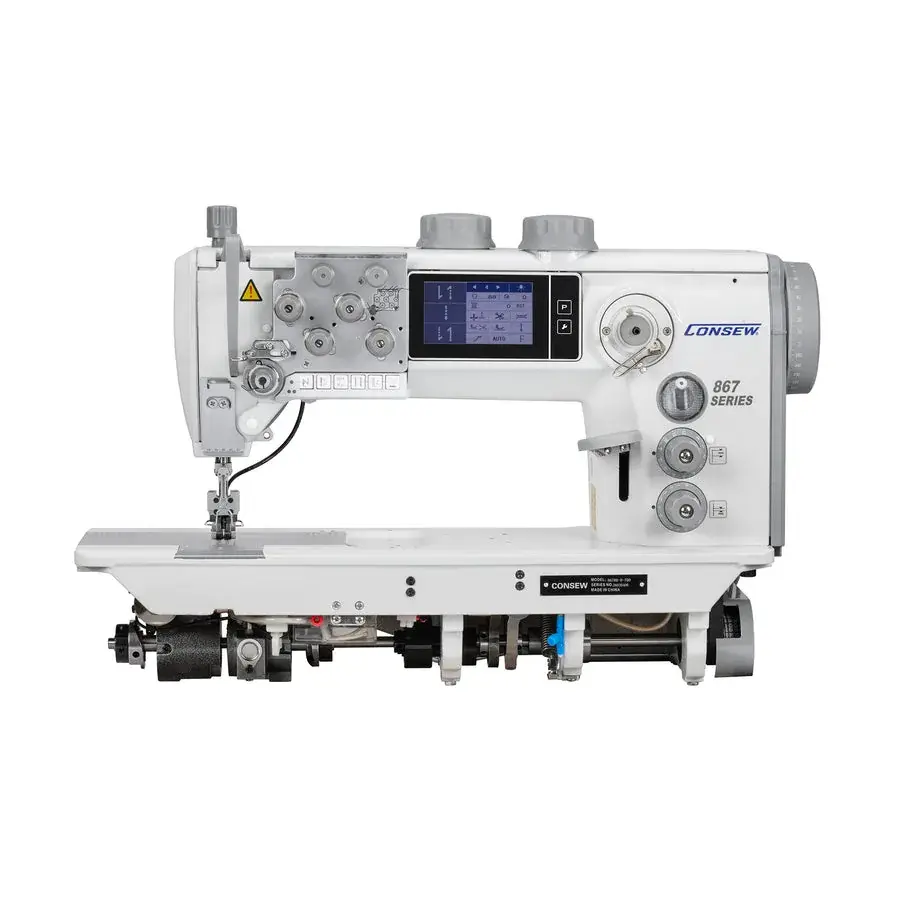

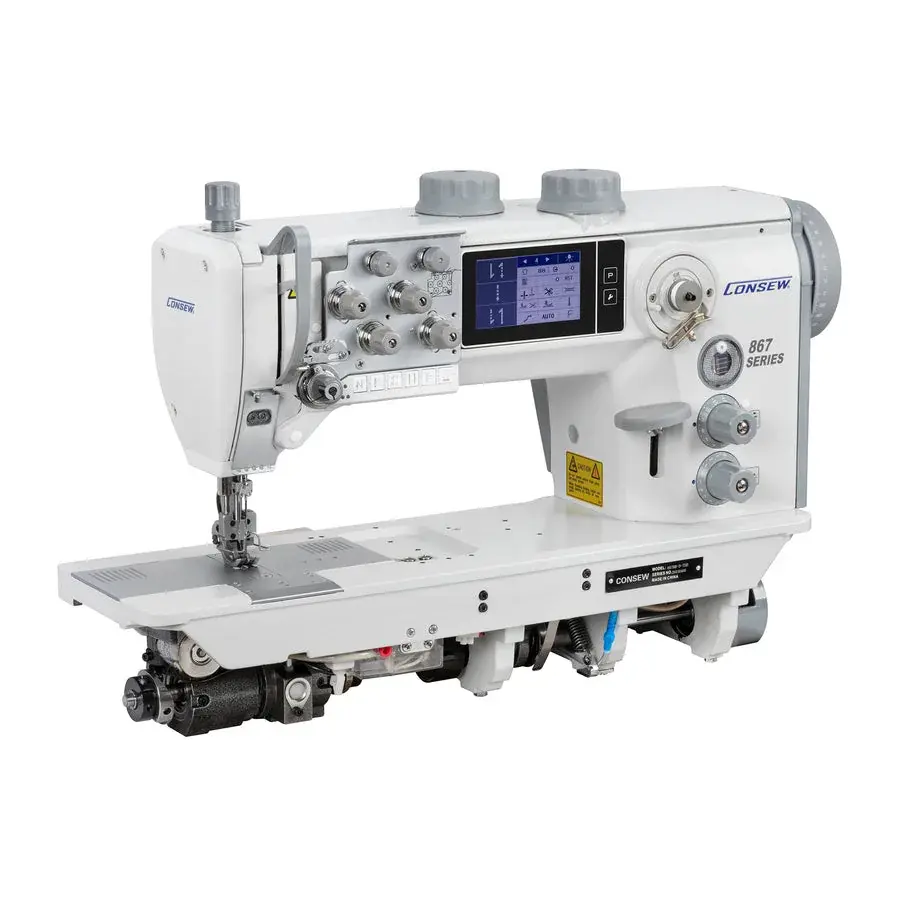

The Consew 867RBL-D-7/32 is a heavy-duty, double-needle, 18” long-arm walking foot lockstitch machine featuring a 32 mm U bobbin.
Product features
1 / 8
The Consew 867RBL-D-7/32 is a heavy-duty, double-needle, 18” long-arm walking foot lockstitch machine featuring a 32 mm U bobbin. It combines the extended workspace of the RBL series with double-needle operation and the larger 32 mm U bobbin configuration.
Specifications
| Models | 867RB-Series / 867 RBL-Series |
|---|---|
| Speed - s.p.m. | 3000 spm* |
| *Note | the RBL long arms operate at reduced speed |
| Max. Stitch Length | 9 mm |
| Manual Presser Foot Lift | 9 mm |
| Pneumatic Foot Lift | 20 mm maximum |
| Bobbins | 26 mm (M) and 32 mm (U) |
| Number of Needles | 1 or 2 |
| Needle Type | 134 - 135 |
| Dbl Needle Gauges | Stock: 4mm,6mm,8mm,10mm,12mm (also custom gauges of 3mm-70mm) |
| Air Pressure Required | 40 - 50 psi |
| Workspace RB | 13.2” x 4.72” (335 mm x 125 mm) |
| Workspace RBL | 18” x 4.72” (460 x 125mm) |
Catalogue
The Consew 867RBL-D-7/32 documents Consew publishes, on their own site. They open in a new tab.
And the catalogues Consew publishes for their whole range.
The file is published and updated by the manufacturer; it is not copied here, so nobody downloads an outdated version.
Product information, photographs and specifications: Consew. No prices or stock here: ask us and we will get back to you.
