Consew

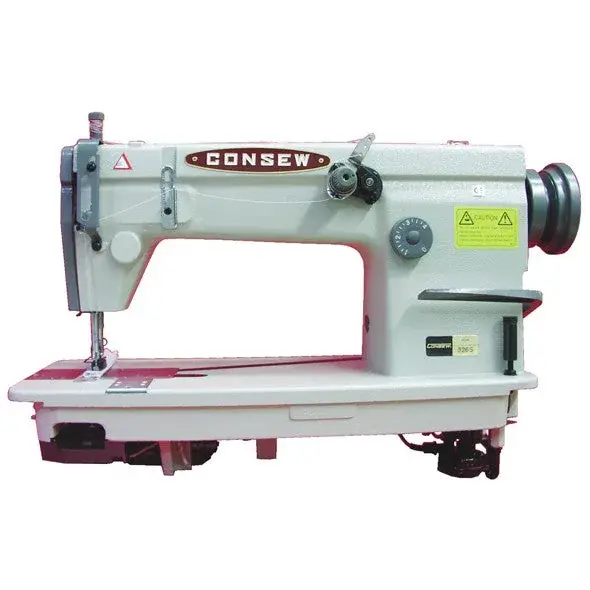

Consew 326DT-1
High Speed, Two Needle Tandem, Drop Feed, Heavy Duty, Double Chainstitch Machine
Product features
High Speed, Two Needle Tandem, Drop Feed, Heavy Duty, Double Chainstitch Machine
With : Automatic Lubrication System, Dial-Type Stitch Length Regulation, Cam-Type Take-Up Lever, Hinder Presser Foot
Specifications
| Number of Needles | 2 Tandem |
|---|---|
| Feeding Mechanism | Drop Feed |
| Workspace | Standard Workspace |
| Standard or Full Function | Standard Functions |
| Stitch Type | 401 |
| Speed, Max (S.P.M.) | 5600 |
| Max Stitch Length | 5-1/2 s.p.i. (4.7mm) |
| Needle Bar Stroke | 1-3/16" (30mm) |
| Needle Used | 149x7 |
| Work Space | 10" (258mm) |
| Bed Size | 7" x 18-7/8" (178mm x 478mm) |
| Clearance Under Foot | 5/16" (8mm) |
Catalogue
The Consew 326DT-1 documents Consew publishes, on their own site. They open in a new tab.
And the catalogues Consew publishes for their whole range.
The file is published and updated by the manufacturer; it is not copied here, so nobody downloads an outdated version.
Product information, photographs and specifications: Consew. No prices or stock here: ask us and we will get back to you.
