Product features
1 / 8

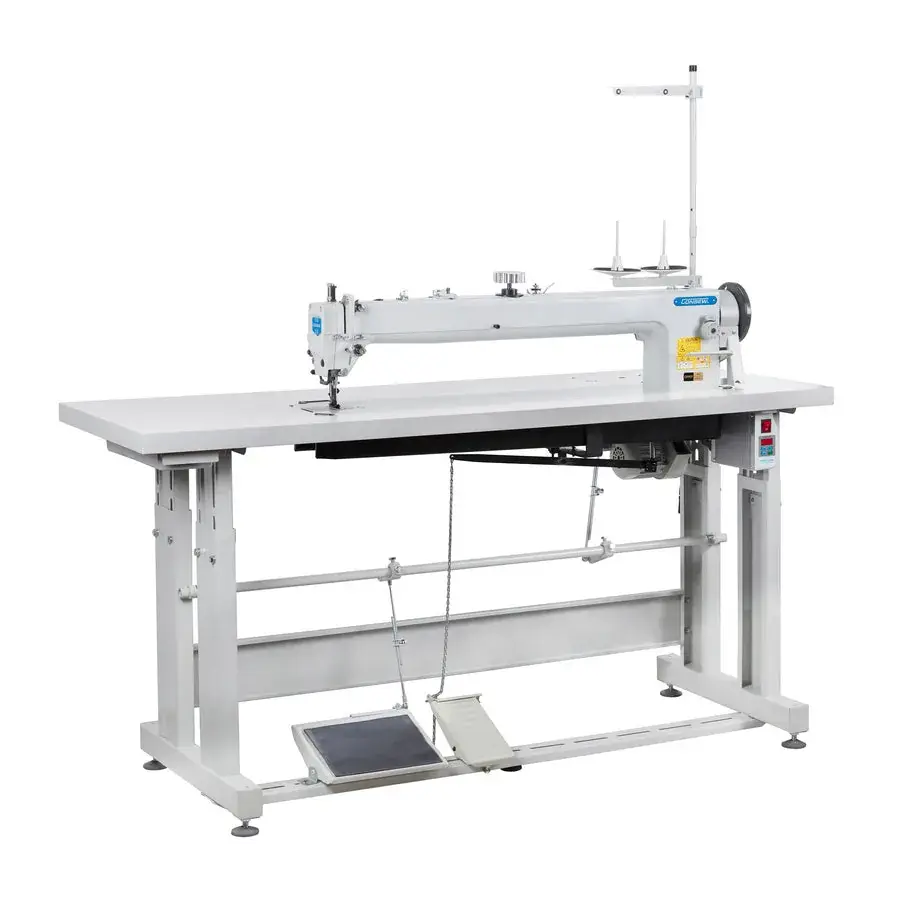

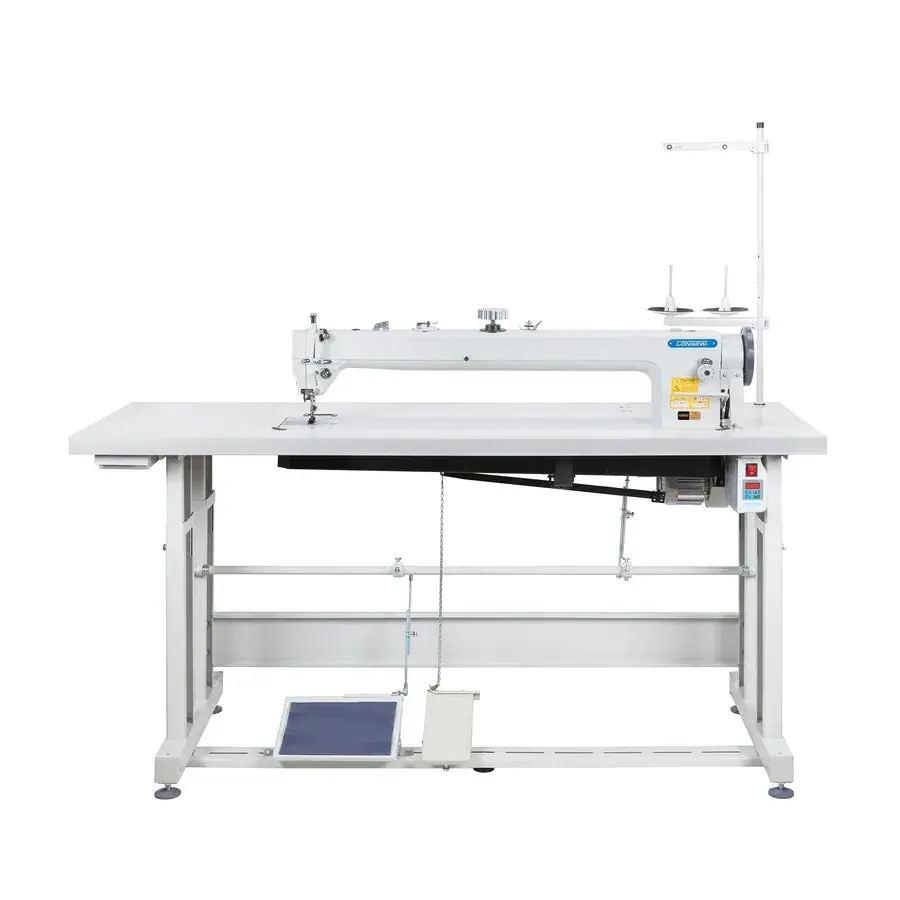

30-Inch Long-Arm, Heavy-Duty, Single Needle, Lockstitch, Triple Feed (Drop Feed, Needle Feed, and Alternating (Walking) Presser Feet) Machine
With : Oil Pump System with Pump, Oil Pan, and Adjustable Oil Flow; Adjustable Oil Gauge; Engageable Center Handwheel; Reverse; Large Horizontal Axis Hook and Side-Loaded Bobbin; Adjustable Upper Thread Tension; Locking Stitch Regulator; Built-In Bobbin Winder; Factory Built Solid Molded Casting
Applications
For sewing light to heavy-weight materials such as leather, vinyl, upholstery, synthetics, canvas, and various coated and laminated products.
Designed for stitching such products as auto, boat, and furniture upholstery, tarpaulins, covers, sails, tents, camping trailer covers, awnings, umbrellas, tops, bags, luggage, handbags, travel accessories, sports and camping equipment, wearing apparel, outdoor clothing, canvas shoes, slippers, orthopedic appliances, etc.
Features
Extra-long stitch: 3.6 S.P.I. (37mm)
Large bobbin: Bobbin can be changed without removing the object being sewn
Thread release finger: For heavy thread
Reverse stitching
Oil pump system: With pump, oil pan, and adjustable oil flow
Adjustable oil gauge
All gear-driven hook mechanism: Large horizontal axis hook
Simple adjustment: Permits raising and lowering of the center foot, allowing for sewing different thicknesses of material and ensuring positive stitching
Standard attachments: Easily installed

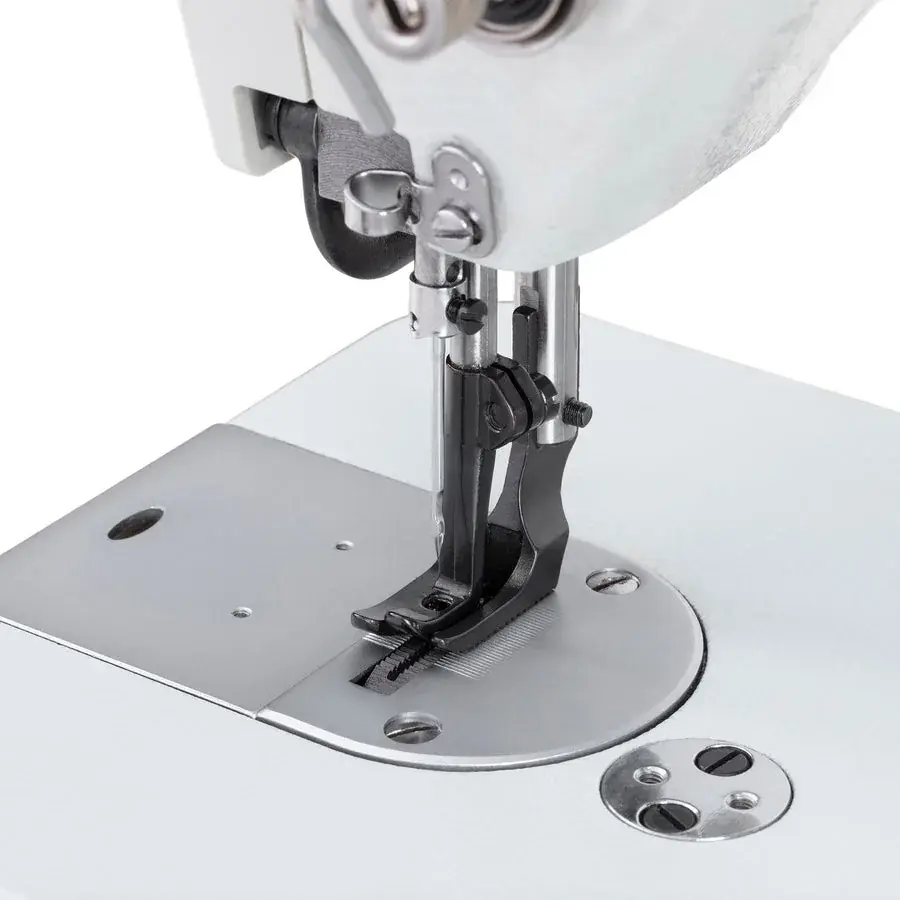

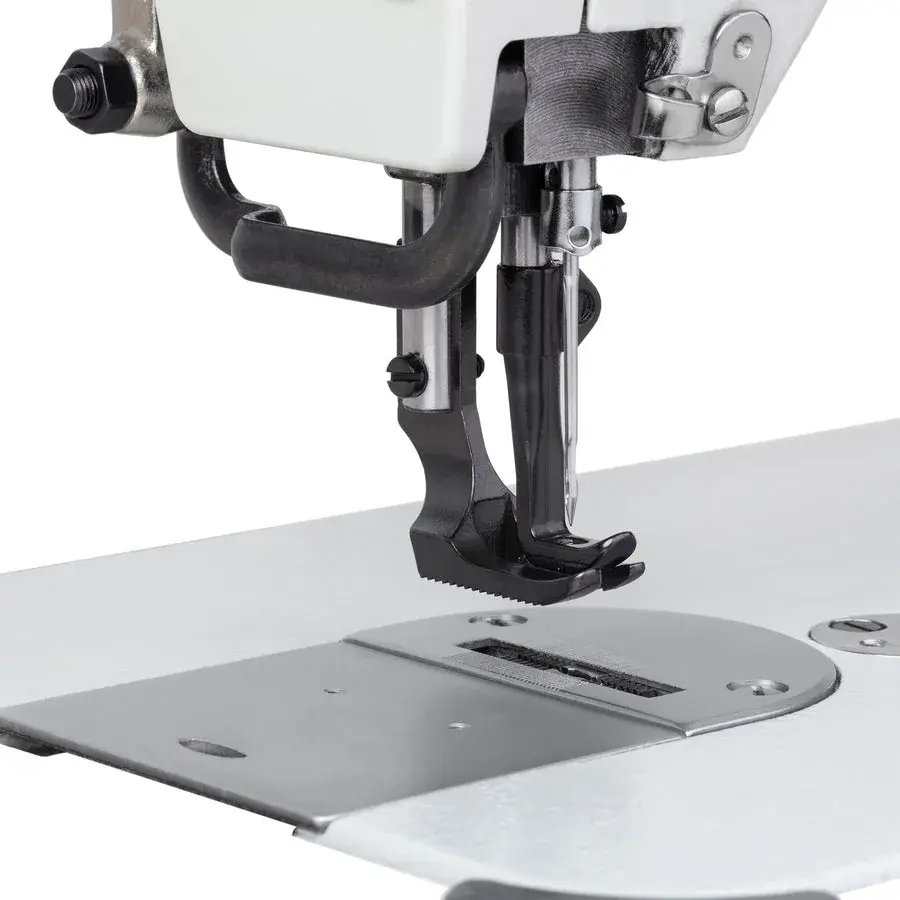

Compound feed, walking foot mechanism: Ensures even feeding of material
Adjustable presser foot climbing
Locking stitch regulator: Prevents changes in stitch length due to vibration
Long arm: Provides extra-large work area
Factory-built solid molded casting

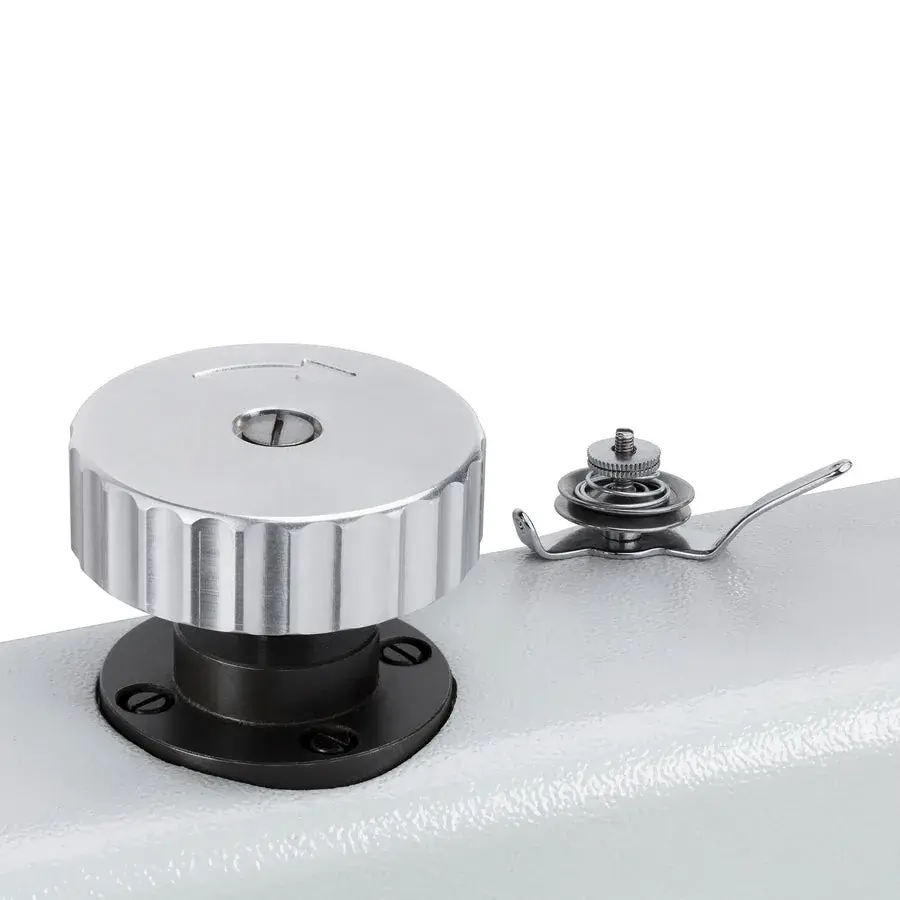

Built-in bobbin winder
Note: This machine does NOT have a safety clutch
Specifications
| Number of Needles | 1 (Single) |
|---|---|
| Feeding Mechanism | Walking Foot |
| Workspace | Long Arm |
| Standard or Full Function | Standard Functions |
| Speed, Max (S.P.M.) | 1800 |
| Stitch Length | 3.6 s.p.i. (37mm) |
| Work Space | 30" (762 mm) |
| Width of Cylinder Bed | 4-3/4" (120mm) |
| Needle | 135 x 17 |
| Stitch Type | 301 |
| Needle Bar Stroke | 1-29/64" (37 mm) |
| Hook | Large Lubricating |
| Presser Lift | By hand: 5/16" (8 mm), By foot: 5/8" (16 mm) |
Videos
Catalogue
The Consew 206RBL-30-1 documents Consew publishes, on their own site. They open in a new tab.
And the catalogues Consew publishes for their whole range.
The file is published and updated by the manufacturer; it is not copied here, so nobody downloads an outdated version.
Data sheets, photos, videos and specifications: Consew.
