Consew 867RBL-⁠7/32

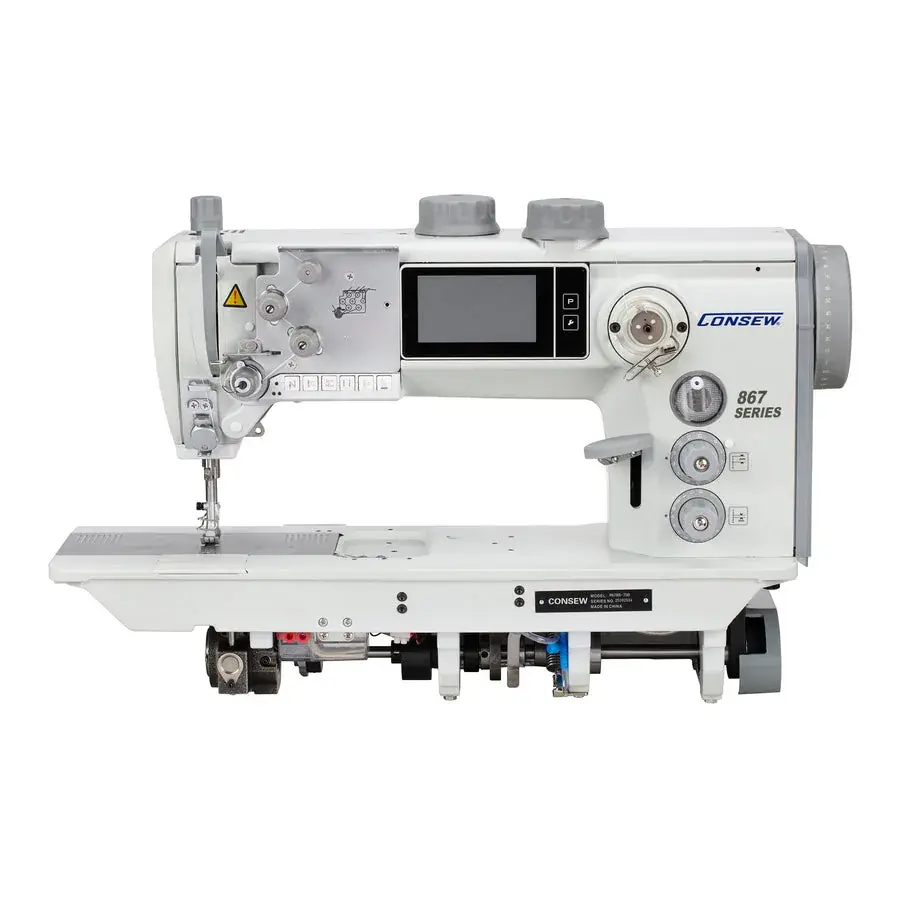

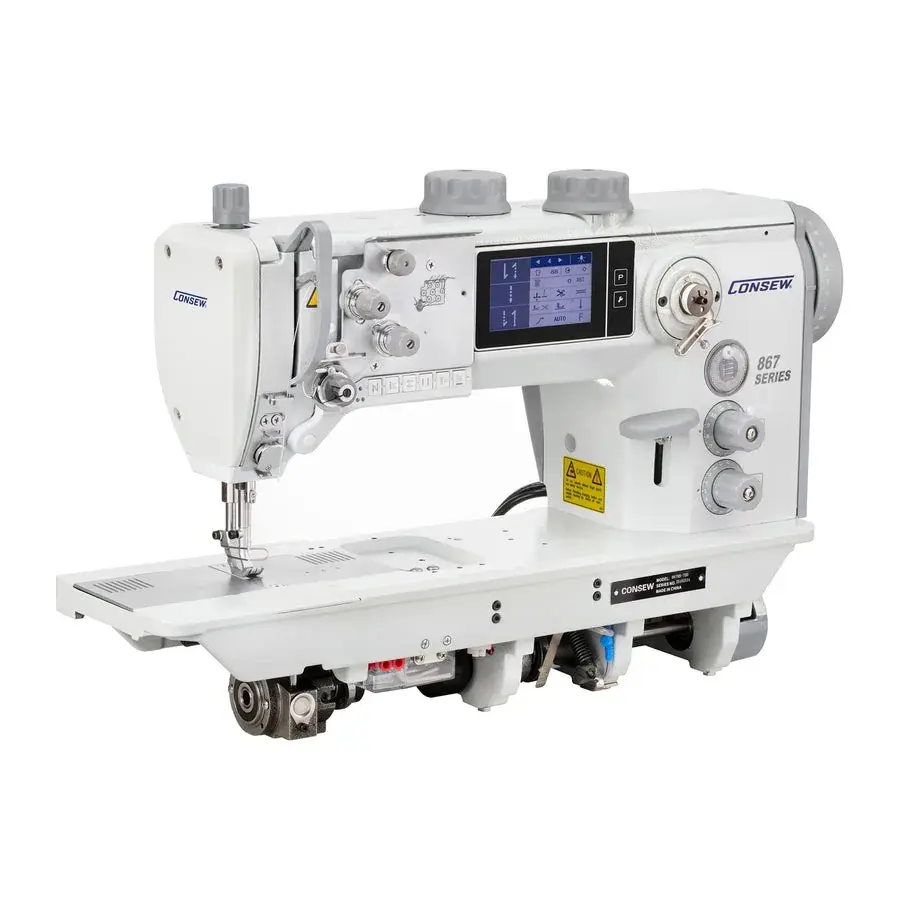

The Consew 867RBL-7/32 is a heavy-duty, single-needle, 18” long-arm walking foot lockstitch machine equipped with a 32 mm U bobbin. It provides the same core walking foot functionality and automatic features of the RBL series while using the larger 32 mm U bobbin configuration.

Applications

• For wide range of industries for all types of medium/heavy duty applications. Such as: Automotive, Upholstery, Marine, Tie-down and Sling, Harness, Parachute, Tents and Awnings, Apparel, Bedding, etc.

Features

• Full Auto-functions including: Auto Trim, Auto Footlift, Auto Reverse, Knee-operated Climbing Device, Needle Positioner, Step Control, Stitch Counting, Line Tacking.

• Auto Backtacking with up to 10 repeats and Manual Reverse

• Pattern Stitching with up to 11 preset patterns featuring variable stitch count and speed setting

• 13.2” Arm Length (867RB)

• 18” Long Arm Length (867RBL)

• Single or Double Needle

• Presserfoot Clearance up to 20mm

• Max. Speed 3000 spm (Maximum Speed is electronically governed)

• Large Bobbin sizes available: 26mm (M) or 32mm (U) bobbin capacity, with empty bobbin warning lights

• External Compressed Air source required (40 - 50 psi)

• Power: 220v Single phase (Optional 220 to 110v Adapter available)

• Hi-quality needle bearings for hi-speeds and long production runs
