Consew
Consew 7360RB-7DD-DSM

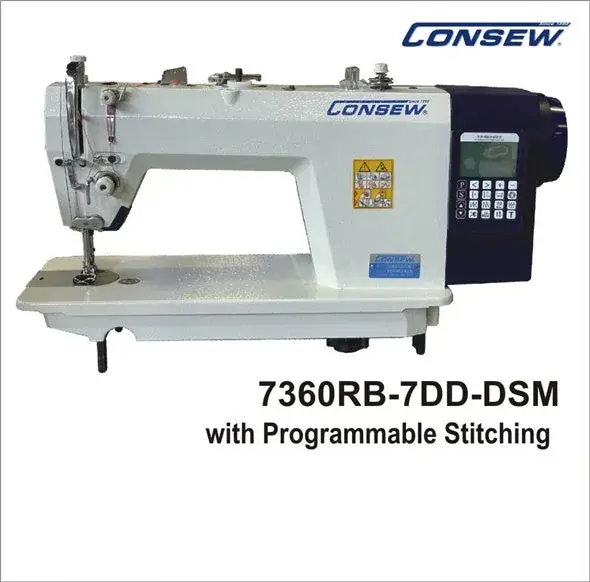

The 7360RB-7DD-DSM is A Direct Drive Computerized machine with Programmable stitching capabilites.
Product features
1 / 4
The 7360RB-7DD-DSM is A Direct Drive Computerized machine with Programmable stitching capabilites.
High Speed (*4000 spm,) Single Needle, Drop Feed, Lockstitch Machine. 5 spi, , DBX5 needle

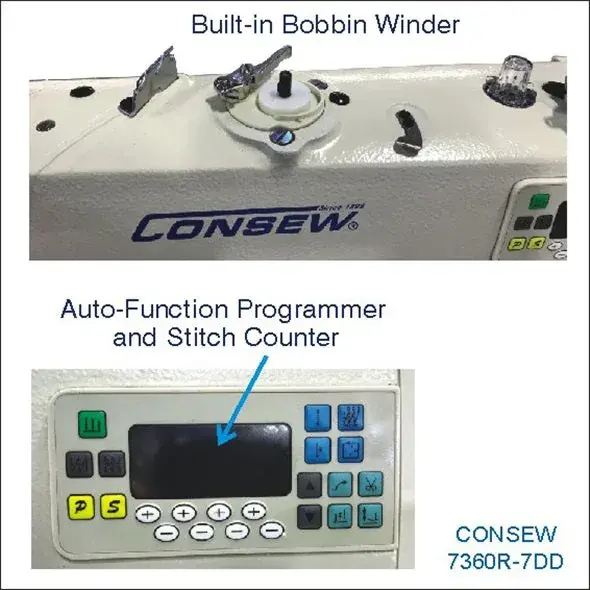

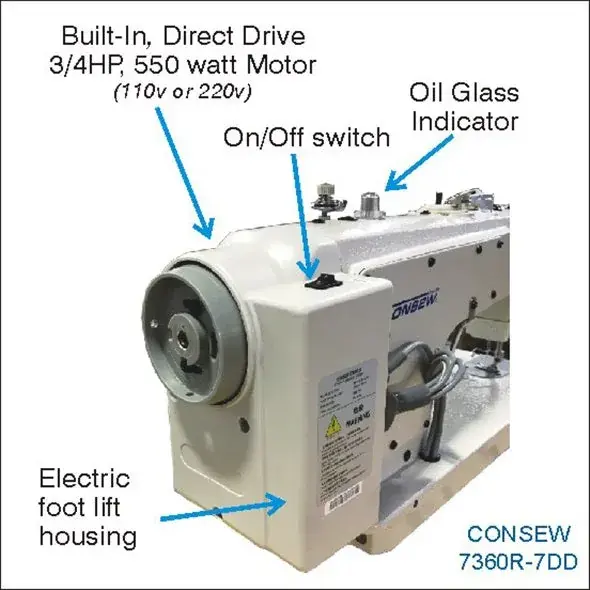

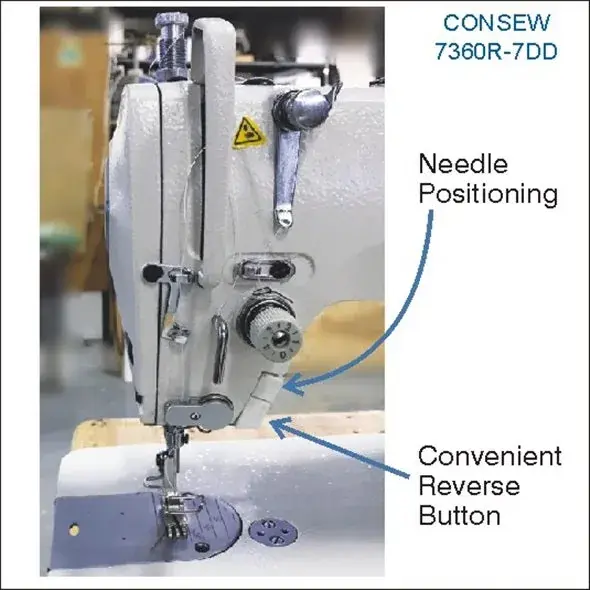

With: Automatic Reverse (backtacking); Auto-lubrication; Rotary Hook; Needle Positioning; Under Bed Thread Trimmer; Electric Thread Clamp (holds thread qfter thread trim); Electric Foot Lift; Stitch Counter; Built-in Bobbin Winder; Built-in, Direct Drive, 3/4hp, 550 Watt Motor @ 220vac
(optional transformer available to convert to 110V)
Specifications
| Number of Needles | 1 (Single) |
|---|---|
| Feeding Mechanism | Drop Feed |
| Workspace | Standard Workspace |
| Standard or Full Function | Automatic Functions |
| Speed, Max (S.P.M.) | 5000 |
| Motor Type | Direct Drive |
| Clearance Under Presser Foot | 1/4" (6mm), 1/4" (6mm) |
| Stitch Length | 4 s.p.i. (6.2mm) |
| Work Space | 10" (258mm) |
| Needle | DBX1 |
| Bed Size | 7" x 18 7/8" (177mm x 477mm) |
| Stitch Type | 301, 301 |
| Needle Bar Stroke | 1 1/4" (31.8mm), 1 1/4" (31.8mm) |
| Motor | Built in Direct Drive @ 220vac |
Catalogue
The Consew 7360RB-7DD-DSM documents Consew publishes, on their own site. They open in a new tab.
Open the catalogue (PDF)Open the instruction manual (PDF)
And the catalogues Consew publishes for their whole range.
The file is published and updated by the manufacturer; it is not copied here, so nobody downloads an outdated version.
Product information, photographs and specifications: Consew. No prices or stock here: ask us and we will get back to you.
