Consew
Consew P1560RBL-18-7DD/220
Two Needle, High Speed, Direct Drive, Walking Foot,
Product features
1 / 3

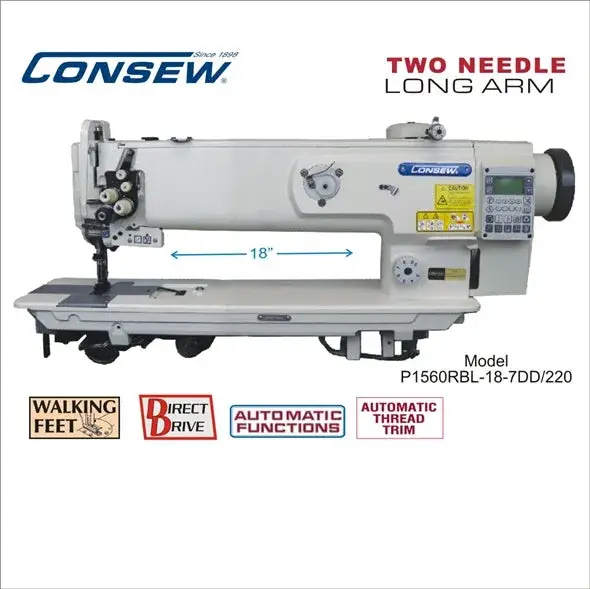

Two Needle, High Speed, Direct Drive, Walking Foot,
Lockstitch Machine. Comes in 14" 18" and 25" workspace
(see catalog sheet.) This is the 18" Long Arm version.

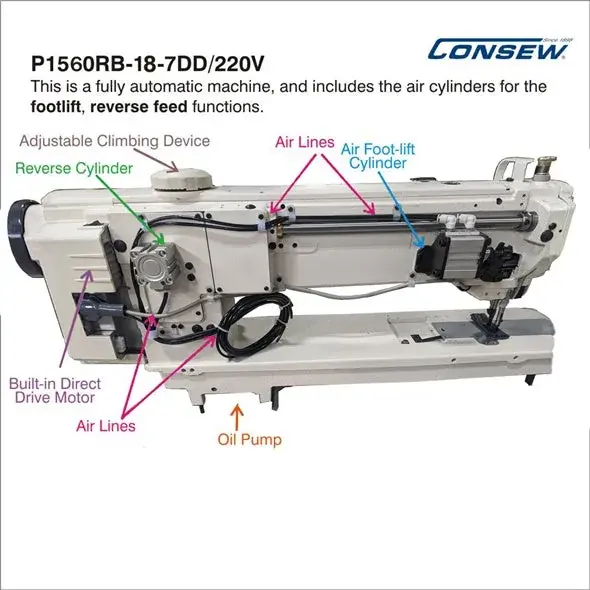

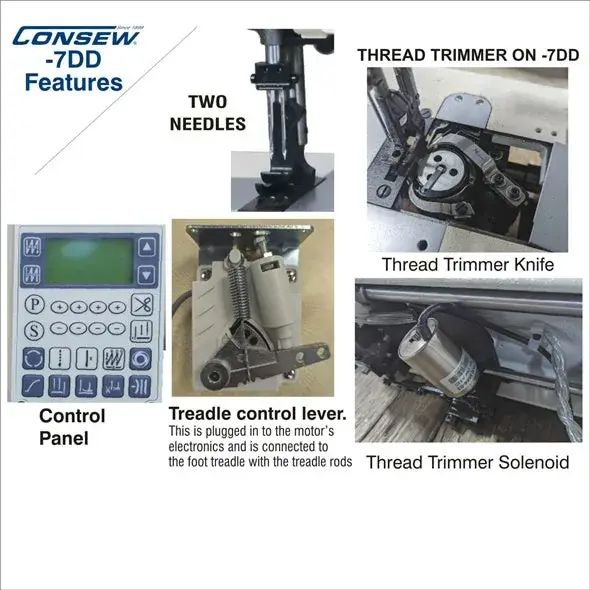

Comes with full auto functions (-7DD has automatic thread trim)
(also available is -DD without automatic thread trim)
Currently Available in 220VAC Version ONLY.
Specifications
| Speed, maximum | 2000 - 2500 spm (*Speed depends on thread, material, and operation) |
|---|---|
| Clearance Under Foot | 9/16" (14mm) |
| Needle | 135 x 17 (DPX17) |
| Needle Gauges | 1/4” to 1” (Custom gauges also available) |
| Stitch Length; Max. | 9mm Adjustment By Dial |
| Presser Foot Lift By Hand | 9 mm / By Knee: 16mm |
| Lubrication | Semi-Automatic |
| Bobbin | U or S |
| Power | 220 VAC |
Catalogue
The Consew P1560RBL-18-7DD/220 documents Consew publishes, on their own site. They open in a new tab.
Open the catalogue · Guía rápida (PDF)Open the catalogue (PDF)Open the instruction manual (PDF)
And the catalogues Consew publishes for their whole range.
The file is published and updated by the manufacturer; it is not copied here, so nobody downloads an outdated version.
Product information, photographs and specifications: Consew. No prices or stock here: ask us and we will get back to you.
