Consew

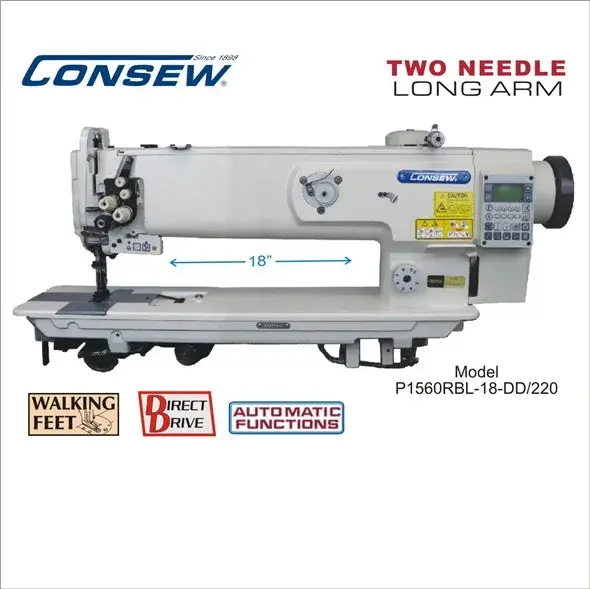

Consew P1560RBL-18-DD/220
Two-Needle, High Speed, Direct Drive, Walking Foot,
Product features
1 / 2
Two-Needle, High Speed, Direct Drive, Walking Foot,
Lockstitch Machine. Comes in 14" 18" and 25" workspace
This is the 18" Long Arm version.
The P1560RBL-18-DD/220 has automatic functions but without automatic thread trim. (The -7DD version has the automatic thread trim)
Currently Available in 220VAC Version ONLY.
Applications
Designed for automotive, marine, leather, canvas, and general upholstery
For sewing light to heavyweight fabric, canvas, leather, vinyl, synthetics, and various laminated and coated materials
Designed for stitching products such as auto, boat, and furniture upholstery, tarpaulins, covers, awnings, tents, umbrellas, handbags, luggage, travelware accessories, sports and camping equipment, wearing apparel, outdoor clothing, footwear, foundation garments, orthopedic appliances, etc
Features
Two Needles
18" Long Arm
Large Top Load Bobbins
Built-in Bobbin Winder
Walking Foot
Climbing Device
Roll-In, tucks the top thread under fabric when it starts
Automatic Foot Lift
Automatic Reverse
Semi-Automatic Lubrication
Servo motor connected direct to top shaft
Specifications
| Speed, maximum | 2000 - 2500 spm (*Speed depends on thread, material, and operation) |
|---|---|
| Clearance Under Foot | 9/16" (14mm) |
| Needle | 135 x 17 (DPX17) |
| Needle Gauges | 1/4” to 1” (Custom gauges also available) |
| Stitch Length; Max. | 9mm Adjustment By Dial |
| Presser Foot Lift By Hand | 9 mm / By Knee: 16mm |
| Lubrication | Semi-Automatic |
| Bobbin | U or S |
| Power | 220 VAC |
Catalogue
The Consew P1560RBL-18-DD/220 documents Consew publishes, on their own site. They open in a new tab.
Open the catalogue · Quick start guide (PDF)Open the catalogue (PDF)Open the instruction manual (PDF)
And the catalogues Consew publishes for their whole range.
The file is published and updated by the manufacturer; it is not copied here, so nobody downloads an outdated version.
Data sheets, photos, videos and specifications: Consew.
