Product features
1 / 8

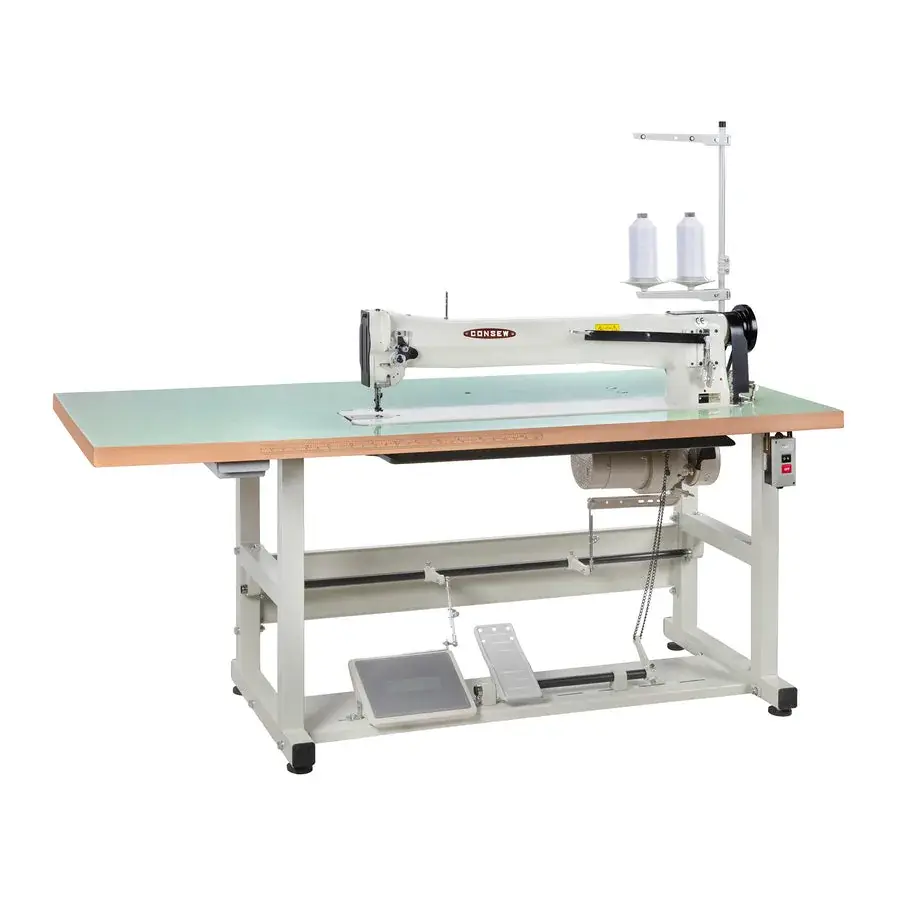

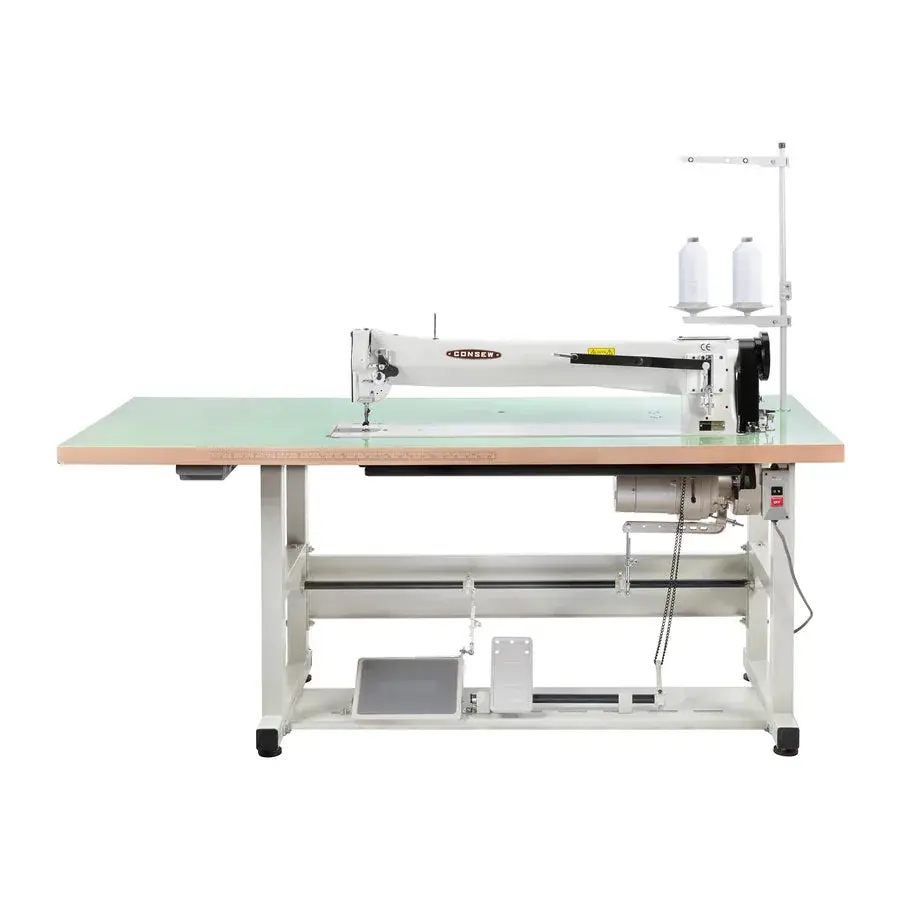

30 inch long-arm, heavy duty, single needle, lockstitch, triple feed (drop feed, needle feed and alternating (walking) presser feet) machines

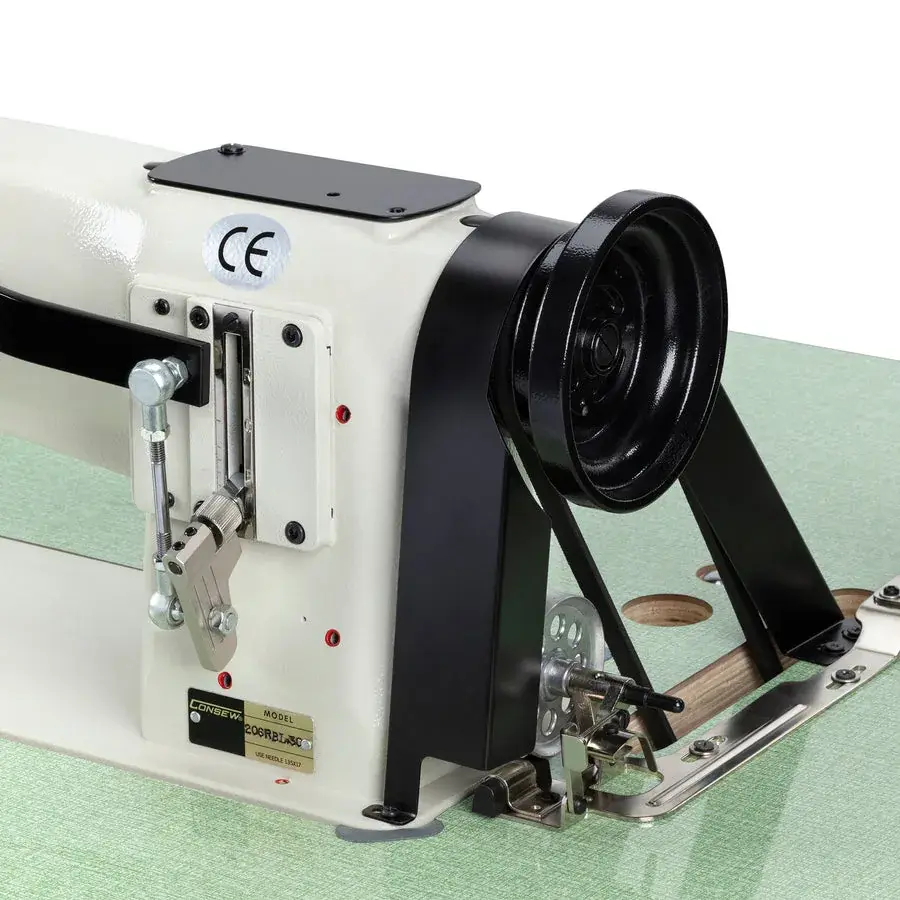

With: Centralized Arm Lubrication ; Engageable Center Handwheel; Reverse; Large Horizontal Axis Hook and Side-Loaded Bobbin; Adjustable Upper Thread Tension; Locking Stitch Regulator; Built-In Bobbin Winder; Factory Built Solid Molded Casting
Applications
For sewing light to heavy-weight materials like leather, vinyl, upholstery, synthetics, canvas, and various coated/laminated products
Designed for stitching products such as auto, boat, and furniture upholstery, tarpaulins, covers, sails, tents, camping trailer covers, awnings, umbrellas, tops, bags, luggage, handbags, travelware accessories, sports/camping equipment, wearing apparel, outdoor clothing, canvas shoes, slippers, orthopedic appliances, etc.
Features
Extra long stitch: 3.6 S.P.I. (37mm)
Large bobbin (can be changed without removing object being sewn)

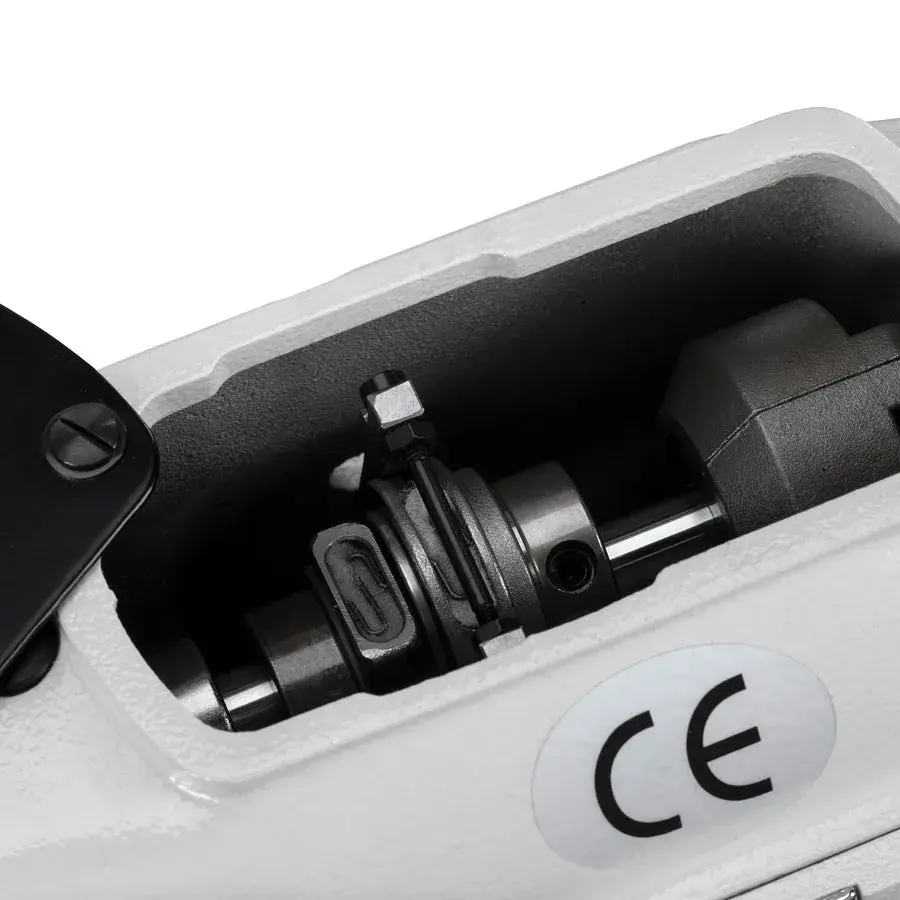

Centralized Arm Lubrication
Thread release finger for heavy thread
Reverse stitching
All gear-driven hook mechanism with large horizontal axis hook
Simple adjustment for raising/lowering the center foot for different material thicknesses

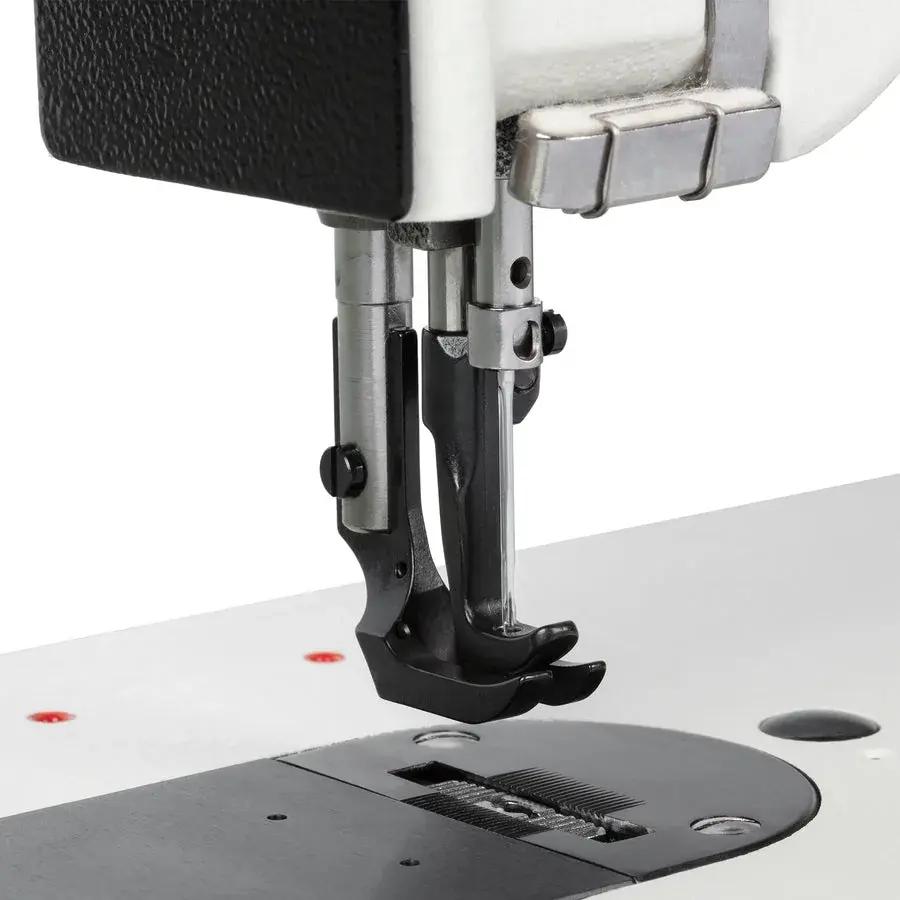

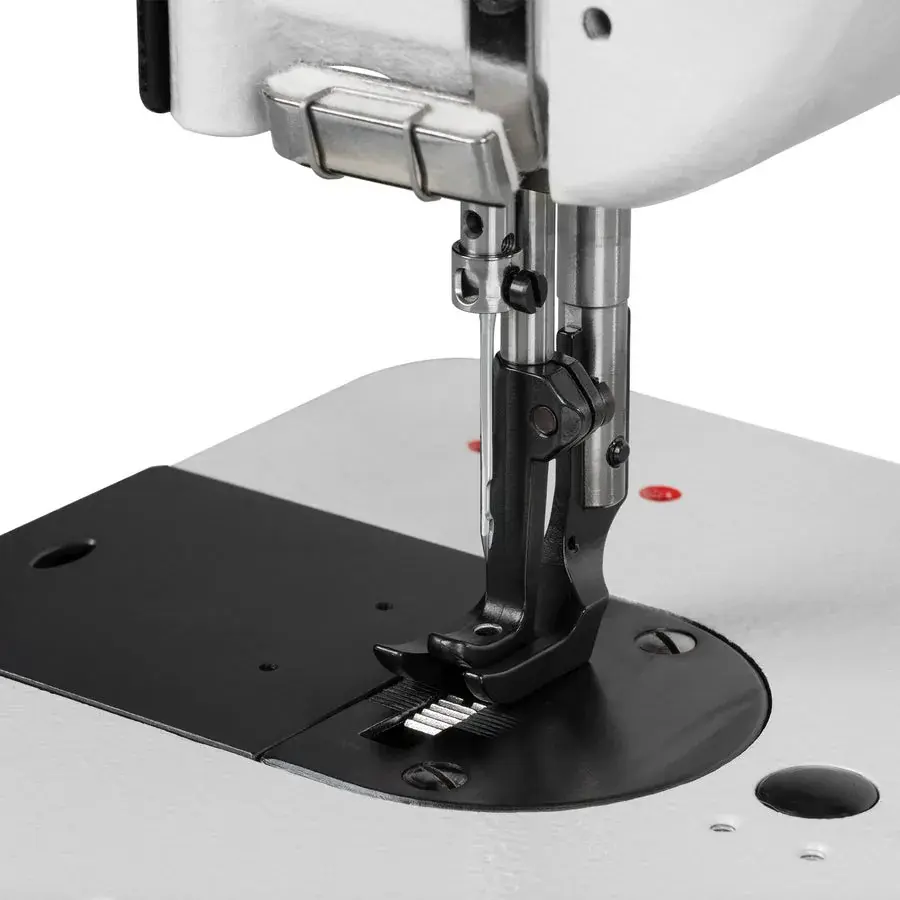

Compound feed, walking foot mechanism for even material feeding
Adjustable presser foot climbing
Locking stitch regulator to prevent changes in stitch length from vibration

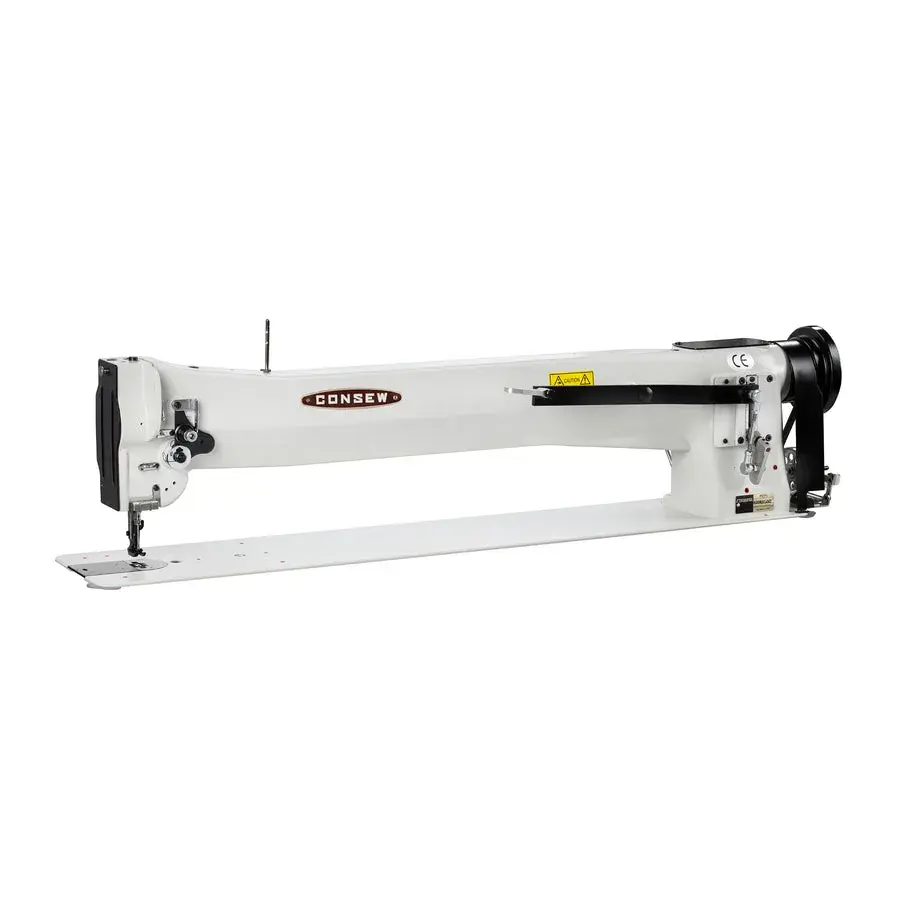

Long arm for extra-large work area
Factory built solid molded casting
Built-in bobbin winder
(Note: does NOT have a safety clutch)
Specifications
| Number of Needles | 1 (Single) |
|---|---|
| Feeding Mechanism | Walking Foot |
| Workspace | Long Arm |
| Speed, Max (S.P.M.) | 1800 |
| Stitch Length | 3.6 s.p.i. (37mm) |
| Work Space | 30" (762 mm) |
| Width of Cylinder Bed | 4-3/4" (120mm) |
| Needle | 135 x 17 |
| Stitch Type | 301 |
| Needle Bar Stroke | 1-29/64" (37 mm) |
| Hook | Large Lubricating |
| Presser Lift | By hand: 5/16" (8 mm), By foot: 5/8" (16 mm) |
Catalogue
The Consew 206RBL-30 documents Consew publishes, on their own site. They open in a new tab.
Open the catalogue (PDF)Open the instruction manual (PDF)Open the parts book (PDF)
And the catalogues Consew publishes for their whole range.
The file is published and updated by the manufacturer; it is not copied here, so nobody downloads an outdated version.
Data sheets, photos, videos and specifications: Consew.
