Consew

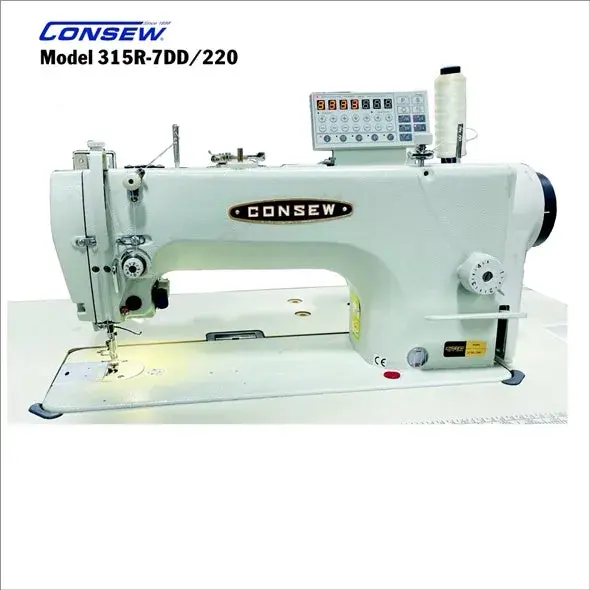

Consew 315R-7DD/220
Direct Drive, High Speed, Single Needle, Needle Feed, Lockstitch Machine
Product features
1 / 3
Direct Drive, High Speed, Single Needle, Needle Feed, Lockstitch Machine

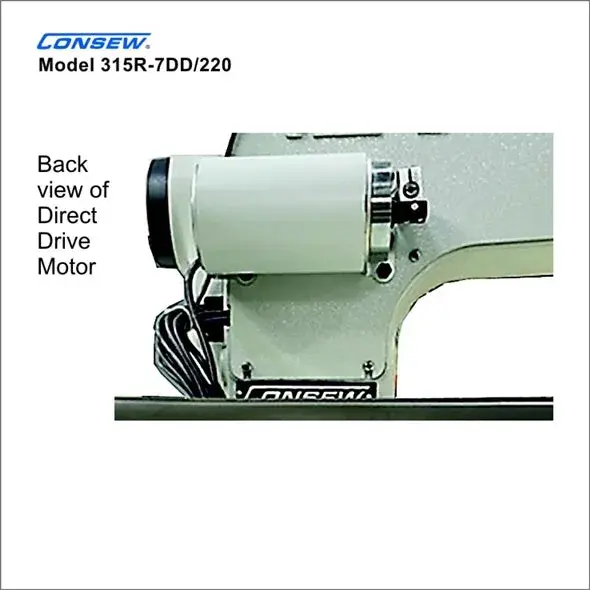

With : Fully automatic lubrication with recirculating high pressure pump and oil glass indicator; Noise and vibration absorbing table mounting; Treadle controlled foot lifter; Automatic reverse; Auto-lubrication rotary hook; Under bed thread trimmer; Needle positioning; Electric and manual foot lift; Built-in stitch counter; Locking stitch regulator; Built-in bobbin winder; Built-in LED light; Built-in 3/4HP, 550 watt Direct Drive Motor - 220v; Electric thread clamp ( holds thread after thread trimming)

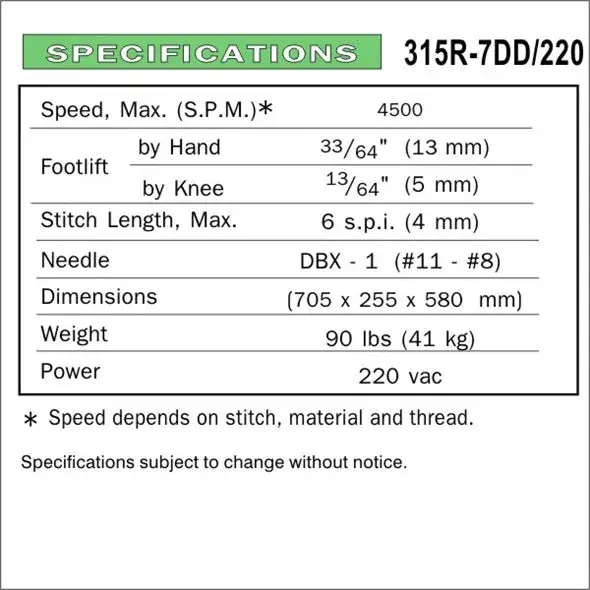

Specifications
| Number of Needles | 1 (Single) |
|---|---|
| Feeding Mechanism | Needle Feed |
| Workspace | Standard Workspace |
| Standard or Full Function | Full Functions |
| Speed, Max (S.P.M.) | 4500 |
| Clearance Under Presser Foot | Hand 33/64" (13 mm), Knee 13/64" (5 mm) |
| Stitch Length | 6.4 s.p.i. (4mm) |
| Work Space | 10" (254mm) |
| Needle | DBX - 1 (#11 - #8) |
| Bobbin | Pre-Wound L |
| Bed Size | 7" x 18 7/8" (178mm x 479mm) |
| Lubrication | Fully Automatic |
| Electric | 220 vac |
Catalogue
The Consew 315R-7DD/220 documents Consew publishes, on their own site. They open in a new tab.
Open the catalogue (PDF)Open the instruction manual (PDF)
And the catalogues Consew publishes for their whole range.
The file is published and updated by the manufacturer; it is not copied here, so nobody downloads an outdated version.
Product information, photographs and specifications: Consew. No prices or stock here: ask us and we will get back to you.
