Consew 767RB-⁠7DD/32

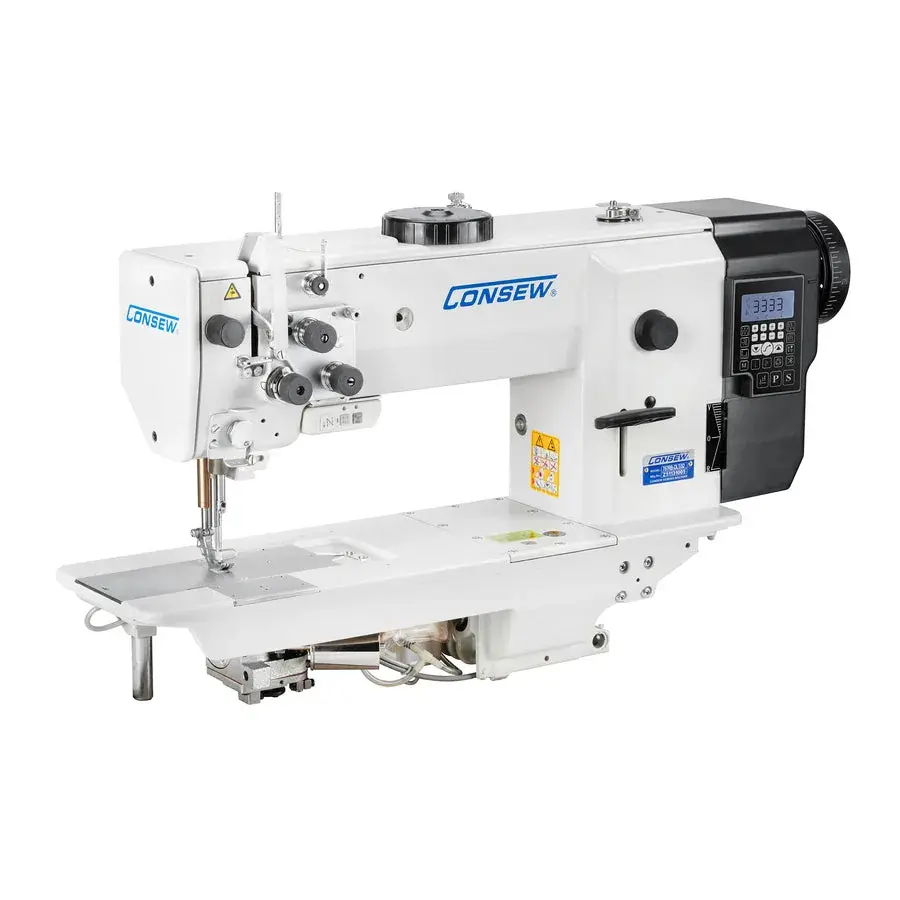

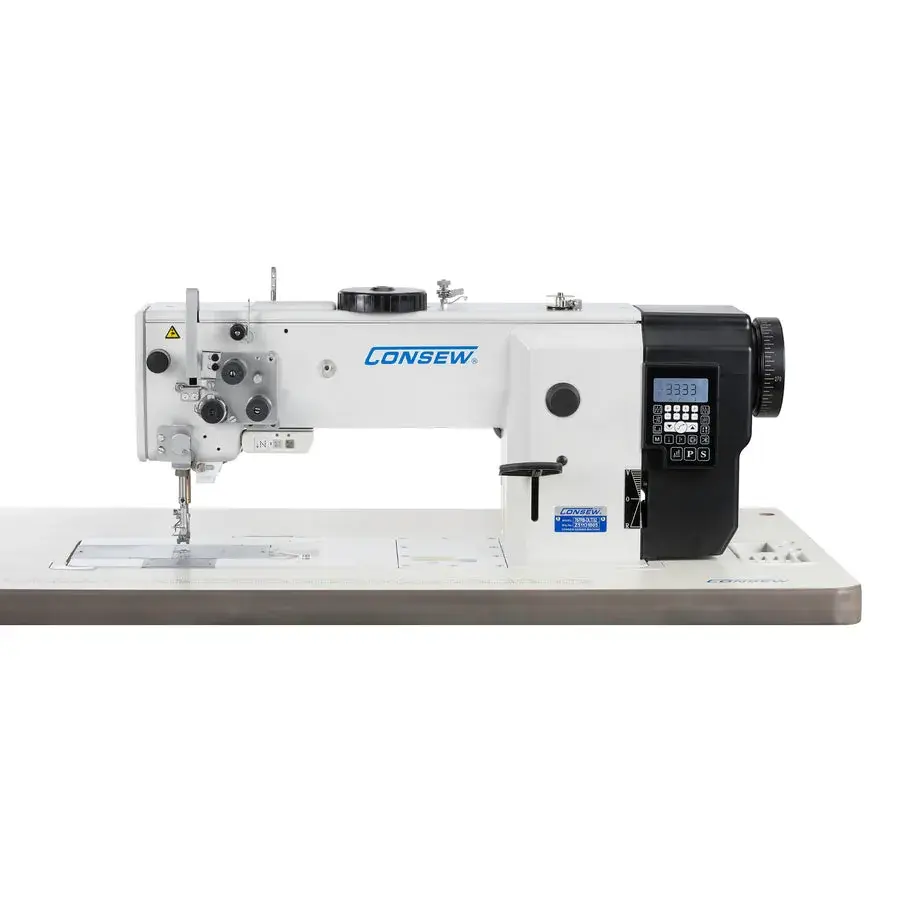

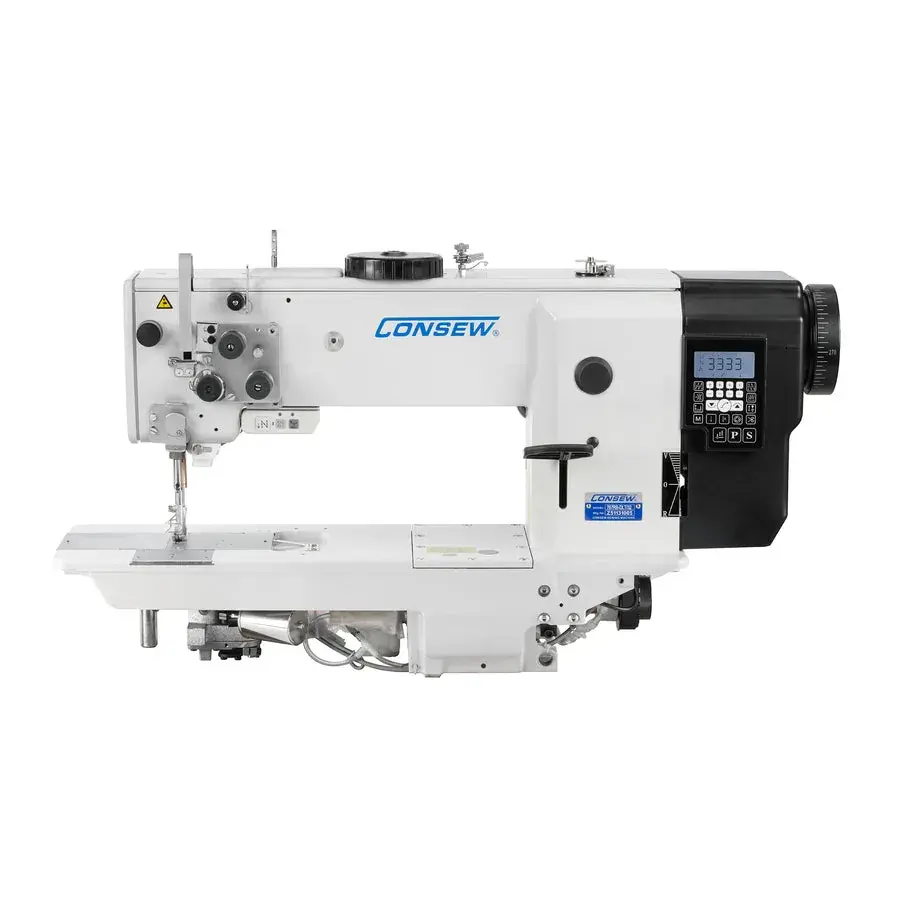

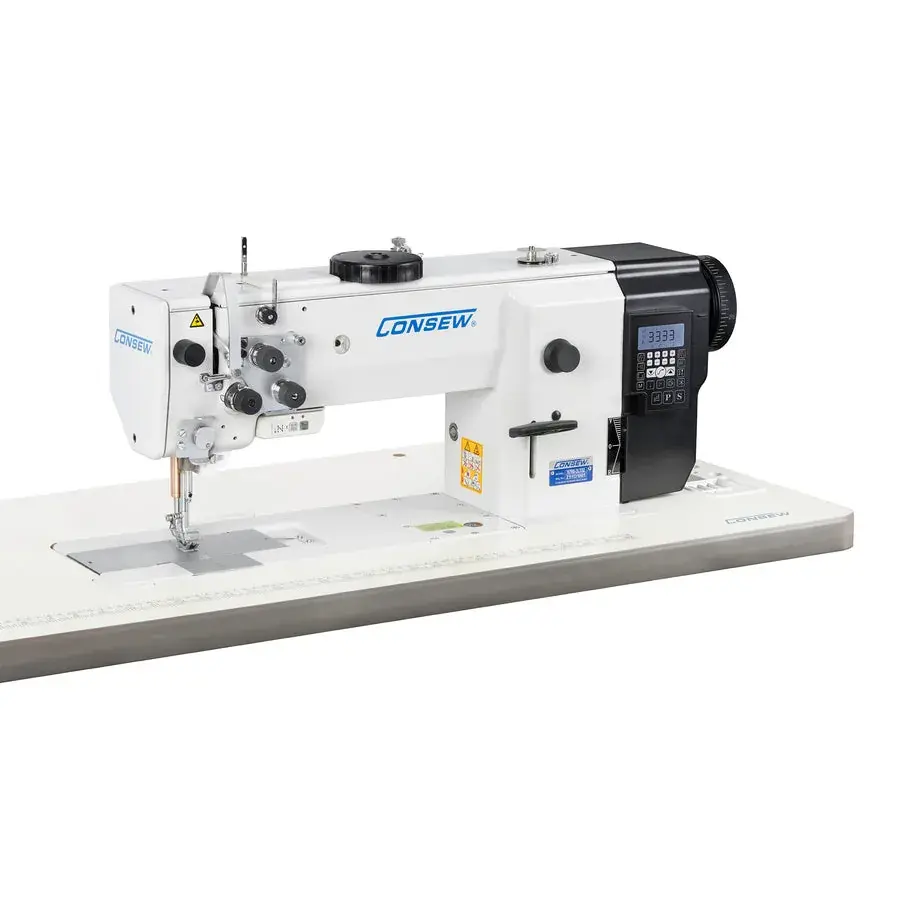

The 767RB-7DD/32 is a high-performance, single-needle walking foot machine designed for medium and heavy-duty applications. Featuring a 13.6" arm length and 5.1" vertical clearance, it provides ample workspace for handling large and bulky materials. The U bobbin allows for extended sewing time with fewer bobbin changes, making it ideal for high-production environments.

Equipped with a direct drive motor and a full range of automatic functions, including auto thread trimming, programmable backtacking, auto foot lift, and pattern stitching, this model enhances efficiency and consistency. Additional features such as a digital control panel, needle positioner, stitch counting, and line tacking provide precise control and ease of operation. An external compressed air source (40–50 psi) is required, and the standard configuration operates on 220V, with an optional transformer available for 110V use.

Applications

• Heavy-duty sewing operations

• Upholstery and furniture manufacturing

• Automotive and marine interiors

• Leather goods and thick materials

• High-production environments requiring fewer bobbin changes

Features

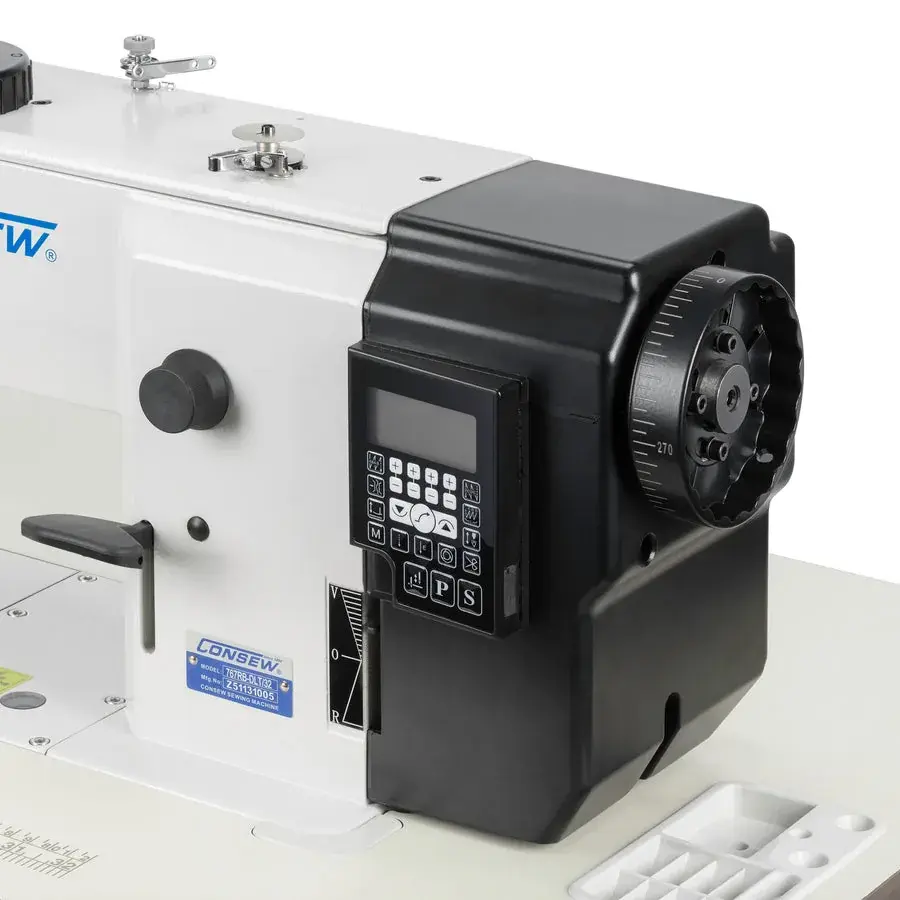

• Direct Drive

• Advanced Oiling System

• 13.6” Arm Length with 5.1” Vertical Clearance

• Presser Foot Clearance up to 16mm.

• High needle bar stroke

• Convenient one-button high step

• Full Auto-functions including: Auto trimmer, auto reverse, auto footlift, climbing device, needle positioner, stitch counting, line tacking, and pattern stitching.

• External compressed air source required (40 - 50 psi)

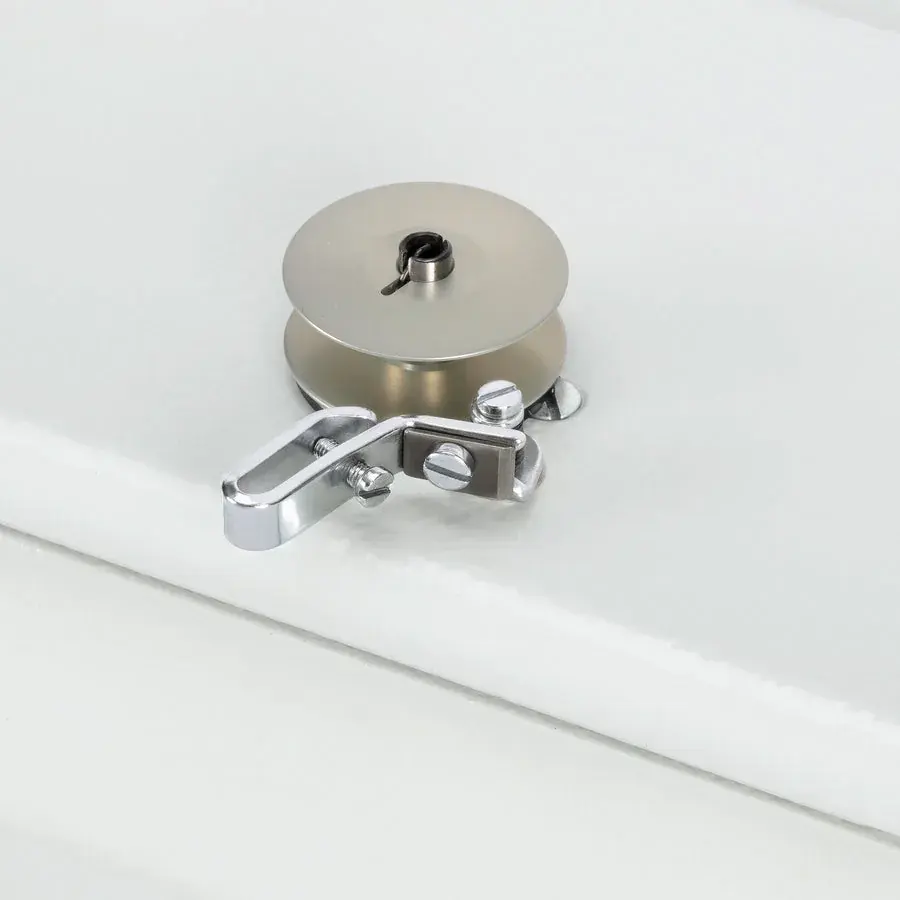

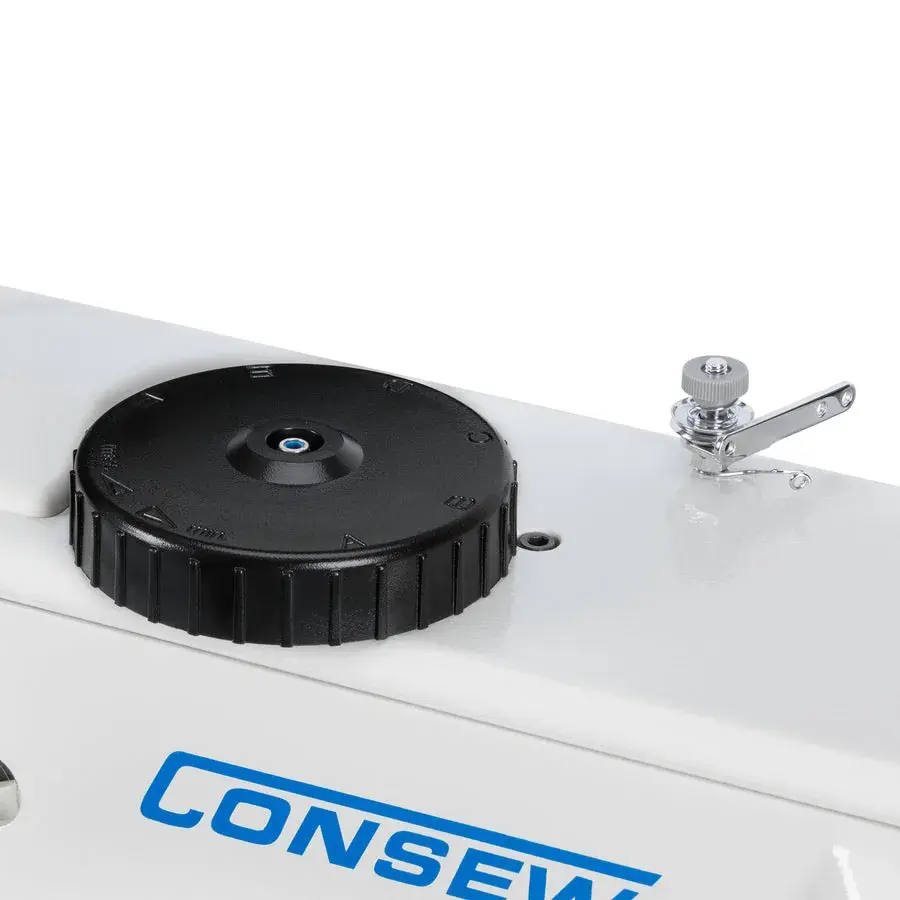

• Bobbin winder built-in

• Adjustable parameter settings

• Convenient knuckle switches on arm: Reverse, Auto back-tack pause, High step.

• Safety clutch

• Power: 220v single phase

• Automatic programmable beginning and ending Backtacking

• LED under lighting built in

• Hi-quality metal bearings for hi-speed and long production runs
