Consew
Consew 7360RB-7DD-1

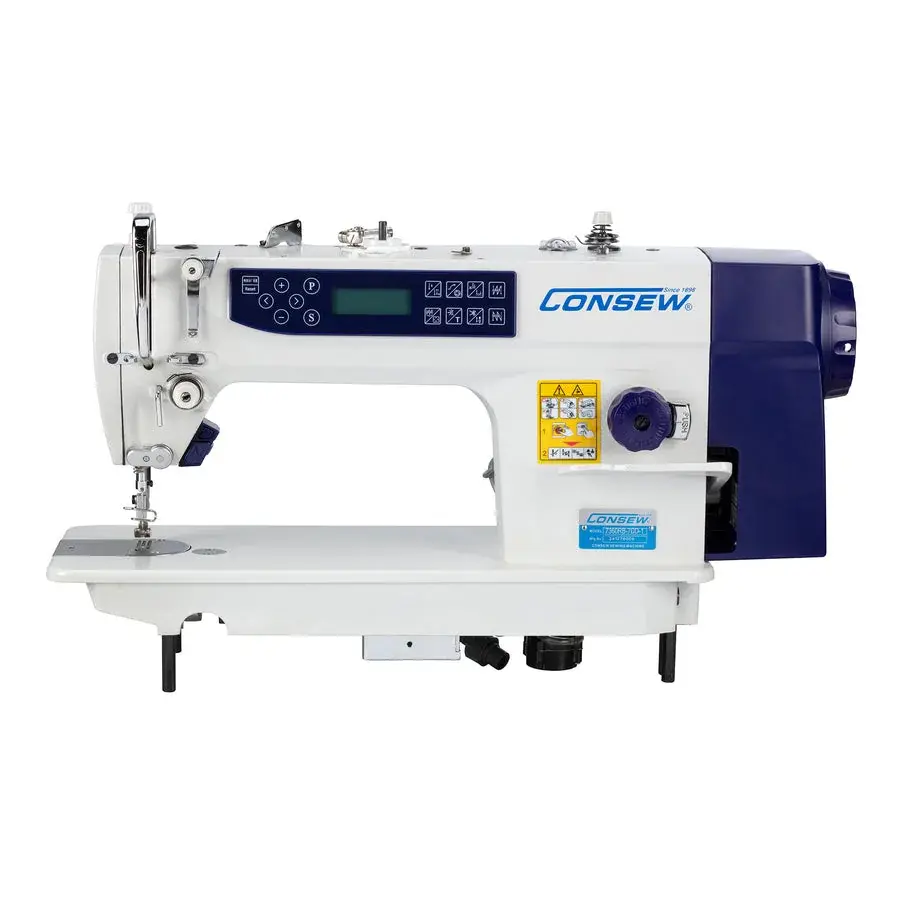

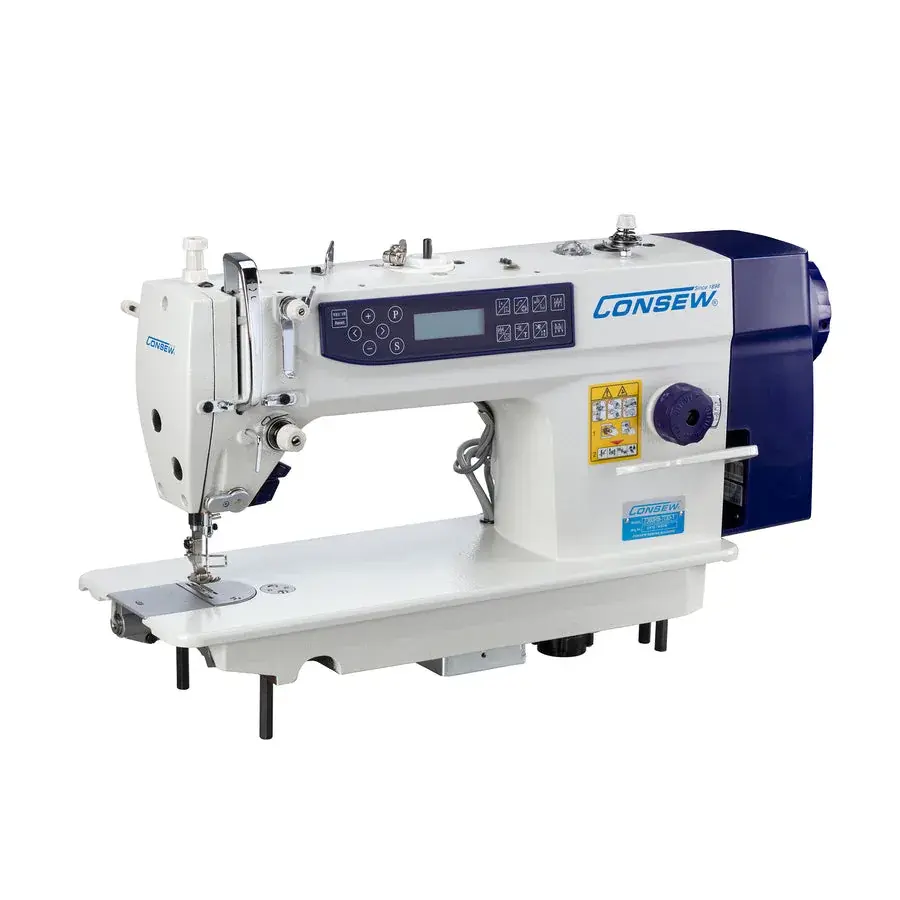

The 7360RB-7DD-1 is a High Speed, Single Needle, Lockstitch Machine, with Full Automatic Functions, Servo Motor Direct To Top Shaft, Needle Positioning, Large Bobbin
Product features
1 / 8
The 7360RB-7DD-1 is a High Speed, Single Needle, Lockstitch Machine, with Full Automatic Functions, Servo Motor Direct To Top Shaft, Needle Positioning, Large Bobbin
Specifications
| Number of Needles | 1 (Single) |
|---|---|
| Feeding Mechanism | Drop Feed |
| Workspace | Standard Workspace |
| Standard or Full Function | Automatic Functions |
| Speed, Max (S.P.M.) | 3500 |
| Motor Type | Direct Drive |
| Clearance Under Presser Foot | 1/4" (6mm) |
| Stitch Length | 3-1/2 s.p.i. (7mm) |
| Work Space | 10" (258mm) |
| Needle | 135 X 5 |
| Bed Size | 7" x 17-1/8" (177mm x 477mm) |
| Stitch Type | 301 |
| Weight | 150 lbs (68kg) |
| Needle Bar Stroke | 1-1/4" (31.8mm) |
Catalogue
The Consew 7360RB-7DD-1 documents Consew publishes, on their own site. They open in a new tab.
Open the catalogue (PDF)Open the instruction manual (PDF)Open the parts book (PDF)
And the catalogues Consew publishes for their whole range.
The file is published and updated by the manufacturer; it is not copied here, so nobody downloads an outdated version.
Product information, photographs and specifications: Consew. No prices or stock here: ask us and we will get back to you.
